Product Summary:
 Up to 35ppm Colour & Mono
Up to 600 x 2400 dpi Print
250 Sheets Input Tray
8.76cm LCD Touch Screen
Automatic 2-Sided Printing
USB, Network & Wireless
USB, Network & Wireless
Product Description:

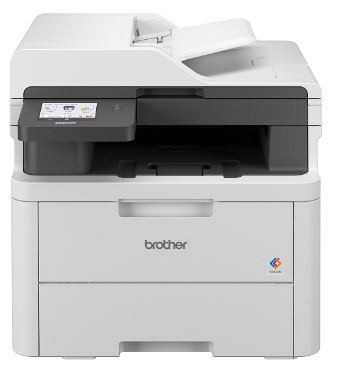

Compact Colour LED 3-in-One Printer
Combining outstanding performance with fast print speeds, minimal maintenance, and long-lasting supplies. The compact, whisper-quiet DCP-L3560CDW has been expertly engineered to feature the latest industry-standard security. Be confident that this colour LED will meet the needs of your home or small office with ease.
Quiet without compromise
Engineered to print quietly while delivering speeds up to 25% faster than the previous generation, so you can print continuously without distraction and focus on your work.
Designed to go the distance
Built to perform for longer, made from robust and hard-wearing materials and supported by outstanding service as standard. Delivers uncompromised performance at all times
Basic Specs
FUNCTIONS Print,Scan,Copy
PRINTER TYPE Laser Printer
PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT) 410 mm x 444 mm x 401 mm
PRINT SPEED
Up to 26 (Mono) / Up to 26 (Colour) ppm (A4)
Up to 27 (Mono) / Up to 27 (Colour) ppm (Letter)
PAPER TYPE Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
PAPER SIZE A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
MAXIMUM PAPER CAPACITY Up to 250 sheets of 80 gsm plain paper
WARRANTY 1 year Return to Base Warranty
Print
RESOLUTION 600 x 600 dpi, 2,400 dpi class (600 x 2400) quality
2-SIDED - PAPER TYPE Plain Paper, Thin Paper, Recycled Paper
2-SIDED - PAPER SIZE A4
Print Media
PAPER INPUT - PAPER TRAY #1 - PORTRAIT A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper)
PAPER INPUT - PAPER TRAY #1 - MAXIMUM PAPER CAPACITY Up to 250 sheets of 80 gsm plain paper
PAPER INPUT - MANUAL FEED SLOT - PORTRAIT
Width: 76.2 to 216 mm (3.0" to 8.5")
Length: 116 to 355.6 mm (4.57" to 14")
Envelope: COM-10, DL, C5, Monarch
PAPER INPUT - MANUAL FEED SLOT - MAXIMUM PAPER CAPACITY Up to 1 sheet
PAPER OUTPUT Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Document Sizes
ADF (PAPER HANDLING) 105 mm to 215.9 mm (Width), 147.3 mm to 355.6 mm (Length)
SCANNER MAXIMUM DOCUMENT SIZE Up to 215.9 mm (Width), Up to 300 mm (Length)
Copy
COLOUR Yes
MONOCHROME Yes
COPY WIDTH
A4 (ADF/FB): Up to 204 mm
Letter (ADF/FB): Up to 210 mm
ENLARGE/REDUCE 25 to 400% (in increments of 1%)
RESOLUTION Up to 600 x 600 dpi
Connectivity
Hi-Speed USB 2.0
Ethernet 10Base-T/100Base-TX/1000Base-T
Wireless LAN IEEE 802.11a/b/g/n (Infrastructure), IEEE 802.11a/g/n (Wi-Fi Direct)
Scan
COLOUR SCANNING Yes
MONOCHROME Yes
COLOUR DEPTH - INPUT 48 bit Colour Processing
COLOUR DEPTH - OUTPUT 24 bit Colour Processing
GREYSCALE - INPUT 16 bit Colour Processing
GREYSCALE - OUTPUT 8 bit Colour Processing
RESOLUTION - INTERPOLATED Up to 19200 x 19200 dpi (interpolated) (Windows Only)
RESOLUTION - SCANNER GLASS Up to 1200 x 1200 dpi
RESOLUTION - ADF Up to 600 x 600 dpi
SCANNING WIDTH - SCANNER GLASS Up to 204/210 mm (A4/Letter)
Display & Memory
DISPLAY 8.76cm (3.5") Colour Touchscreen LCD
MEMORY CAPACITY 512 MB
Weight
WEIGHT 20.2 kg
Operation
POWER SOURCE 220 - 240 V AC 50/60 Hz
POWER CONSUMPTION - COPYING Approximately 560 W
POWER CONSUMPTION - READY Approximately 70 W
POWER CONSUMPTION - SLEEP Approximately 10 W
POWER CONSUMPTION - POWER OFF Approximately 0.04 W
NOISE LEVEL 47 dB(A)
TEMPERATURE - OPERATING 10 ℃ to 32.5 ℃
Network
WIRELESS NETWORK SECURITY WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Supported OS Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11
|
