Product Summary:
 6 Colour 36" Wide Printing
Up to Res 2400 x 1200 dpi
500GB with 2GB Memory
Max. Media Roll Diameter
Windows & Mac Drivers
USB, Network & Wireless
One Year Onsite Warranty
Product Description:

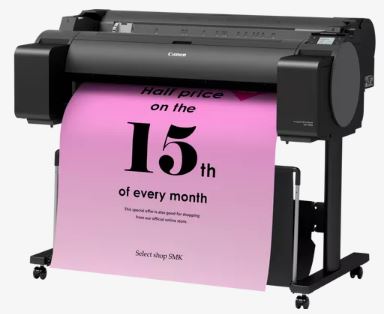

Deliver premium-quality posters that make a lasting impact with a 6-colour, 36-inch large format printer with newly developed fluorescent pink ink.
Bring your marketing materials to life with the world ‘s first aqueous pigment large-format inkjet printer, incorporating fluorescent colour expression for a dynamic finish with easy poster-creation tools.
Vibrant neon colours
Stand out from the competition, with the vibrant fluorescent pink ink, adding neon expression to your poster design for an eye-catching finish.
Simple design software
Embrace the power of customisation with easy-to-use design software, including new PosterArtist 3.4 with new templates and stock photo resources.
Free-size borderless printing
Free-size borderless printing makes poster production easier than ever before, with high-precision paper edge detection supporting prints of all sizes.
Direct to print
Built-in HDD allows to reprint saved data easily, plus JPG/PDF images can be printed directly from a USB memory.
Compact design
Maximise available office space with a small footprint printer that fits flat against the wall to offer full front usability, perfect for smaller offices.
Security assured
Have confidence in your data security with PIN-accessed Security Print feature, plus built-in secure file erasure function, preventing information leakage or loss.
Specifications in detail
Printer Technology
Printer Type
6 Colour 36"
Print Technology
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution
2,400 x 1,200 dpi
Number of Nozzles
Total : 15,360 nozzles MBK, BK, C, M, Y, FP : 2,560 nozzles each
Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch
1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size
minimum 5 pl per colour
Ink Capacity
Bundled Starter Ink : 90 ml (MBK, BK, C, M, Y, FP)
Sales Ink : 130 ml, 300 ml
Ink Type
Pigment inks : 6 colour MBK, BK, C, M, Y, FP
OS Compatibility
Microsoft Windows 32 Bit : 7, 8.1, 10
Microsoft Windows 64 Bit : 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
Apple Macintosh : macOS 10.13.6 - macOS 11
Printer Languages
PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port : USB Memory Direct Print for JPEG/PDF files
USB B Port : Built-in Hi-Speed USB
Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory
2GB
Expansion slot : No
Hard Drive
500GB
Print Speed
Poster
Plain Paper (A0)
0:44 (Fast)
1:18 (Standard)
Heavy coated Paper (A0)
1:41 (Fast)
2:36 (Standard)
Glossy photo Paper (A0)
6:19 (Standard)
9:41 (High Quality)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Upper-loading, Front Output
Added Roll Paper : N/A
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper : 203.2 mm - 917 mm
Cut sheet : 203.2 mm - 917 mm
Media Thickness
Roll/Cut : 0.07 mm - 0.8 mm
Minimum Printable Length
Roll paper : 203.2 mm
Cut sheet : 279.4 mm
Maximum Printable Length
Roll paper : 18 m (Varies according to the OS and application)
Cut sheet : 1.6 m
Maximum Media Roll Diameter
150 mm
Media Core Size
Internal diameter of roll core : 2"/3"
Margins Recommended Area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable Area
Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Roll Paper : 1 roll
Cut Sheet : 1 sheet
Media Take-Up Roll Unit
N/A
Borderless Printing Width (Roll Only)
[Recommended] 515 mm (JIS B2), 728 mm (JIS B1), 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 17", 24", 36"
[Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 8", 12", 15", 16", 18”, 20", 22”, 30", 34”, 300 mm, 500 mm, 600 mm, 800 mm, and custom roll width (203.2 - 917 mm)
Maximum Number of Delivered Prints
Standard position of the basket : 1 sheet
Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation : 74 W or less
Sleep mode : 2.1 W or less
Default setting for the time to enter the Sleep mode : Approx. 5 Minutes
Power off : 0.3 W or less
Operating Environment
Temperature : 15~30?, Humidity : 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Pressure
Operation : 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Standby : 35 dB (A) or less
Power
Operation : 6.7 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Regulations
Europe : CE mark
Other Countries : CB certfication
Environment Certificates
TUV, CB
Dimensions and Weight
Physical Dimensions and Weight
1289 x 870 x 1060 mm (Basket Open)
1289 x 757 x 1060 mm (Basket Closed)
59 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet) : 1462 x 913 x 709 mm
79 kg
Stand + Basket : 1362 x 824 x 268 mm
17 kg
What's Included
What's in the Box?
Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet
Software Included
imagePROGRAF GP Printer Driver and PosterArtist Lite
Other software available as Download from Web.
Options
Optional Items
2/3" Roll Holder : RH2-35
Consumables
User Replaceable Items
Ink Tank : PFl-120 (130ml), PFl-320 (300ml)
Print Head : PF-07
Cutter Blade : CT-08
Maintenance Cartridge : MC-31
|
