Canon IPFTM-200 24" Large Format Printer, LEI24 Scanner

IPFTM-200 24" 5 Colour Graphics Large Format Printer with Stand, LEI24 Scanner
Price:
$5,616.82
Code: BDLTM200LEI_IND
Availability : In Stock


Product Summary:
  5-Color 24" Wide Printing
   Up to Res 2400 x 1200 dpi
  2GB Standard Memory
   5 Pl Ink Droplet Size
   Windows & Mac Drivers
   USB, Wireless & Network
   One Year on Site Warranty


Product Description:
The core technologies of the imagePROGRAF TM-200 deliver ultra-sharp lines and colour vibrancy for fast, easy large-format printing. With nearly 60% sound reduction and flush installation, it’s perfect for smaller offices with limited space.

Present CAD and GIS files in high definition with true colour and sharp lines with your affordable multifunction printer. Fast, efficient and easy to use, with a built in scanner, the small size of your imagePROGRAF TM 200 24ei means it will slot into the tightest space. And with sound dampening technology, you’ll barely notice it get to work.

Specifications in detail
Scan Technology

SingleSensor with multiple LED illumination
Optical resolution 600dpi.
Scan speed
COPY
300/300dpi Draft = 1ips colour, 3ips mono
300/600dpi Standard = 1ips colour, 3ips mono
600/600dpi Best = 0.5ips colour, 1.5ips mono

SCAN
200dpi Draft = 1ips colour, 3ips mono
300dpi Standard = 0.5ips colour, 1.5ips mono
600dpi Best = 0.33ips colour, 1ips mono
Scan Modes
Scan to USB - RGB/Greyscale/BW, TIFF (No ScanApp Lei)
Scan to USB - RGB/Greyscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp Lei available)
Scan to PC - RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF
Copy - RGB/Greyscale/BW
Copy & Archive – (Combination of Copy and Scan to PC above).
Cloud connectivity is achieved by a link to Canon’s Direct Print & Share.
PRINT is achieved by using Canon’s Direct Print & Share.
Paper path
Face up, rear exit. Forward document transport only
Document return guide(s) included
Scan width 24" / 609.6mm
Min. scan width 6.2" / 157.4mm
Min. document width 26" / 660.4mm
Max. scan length 109" / 2768mm
Max & Min Document thickness
Designed to scan Canon iPF printer CAD paper.
Min = 0.07mm
Max = 0.5mm
Scan accuracy
Accuracy 0.2% +/-1 pixel
Network Modes

Standard Network Mode:
(Prevents the scanner exceeding the network's data rate capability).

Copy uses on-board memory as a buffer, then communicates with printer via Ethernet.
Scan to USB uses on-board memory as a buffer, then saves TIFF files only.
Scan to PC uses on-board memory as a buffer before sending data via Ethernet to the ScanApp Le.
Copy & Archive uses on-board memory as a buffer before sending data via Ethernet to the ScanApp Le.


Plus Network Mode:
(Uses full network capability and ScanApp Le to improve functionality & productivity).

Copy sends data via Ethernet to the Scan App Le which acts as a print spooler to free up the scanner sooner.
Scan to USB sends data via Ethernet to the Scan App Le which converts file type to PDF/JPG/MPDF to write back to the USB stick.
Scan to PC sends data via Ethernet directly to the ScanApp Le to free up the scanner sooner.
Copy & Archive sends data via Ethernet directly to the ScanApp Le to free up the scanner sooner.

Scan to USB

USB2, 128GB FAT32.
Scan to Network - ScanApp Lei

ScanApp Lei - Sets scan directory.
Minimum PC specification: • Windows 7/8/10 - 32bit. • 100Mbs Ethernet. • Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors • 2GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.
Suggested PC specification: • Windows 7/8/10 - 64bit. • GB Ethernet. • Intel i3,i5 or i7 processors • 4GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.
Languages for ScanApp Lei

English/French/German/Italian/Spanish/Simplified Chinese/Traditional Chinese/Korean/Russian/Portuguese/Japanese/Czech/Polish
Control Panel

3" touch screen display
Weight of scanner

5.28kg (11.6lbs) without Doc return guide
Dimensions width

935mm
Dimensions height

131mm
Dimensions depth

Without Doc Return Guide - Paper tray folded: 146mm
Without Doc Return Guide - Paper Tray flat: 193mm
With Doc Return Guide - Paper tray folded: 206mm
With Doc Return Guide - Paper Tray flat: 253mm
Power Supply

External PSU: Input: 100 - 240V, 50-60Hz
Output: 3.42A at 19V.
Max Power consumption

Standby (sleep): 0.6W
Idle: 11.7W
Scanning: 17.5W
Environmental

Temp: 10-35C
Humidity: 10-90%
Acoustic Noise Levels

48.4dB gray scan
Compliances

Europe : CE mark, Russia : EAC, Other countries : CB Certification
What's in the box?

L24ei scanner Printer mounting brackets, fixings & 3mm tool 2 feet for desktop use 2 paper edge guides
1 Document return guides
Calibration target
CD for ScanApp Lei software (includes PDF documentation: L24ei Scanner User Manual per language and Quick Start Guide)
L24ei Scanner Quick Start Guide.
Ethernet cable (2 meter)
Power Supply
Regional - Mains power cord(s) (2 meter)
PRINTER TECHNOLOGY
Printer Type

5 Colour 24"/610mm
Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution

2,400 x 1,200 dpi
Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch

1,200 dpi (2 lines)
Ink Droplet Size

minimum 5 pl per colour
Ink Capacity

Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type

Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow
OS Compatability

Microsoft Windows 32 Bit: Windows 7, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10, Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016
Apple Macintosh: OSX 10.10.5 - OSX 10.11, macOS 10.13
Printer languages

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces

USB A Port: USB Memory Direct Print
USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 1-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
MEMORY
Standard Memory 2 GB
Hard Drive N/A
PRINTING SPEED
CAD Drawing
Plain Paper (A1 page size)
0:24 (Fast Economy Mode)
0:27 (Fast)
0:42 (Standard)
Poster
Plain Paper (A1 page size)
0:25 (Fast)
0:44 (Standard)
Heavy Coated Paper (A1 page size)
0:55 (Fast)
1:22 (Standard)
Media handling
Media Feed and Output
Roll paper: One Roll, Uppper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 -610 mm
Cut sheet: 203.2 - 610 mm
Media thickness Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter 150 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for others: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Manually switchable by user
Borderless Printing Width (Roll Only)
515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 12", 16", 20", 300mm, 500mm, 600mm
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: 20 sheets on A2 landscape (excludes strong curled condition)
DIMENSIONS AND WEIGHT
Physical Dimensions and Weight
Main Unit, Stand and Basket
982 x 887 x 1060 mm (Basket Open)
982 x 757 x 1060 mm (Basket Closed)
52 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1152 x 913 x 705 mm, 69 kg
Stand + Basket 1155 x 824 x 268 mm, 18 kg
POWER AND OPERATING REQUIREMENTS
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 69 W or less
Sleep mode: 3.6 W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment
Temperature: 15~30?, Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels(Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)
Regulations
Europe: CE mark, Russia: EAC
Compliances
TUV, CB
WHAT'S INCLUDED
What's in the box?
Printer, 1 x print head, 3-inch paper core attachment, Power Cable, UK Power cord (240V,3P), 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet
User software CD-ROM (Win)
PosterArtist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included
imagePROGRAF TM-Series Printer Driver, Print Plug-In for Office, Quick Utility Toolbox and PosterArtist Lite
Other software available as Download from Web.
OPTIONS
Optional Items
Printer Stand: SD-23
2/3" Roll Holder: RH2-28
CONSUMABLES
User Replaceable Items
Ink Tank: PFl-120 (130ml), PFl-320 (300ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Notes
Note 1
Maximum number of supported printers or PCs running ScanApp Lei = 15 (Maximumn number that can be assigned a number = 9).

Download .pfd brochure for Canon IPFTM-200 24" Large Format Printer, LEI24 Scanner

Canon IPFTM-200 24

Image may differ from actual product

Buy This Product:
Canon IPFTM-200 24" Large Format Printer, LEI24 Scanner
Code: BDLTM200LEI_IND
IPFTM-200 24" 5 Colour Graphics Large Format Printer with Stand, LEI24 Scanner
$5,616.82

Inc GST

Buy Consumables:

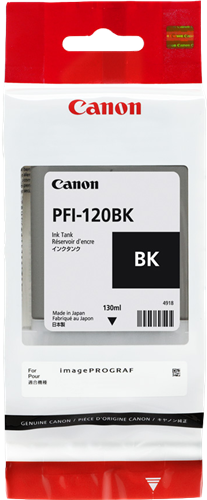

Genuine Black Canon PFI-120BK Ink Tank Cartridge 130ML
Code:PFI-120BK
For use in Canon IPF TM200, TM300, IPF TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$96.68

inc GST

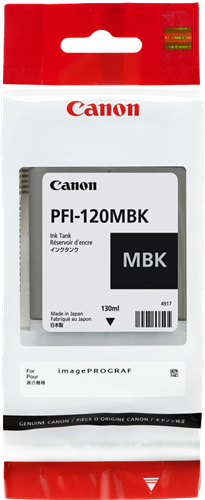

Genuine Matte Black Canon PFI-120MBK Ink Tank Cartridge 130ML
Code:PFI-120MBK
For use in Canon IPF TM200, TM300, TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$96.68

inc GST

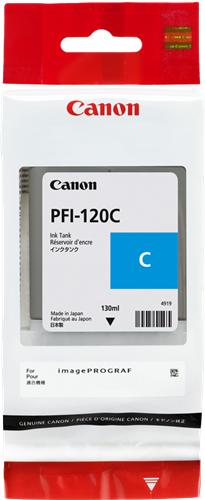

Genuine Cyan Canon PFI-120C Ink Tank Cartridge 130ML
Code:PFI-120C
For use in Canon IPF TM200, TM300, IPF TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$96.68

inc GST

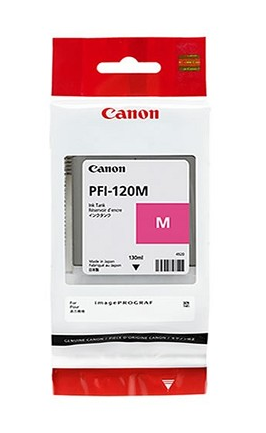

Genune Magenta Canon PFI-120M Ink Tank Cartridge 130ML
Code:PFI-120M
For use in Canon imagePROGRAF TM200, TM205, TM300, TM305, GP-200, GP-300
$96.68

inc GST

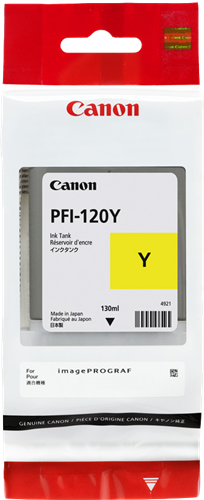

Genuine Yellow Canon PFI-120Y Ink Tank Cartridge 130ML
Code:PFI-120Y
For use in Canon IPF TM200,CANON TM300, TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$96.68

inc GST

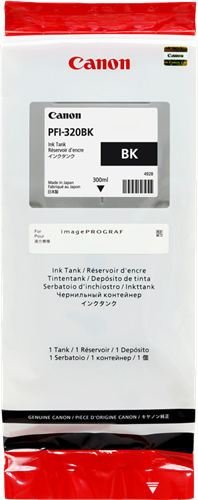

Genuine Black Canon PFI-320BK Ink Tank Cartridge 300ML
Code:PFI-320BK
For use in Canon IPF TM200, TM300, TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$170.97

inc GST

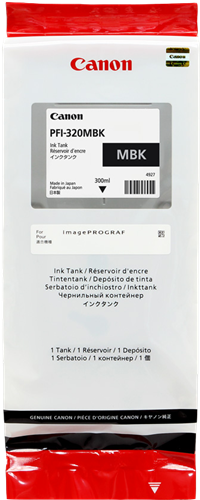

Genuine Matte Black Canon PFI-320MBK Ink Tank Cartridge 300ML
Code:PFI-320MBK
For use in Canon IPF TM200, TM205, TM250, TM250MFP, TM250LM MFP, TM300, TM305, TM350, TM350MFP, TM350LM MFP, GP200, GP300
$170.97

inc GST

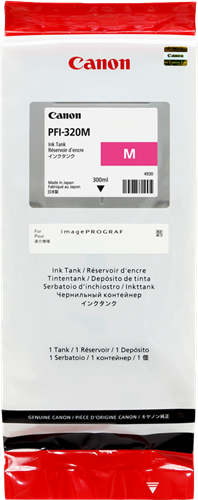

Genuine Magenta Canon PFI-320M Ink Tank Cartridge 300ML
Code:PFI-320M
For use in Canon imagePROGRAF TM200, TM205, TM300, TM305, GP-200, GP-300
$170.97

inc GST

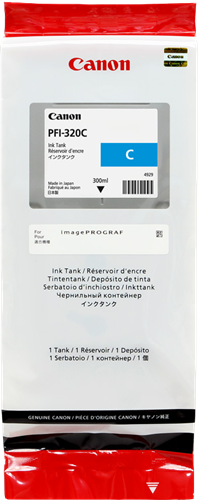

Genuine Cyan Canon PFI-320C Ink Tank Cartridge 300ML
Code:PFI-320C
For use in Canon IPF TM200, TM300, TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$170.97

inc GST

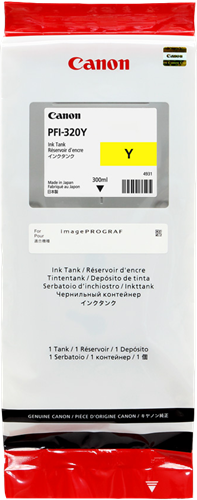

Genuine Yellow Canon PFI-320Y Ink Tank Cartridge 300ML
Code:PFI-320Y
For use in Canon IPF TM200,CANON TM300, TM250, TM350, GP200, GP300, TM350LM MFP, TM350MFP, TM250LM MFP, TM250MFP
$170.97

inc GST

Canon CT08 Cutter Blade
Code:CT-08
For use in Canon imagePROGRAF TA-20, TA-30, TM-200, TM-205, TM-240, TM-250, TM-300, TM-305, TM-340, TM-350
$136.07

inc GST

Genuine Canon MC-31 Maintenance Tank Cartridge
Code:MC-31
For use in Canon IPF TA20, TA30, TM240, TM250, TM340, TM350, GP200, GP300, TM240LM MFP, TM240MFP, TM350LM MFP, TM350MFP, TM340LM MFP, TM340MFP, TM250LM MFP, TM250MFP
$106.81

inc GST

Genuine Canon PF-06 Wide Format Print Head
Code:PF-06
For use in Canon IPF TA20, TA30, TM240, TM250, TM340, TM350, TM240LM MFP, TM240MFP, TM350LM MFP, TM350MFP, TM340LM MFP, TM340MFP, TM250LM MFP, TM250MFP
$579.78

inc GST

Buy this product with Options :
Canon RH2-28 Roll Holder Set
Code:RH2-28
RH2-28 ROLL HOLDER SETFOR IPF TM200, TM205, TM-240, TM-250, IPF TA-20
$299.42

inc GST

Canon SD-23 Printer Stand
Code:SD-23
SD-23 PRINTER STAND For IPF TM-200, TM205, TM-300, TM-305
$530.21

inc GST

Buy Warranties:
Canon iPF Technical machines 3 Year On-Site Support and Service Pack
Code:LTM-CAD-3YR-OSS
3 YEAR ON-SITE SUPPORT AND SER VICE PACK FOR IPF TECHNICAL MA CHINES TM SERIES NON- MFP
$601.52

inc GST

Canon iPF Technical machines 4 Year On-Site Support and Service Pack
Code:LTM-CAD-4YR-OSS
LTM-CAD-4YR-OSS 4 YEAR ON-SITE SUPPORT AND SERVICE PACK FOR IPF TECHNICAL MACHINES
$1,204.10

inc GST

Canon iPF Technical machines 5 Year On-Site Support and Service Pack
Code:LTM-CAD-5YR-OSS
LTM-CAD-5YR-OSS 5 YEAR ON-SITE SUPPORT AND SERVICE PACK FOR IPF TECHNICAL MACHINES
$1,706.25

inc GST

  • HOME |
  •  >
  • Printers
  •  >
  • Canon IPFTM-200 24" Large Format Printer, LEI24 Scanner

Copyright©2011 ECHO1 Pty Ltd All Rights Reserved
Printer Supermarket is a ShopWiki.com.au Approved Store
