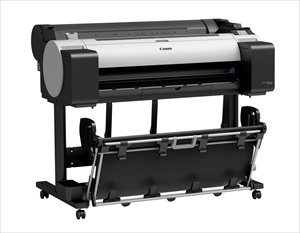

Canon IPF TM-305 MFP 36" Large Format Printer with Stand

Product Description

The new compact design of the imagePROGRAF TM-305 MFP T36 large format printer includes the T36 scanner that attaches to the top of the printer and a 15.6" touchscreen computer that attaches directly to the printer stand. The touchscreen monitor makes it easier for the user to preview documents for editing and mark-up.
The 36-inch imagePROGRAF TM-305 MFP T36 is a Scan-To-Copy/File/Share integrated solution from Canon that includes the TM-305 large format printer, T36 scanner and All-In-One computer with SmartWorks software.
Printer Type
5-Colour 36-inch Printer
Number of Nozzles
Total: 15,360
 MBK: 5,120 nozzles
 C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
 1,200 dpi
 Non-firing nozzle detection and compensation
OS Compatibility
 Windows® 7, 8.1, 10 (32/64bit)® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
 Macintosh OS X v10.10.5-v10.12x
Standard Interfaces
 USB 2.0 High-Speed
 10/100/1000 Base-T/TX
 Wireless LAN (IEEE 802.11 b/g/n)
 Direct USB Thumb Drive Printing
Ink Droplet Size
 5 picoliter
Ink Capacity
 130 ml or 300ml per colour
Ink Type
 Pigment Ink
Colour Set
 Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
 128 GG (2 GB Physical)
Media Width
 Cut Sheet - 8- 36
 Roll Feed - 8 - 36
Media Thickness
 0.07-0.8mm
Maximum Roll Print Length
 Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
 5.9 (150mm)
Borderless Printing Width
 8, 10, 12, 14, 16, 17, 20, 24, 36 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm), B1 (28.66/ 728 mm), A0 (33.11/841 mm)
Paper Feed Method
 Roll Feed: One Roll, Top-loading, Front Output
 Cut Sheet: Top Loading, Front Output
SGRaster, HPGL/2, HP-RTL, JPEG
 SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx.
 Operation: 44 dB (A) or less
 Standby: 35 dB (A) or less
 Acoustic Power: 6.0 Bels or less
Physical Dimensions
 42 x 51 x 35
Weight
 Approx. 134 lbs (roll holder included, no inks, no print heads)
Power Source
 AC-100-240V (50-60Hz)
Power Consumption
 Maximum: 69W or less
 Standby 3.6W or less
 Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
 Temperature: 59°-86° F (15°-30° C)
 Relative Humidity: 10-80% (No Condensation)
User-replaceable items
 Print Head (PF-06), Maintenance Cartridge (MC-31), Ink Tanks (PFI-120/PFI-320), Cutter Blade (CT-08)
Software Included
 TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †
Scanner Type
 Contact Image Sensor (CIS) technology
Scan Accuracy
 +/- 0.1%
Speed
 13 ips monochrome, 6 ips color (Copy, Standard Mode)
Optical Resolutions
 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max Resolutions
 9600dpi interpolated
Max. Document Size
 Width: 38 inch document width (36 inch image width)
 Length: 315 (JPG or PDF), 598 (TIFF)
 Thickness: 0.079in (2mm)
Standard Interface
 USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
