Product Summary:
 15uipm Black & 10ipm Colour
Up to Res 600 x 1200 dpi
250 Sheets Tray Capacity
Automatic 2-Sided Printing
2.7" Colour Touch Screen
USB, Wired LAN & Wireless
One Year Limited Warranty
Product Description:
Office-quality at home
Print business documents at high speeds of 15 ipm in black and 10 ipm in colour with high printing durability. Scan directly to network folders and email for co-workers to access instantly.
Compact and intuitive
15% smaller than the previous MAXIFY MegaTank printers, it fits into compact spaces or against walls thanks to its full front operation design for easy access. Simple to use with its tilting 2.7" LCD screen, status light and intuitive UI.
Versatile functionality
Print, copy and scan without pause. Auto duplex printing without irritating paper reloads thanks to the 250-sheet cassette. With a user replaceable maintenance cartridge, you can make sure your print workflow is never interrupted.
High printing durability
Enjoy business-quality prints with excellent readability and resistance to fade, water, markers and transfer, delivered quickly and in large volumes.
Simple and secure
Keep your most important data safe with simple, easy-to-navigate security settings that can be effortlessly tailored to your environment.
Adjustable 2.7" LCD Touchscreen
Get the job done with an intuitive and easy-to-use 2.7" LCD touchscreen.
Specifications
GENERAL FEATURES

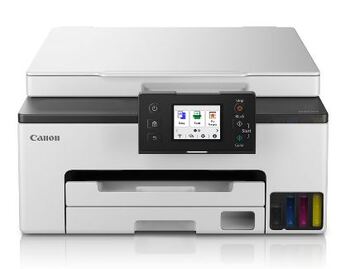

Model MAXIFY GX1060 MegaTank
Ink Type 4 Bottles (PGBK / C / M / Y)
Maximum Print Resolution 600 dpi x 1,200 dpi*1
Size Approx. 374 x 380 x 186mm
Approx. 14.8 x 15 x 7.4 inch
Weight Approx. 7.0 kg
Approx. 15.4 lbs
Display 2.7” / 6.7 cm LCD (Monochrome)
Interface Hi-Speed USB-B
Connectivity Wireless LAN 2.4GHz & 5GHz, Wireless Direct, Wired LAN
Input Power AC 100-240 V, 50 / 60 Hz
PRINT SPEED
Document: Colour Approx. 10.0 ipm
Document: Black & White Approx. 15.0 ipm
POWER CONSUMPTION
Copying
3 USB connection to PC Approx. 21 W
OFF Approx. 0.1 W
Standby (MFP: scanning lamp is off) USB
connection to PC Approx. 0.8 W
Standby (all ports connected, MFP:
scanning lamp is off) Approx. 1.4 W
Time to enter Standby mode Approx. 5 min 1 sec.
ENVIRONMENT
Operating Environment*4 Temperature: 5 - 35 °C Humidity: 10 - 90 %RH (no dew condensation)
Recommended Environment*5 Temperature: 15 -30 °C Humidity: 10 - 80 %RH (no dew condensation)
Storage Environment Temperature: 0 - 40 °C Humidity: 5 - 95 %RH (no dew condensation)
ACOUSTIC NOISE (PC PRINT)
Quiet Mode Available
Acoustic Noise (PC print) Plain Paper*6 Approx. 46.5 dB(A)
PRINT HEAD / INK
Number of Nozzles Total 3,136 nozzles (BK: 832 nozzles, C/M/Y 768 nozzles)

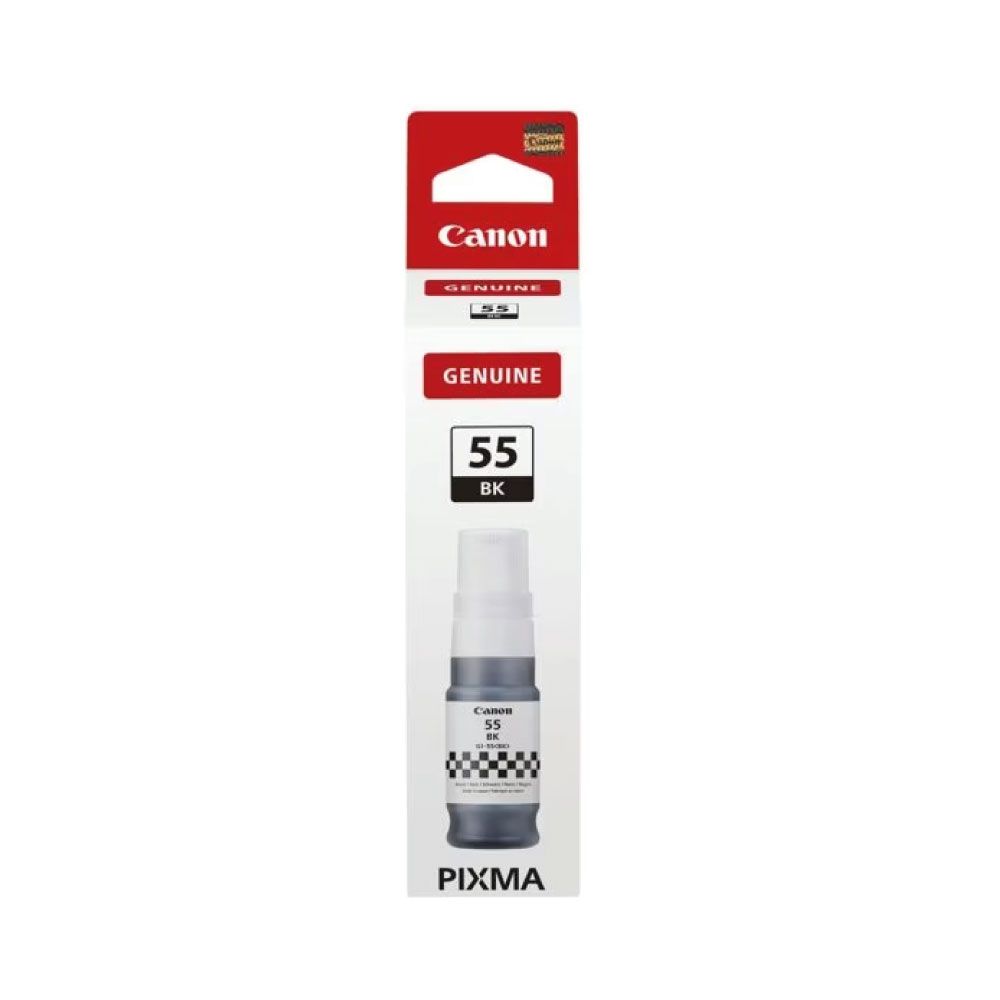

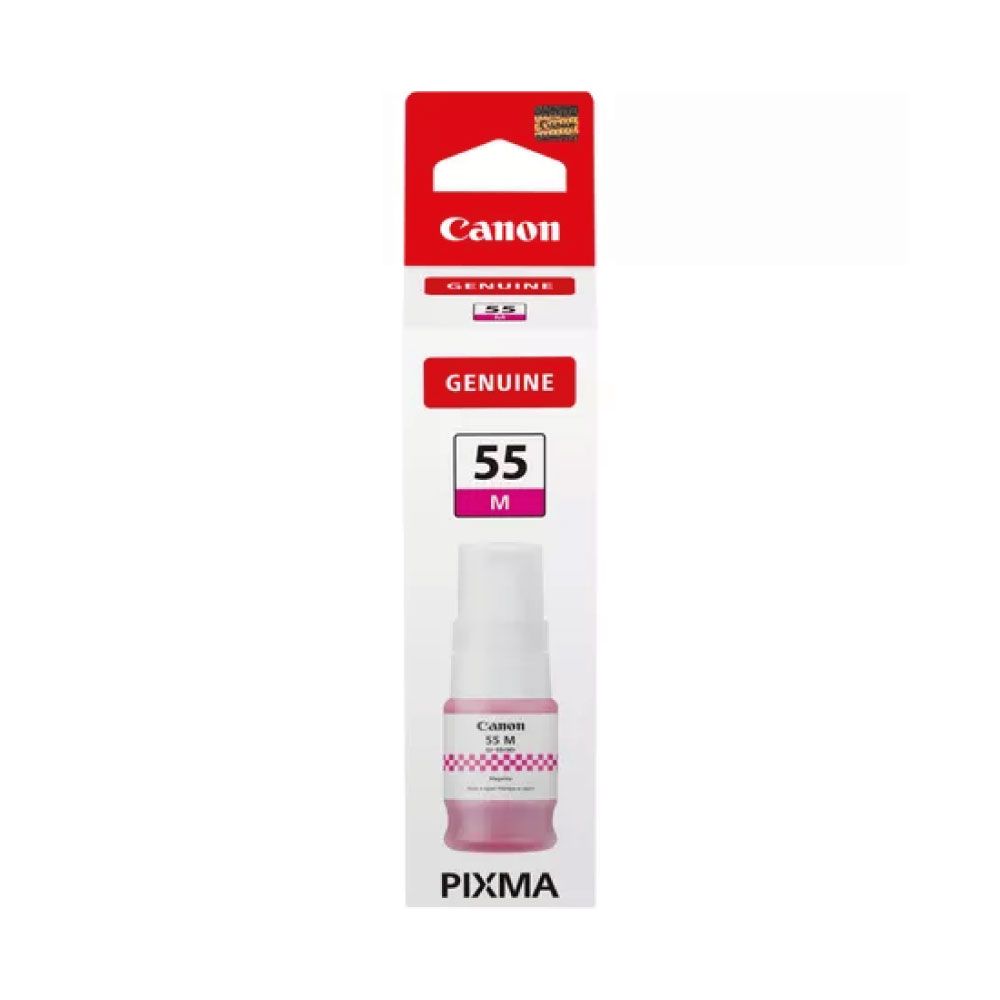

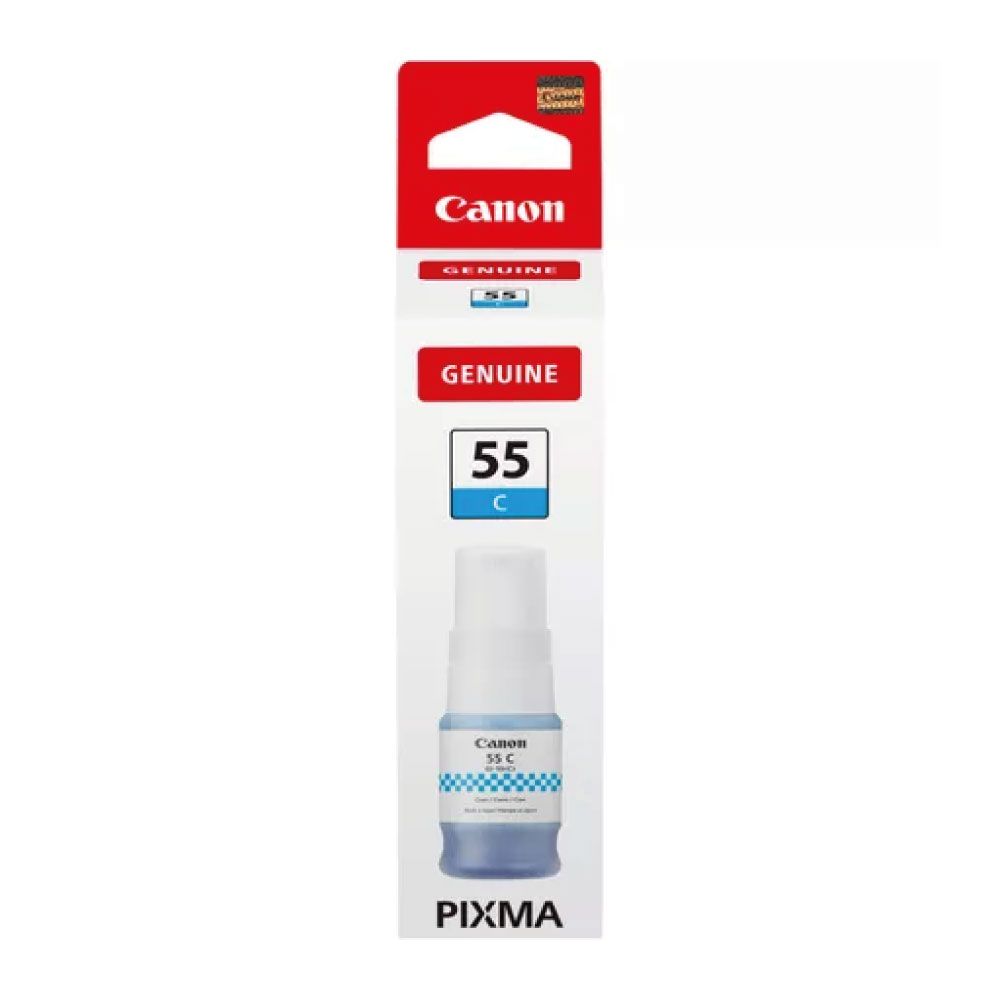

Compatible Inks GI-55BK, GI-55C, GI-55Y, GI-55M
PRINTABLE WIDTH
Up to 206 mm (8 inch)
PRINTABLE AREA
Bordered Printing
• #10 Envelope, DL Envelope, Envelope C5, Monarch Envelope
Top: 12.7 mm, Bottom: 12.7 mm, Right: 5.6 mm, Left: 5.6 mm
• 4" x 6", 5" x 7", 7" x 10", 8" × 10"
Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
• Other
Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
• Bordered Auto 2-sided printing
Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
SUPPORT MEDIA
Cassette
Plain Paper (64 g/m2 - 105 g/m2), High Resolution Paper (HR-101N),
Photo Paper Plus Glossy II (PP-301), Photo Paper Pro Luster (LU101), Photo Paper Plus Semi-gloss (SG-201), Photo Paper Glossy
(GP-701), Matte Photo Paper (MP-101), Envelope, Magnetic Photo
Paper (MG-101), Restickable Photo Paper (RP-101), Greeting Card
(manufactured by Avery and RedRiverPaper), Cardstock
(manufactured by Neenah Paper and INKPRESS), Light Fabric Iron
on Transfers (LF-101), Double sided Matte Paper (MP-101D)
PAPER SIZE
Cassette
A4, A5, A6, B5, LTR, LGL, B-Oficio, M-Oficio, Foolscap, Legal(India),
Executive, #10 Envelope, DL Envelope, C5 Envelope, Monarch
Envelope, 4" x 6", 5" x 7", 7" x 10", 8" x 10", Custom size (width:89
mm - 216 mm, length: 127 mm - 355.6 mm)
PAPER HANDLING (MAXIMUM NUMBER)
Cassette
Plain Paper (64 g/m2): 250
4” x 6” - Photo Paper Plus Glossy II (PP-301), Photo Paper Plus
Semi-gloss (SG-201), Photo Paper Glossy (GP-701), Matte Photo
Paper (MP-101): 20. Magnetic Photo Paper(MG-101), Restickable
Photo Paper(RP-101): 1.
5” x 7” - Photo Paper Plus Glossy II (PP-301), Photo Paper Plus
Semi-gloss (SG-201): 10
Auto Document Feeder Plain Paper (64 g/m2): 35 LGL: 5, others: 1
PAPER WEIGHT
Cassette
Plain Paper: 64 g/m2 -105 g/m2,
Canon paper: max paper weight : approx. 265 g/m2,
Photo Paper Plus Glossy II (PP-301)
SCANNER FUNCTIONS
Scanner Type Flatbed (Platen)
Optical Resolution*8
1,200 x 2,400 dpi
Scanning Bit Depth (Input/Output) Grayscale: 16 bit / 8 bit
Colour: RGB each 16 bit / 8 bit
Maximum Document Size A4 / LTR (216 x 297 mm)
COPY FUNCTIONS
Maximum Document Size A4 / LTR
Compatible Media
Plain Paper (64 g/m2 - 105 g/m2), Photo Paper Plus Glossy II (PP301), Photo Paper Pro Luster (LU-101), Photo Paper Plus Semi-gloss
(SG-201), Photo Paper Glossy (GP-701), Matte Photo Paper (MP-101),
Light Fabric Iron on Transfers (LF-101)
Image Quality 3 positions (Economy, Standard, Economy)
Multiple Copy Black & White / Colour: max. 99 pages
PRINTING SOLUTION
Available for
9 AirPrint / Mopria / Canon Print Service (for Android) /
PIXMA/MAXIFY Cloud Link / Canon PRINT app (for iOS / Android)
Minimum System Requirements
Windows: WindowsR 11, 10, 8.1, 7SP1. Windows Server
2022/2019/2016/2012 R2/2008 R2 SP1.
Mac: macOS 10.15.7~13
Other Supported OS: iOS, iPadOS, Android, ChromeOS
MAINTENANCE CARTRIDGE

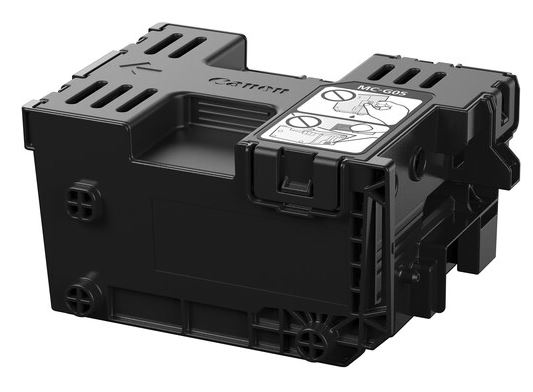

Compatible Maintenance Cartridge MC-G05
|
