Product Summary:
 15ipm Black & 10ipm Colour
Up to Res 1200 x 1200 dpi
2.7" / 6.7cm LCD Display
100 Sheets Input Tray
Auto 2-Sided Printing
USB & Wireless Interface
One Year Limited Warranty
Product Description:
Fast printing
Get your documents quickly with fast printing speeds of black 15 ipm, colour 10 ipm and print borderless 4x6" photo in just 19 seconds. Stay productive with auto duplex printing and a 2-way paper feed and 1 push copy.
Simple, intuitive UI
Enjoy effortless operation with the streamlined, customisable Switch UI system, which tailors functions to your needs: work, study or lifestyle.
Stay Connected
The PIXMA TS7760 has improved Wi-Fi connectivity for simple setup, enabling quick and easy printing from your computer or smartphone. Connecting to a smartphone is even easier with the QR code direct connection function.
The 2.7" colour touch LCD screen allows you to operate your printer and complete all printing tasks with ease. The screen tilts at a 45 degree angle for easy viewing.

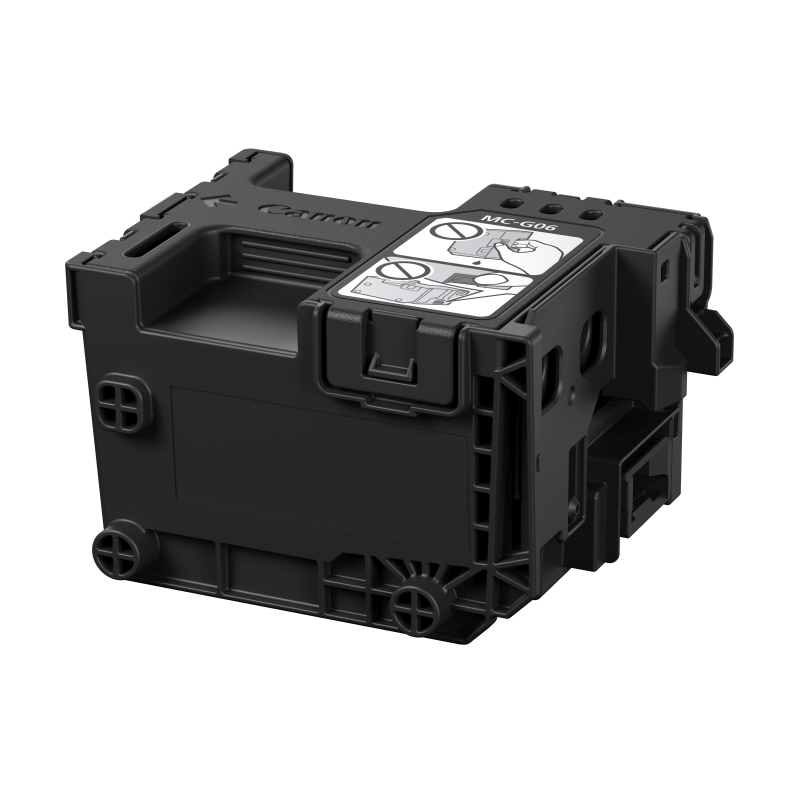

Maintenance Cartridge
The PIXMA TS7760 is equip with a user-replaceable maintenance cartridge to ensure your printer run at its best.
Beautiful photo prints at home
Print vibrant, high-quality photos at home due to Canon's FINE print head technology delivery rich gradation and reduced graininess.
Specifications:-
GENERAL FEATURES

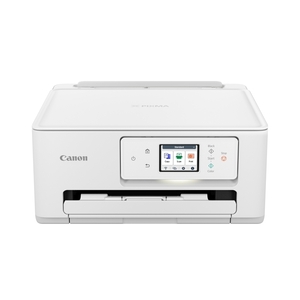

Model PIXMA TS7760
Ink Type 2 FINE Cartridges (Black and Colour)
Maximum Print Resolution 1,200 dpi x 1,200 dpi
Size Approx. 374 x 350 x 168 mm
Approx. 14.8 x 13.8 x 6.7 inch
Weight Approx. 6.3 kg
Approx. 13.8 lbs
Display 2.7” / 6.7cm LCD (Touch Screen, colour)
Interface USB-B Hi-Speed
Connectivity Wireless LAN 2.4GHz & 5GHz,
Direct Connection (Wireless LAN)
Input Power AC 100-240 V, 50 / 60 Hz
PRINT SPEED
Document: Colour Approx. 10 ipm
Document: Black & White*2 Approx. 15 ipm
Photo (4” x 6”)*2
19 seconds
POWER CONSUMPTION
OFF Approx. 0.1 W
Copying USB connection to PC Approx. 21 W
Standby (MFP: scanning lamp is off) USB
connection to PC Approx. 0.9 W
Standby (all ports connected, MFP:
scanning lamp is off) Approx. 1.5 W
Time to enter Standby mode Approx. 10 min 00 sec
ENVIRONMENT
Operating Environment Temperature: 5 - 35 °C Humidity: 10 - 90 %RH (no dew condensation)
Recommended Environment*5 Temperature: 15 -30 °C Humidity: 10 - 80 %RH (no dew condensation)
Storage Environment Temperature: 0 - 40 °C Humidity: 5 - 95 %RH (no dew condensation)
ACOUSTIC NOISE (PC PRINT)
Quiet Mode Available
Acoustic Noise (PC print) Plain Paper*6 Approx. 48.0 dB(A)
PRINT HEAD / INK
Number of Nozzles Total 3,136 nozzles (BK: 832 nozzles, C/M/Y 768 nozzles)

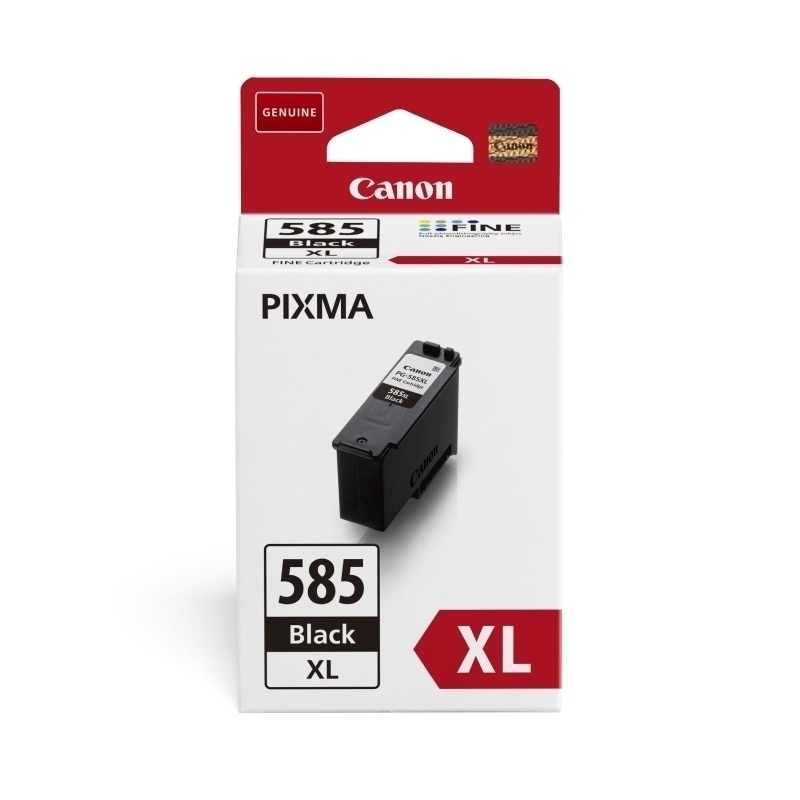

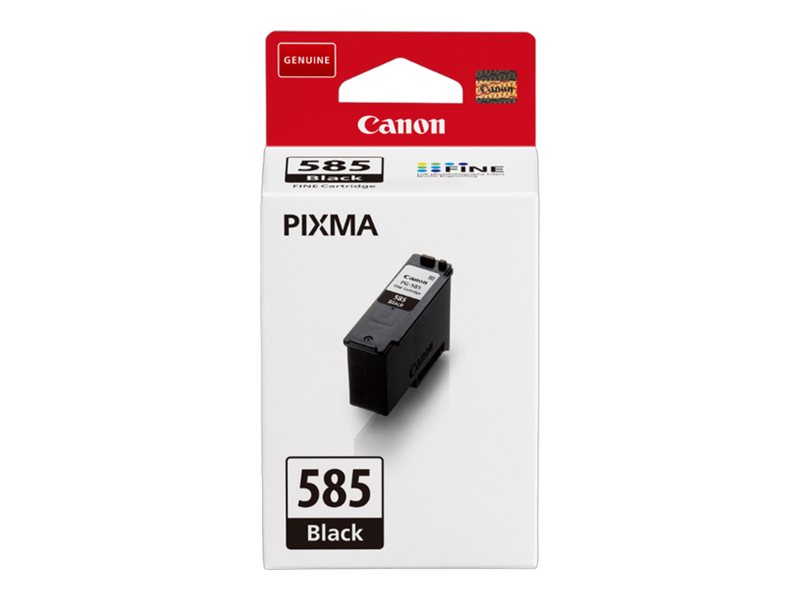

Compatible Inks Black: PG-585, PG-585XL

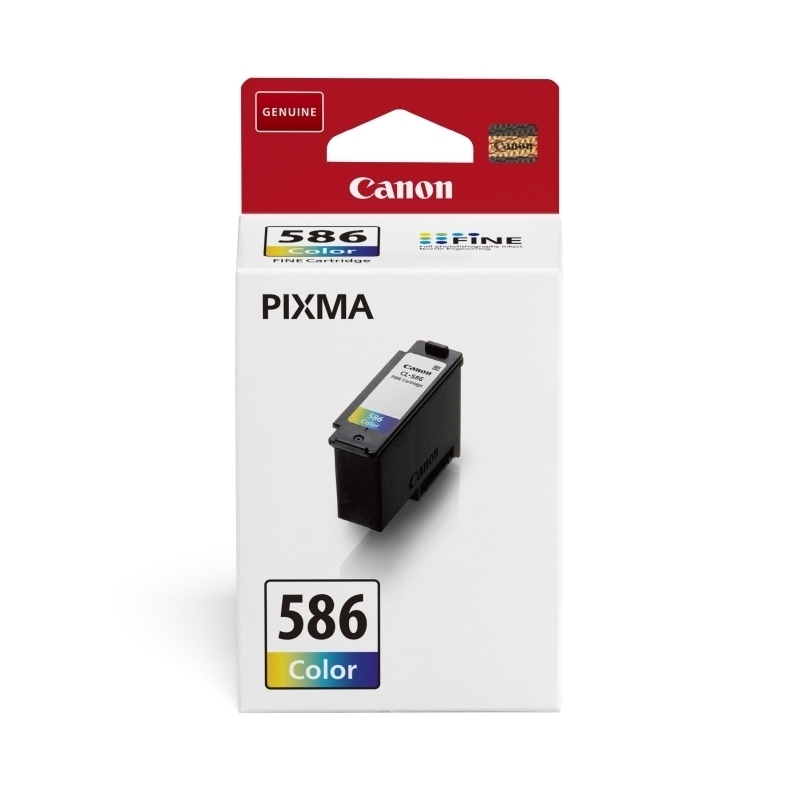

Colour: CL-586, CL-586XL
PRINTABLE WIDTH
Up to 203.2 mm (8 inch), Borderless: Up to 216 mm (8.5 inch)
PRINTABLE AREA
Borderless Printing Top / Bottom / Right / Left margin: each 0 mm
Bordered Printing
• A5/A4/B5
Top: 5 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
• LTR/LGL
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
• Other
Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
Bordered Auto 2-Sided Printing Top: 5 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm (LTR: Right: 6.3 mm, Left: 6.4 mm)
SUPPORT MEDIA
Rear Tray
Plain Paper (64 g/m2 - 105 g/m2), Photo Paper Pro Platinum (PT101), Photo Paper Pro Luster (LU-101), Photo Paper Plus Glossy II
(PP-301), Matte Photo Paper (MP-101), Photo Paper Glossy (GP-701),
High Resolution Paper (HR-101N), T-Shirt Transfer, Envelope, Photo
Paper Plus Semi-gloss (SG-201), Dark Fabric Iron on Transfers (DF101), Light Fabric Iron on Transfers (LF-101), Restickable Photo
Paper (RP-101), Greeting Card (manufactured by Avery and
RedRiverPaper), Cardstock (manufactured by Neenah Paper and
INKPRESS), Premium Fine Art Rough (FA-RG1), Magnetic Photo
Paper (MG-101)
Front Tray Plain Paper (64 g/m2 - 105 g/m2)
PAPER SIZE
Rear Tray
A4, A4 Art paper, A5, B5, LTR, LTR Art paper, LGL, #10 Envelope,
DL Envelope, Card Size (91 mm x 55 mm), 4" x 6", 5" x 7", 7" x 10",
8" x 10", Square (89 mm x 89 mm, 127 mm x 127 mm),
Custom Size (width: 55 mm - 215.9 mm, length: 89 mm - 1200 mm)
Front Tray A5,A4,B5,LTR
PAPER SIZE (BORDERLESS)
A4, B5, LTR, 4" x 6", 5" x 7", 8" x 10", Card Size (91 mm x 55 mm),
Square (89 mm x 89 mm), Square (127 mm x 127 mm)
PAPER HANDLING (MAXIMUM NUMBER)
Rear Tray
Plain Paper (64 g/m2)=100,
High Resolution Paper (HR-101N) =80
4x6” = Photo Paper Pro Platinum (PT-101), Photo Paper Plus Glossy
II (PP-301), Photo Paper Plus Semi-gloss (SG-201), Photo Paper
Glossy (GP-701), Matte Photo Paper (MP-101), Restickable Photo
Paper (RP-101), Photo Stickers (PS-108/PS-208/PS-808), Magnetic
Photo Paper(MG-101): 1
Front Tray Plain Paper (64 g/m2): 100
PAPER WEIGHT
Rear Tray
Plain Paper: 64 g/m2 - 105 g/m2,
Canon paper: max paper weight : approx. 300 g/m2 (Photo Paper
Pro Platinum PT-101)
Front Tray Plain Paper: 64 g/m2 - 105 g/m2
SCANNER FUNCTIONS
Scanner Type Flatbed
Optical Resolution*10 1,200 x 2,400 dpi
Scanning Bit Depth (Input/Output) Grayscale: 16 bit / 8 bit
Colour: RGB each 16 bit / 8 bit
Maximum Document Size Flatbed: A4 / LTR (216 x 297 mm)
COPY FUNCTIONS
Maximum Document Size A4 / LTR
Compatible Media
Plain Paper(64 g/m2 - 105 g/m2), Photo Paper Pro Platinum
(PT-101), Photo Paper Pro Luster (LU-101), Photo Paper Plus
Semi-gloss (SG-201), Photo Paper Glossy (GP-701), Matte
Photo Paper (MP-101), Photo Paper Plus Glossy II (PP-301),
Dark Fabric Iron on Transfers（DF-101), Light Fabric Iron on
Transfers（LF-101)
Image Quality 3 positions (Draft, Standard, High)
Multiple Copy Black & White / Colour: max. 99 pages
PRINTING SOLUTION
Available for AirPrint / Mopria / Canon Print Service (for Android) / PIXMA
Cloud Link / Canon PRINT app (for iOS / Android)
Minimum System Requirements Windows® 11, Windows® 10, Windows 8.1, Windows 7 SP1
MacOS v10.15.7 ~ 13, iOS®, iPadOS, AndroidTM, ChromeOS
|
