Product Summary:
 Max. Print Speed 250mm/Sec.
Up to Print Resolution 203 dpi
83mm Max. Roll Diameter
17 Million Printing Lines
Automatic Cutting Method
USB & Serial Interface
2-Year On-site Warranty
Product Description:
Self-Ordering and Self-Checkout Kiosk Thermal Receipt Printer.
Compact and kiosk friendly - thermal receipt printer with easy mounting kit provides effortless kiosk integration and serviceability
Remote monitoring support - provides printer fleet management and minimizes downtime in kiosk deployments
New bezel for efficient kiosk integration - optional bezel with LED indicators aids in better paper path alignment and paper jam prevention Easy troubleshooting - illuminated attention and error status LED alerts help with speedy error resolutions in the field
Secure access - security features like restricted front cover access and button cover options prevent unauthorized access to the printer
High printer reliability - 150 km printhead life and auto cutter life of 1.5 million cuts
Fast receipt printing - print speed up to 250 mm/sec
Paper-saving functions - reduce paper usage by up to 30%
Features
Produce high-quality documents with this monochrome printer to increase your productivity
A smart and inexpensive solution to print temporary documents
Conveniently print your receipts
Technical Specs
Cutter
Cutting Method Automatic
Cutter Yes
Cutter Life 1500000 Cuts
Technical Information
Barcode Symbology Supported Aztec Code
Codabar (NW-7)
Code 128
Code 39
Code 93
Composite Symbology
Data Matrix
EAN-8 (JAN8)
GS1 DataBar
GS1-128
GS1-128 Composite
ITF
Maxi Code
PDF417
QR Code
UPC-A
UPC-E
Recommended Use Receipt Print
Features Auto-cutter
Print Head Life 150km
Print Color Capability Monochrome
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 65000000
Character Sets 128 x 43 Graphic
18 International
95 Alphanumeric
Maximum Print Resolution (dpi) 203
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Power Description
Power Source Power Adapter
Frequency 50 Hz
60 Hz
Media Types & Handling
Media Thickness 80 µm
Maximum Roll Diameter 83 mm
Media Type Receipt
Media Sensor Paper Near End Sensor
Maximum Label Width 80 mm
Miscellaneous
Package Contents
EU-m30 Kiosk Thermal Receipt Printer
Thermal Roll Paper (Starter Roll for Testing)
Power Switch and Power/Feed Switch Covers
Roll Paper Guides for 58 mm Paper
Small Cover Open Lever
1 x Spare Screw
2 x Equipment Mounting Brackets
Product Fixing Brackets
2 x Screws + 1 Spare (Total of 3 Screws)
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
Noise Level 60 dB
Physical Characteristics
Weight (Approximate) 1.30 kg
Height 127 mm
Width 127 mm
Depth 131.2 mm
Product Color White
Color Family White
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CK01201
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model EU-m30

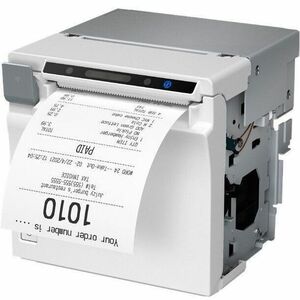

Product Name EU-m30 Kiosk Thermal Receipt Printer
Brand Name Epson
|
