Product Summary:
 Max. Print Speed 100mm/sec.
Max. Print Res 203 x 203 dpi
51mm Max. Roll Diameter
10 Million Printing Lines
Long-lasting Battery Life
USB & Wireless Interface
2-Year On-site Warranty
Product Description:

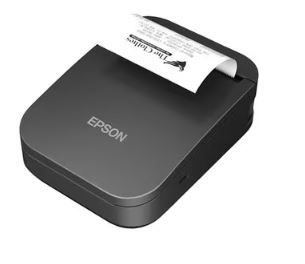

Portable Thermal Printer
The TM-P80II is a series of printers with 80mm (three-inch) receipts ideal for retail and food service and logistics. It offers the speed, reliability and connectivity options needed to meet the requirements of today's iOS, Android and Windows printing applications.
This Product is available in 4 different configurations.
KEY FEATURES & BENEFITS
Portable and lightweight - ultra compact, easy for users to wear (belt clip included); helps prevent carry fatigue
Robust design - IP54-rated enclosure is water- and dust-resistant; holds up to rigorous use, with a drop rating 1.8m*
Long-lasting battery life - up to 47 hours on a full charge1 (battery and USB-C cable included)
Fast battery charging capability - fully charges as fast as 2.5 hours2 (charger sold separately)
Versatile connectivity - wireless connectivity options (Wi-Fi 5 or Bluetooth 5.0) to provide connections to a wide variety of devices and networks
Exceptional print quality and ultra-fast print speed - quickly produce sharp and crisp text, barcodes and logos at up to 100 mm/sec
High-capacity media basket to help maximize uptime - 51 mm outer diameter allows for large paper capacity; replace rolls less often
Modern design - sleek design suited to complement your business
Enhance your printing with accessories - choose from a wide range of optional accessories, such as single or quad battery charger, spare battery, belt strap, shoulder strap and soft carrying case (each sold separately)
Features
Bring convenience, value, and feature to any mobile environment
Produce high-quality documents with this monochrome printer to increase your productivity
Direct Thermal Printer provides you with all the features that you need to print quickly and easily
Ideal for point-of-sale transactions for quick receipt printing
Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
Technical Specs
Power Description
Power Source Battery
Technical Information
Application/Usage Mobile
Barcode Symbology Supported Code 93
JAN-8
Maxi Code
PDF417
QR Code
UPC-A/E
AZTEC
Codabar
Code 128
Code 39
ITF
Composite Symbology
Data Matrix
EAN-13
EAN-8
GS1 DataBar
GS1 DataBar Expanded
GS1 DataBar Limited
GS1 DataBar Truncated
RSS
JAN-13
GS1-128
Recommended Use Receipt Print
Features Water Resistant
Lightweight
Dust Resistant
Drop Resistant
Mobile Device Printing Yes
Print Color Capability Monochrome
Character Sets 95 Alphanumeric
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203 x 203
Battery Information
Battery Included Yes
Battery Life (Max) 2 Day
Interfaces/Ports
USB Yes
USB Host Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/ac/b/g/n
Software
Software Included
ePOS-Print SDK, Windows driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux), TM Virtual Port Driver
Operating System Supported
WiFi (802.11): iOS, Android and Windows (Security Level WEP, WPA, WPA2-Enterprise)
Bluetooth: iOS, Android and Windows
Media Types & Handling
Maximum Roll Diameter 51 mm
Media Type Receipt
Media Sensor Cover Open Sensor
Out Of Paper Sensor
Maximum Label Width 79.50 mm
Miscellaneous
Package Contents
TM-P80II-811 Direct Thermal Printer
Battery (OT-BY80II)
Belt Clip (attached to printer)
Starter Roll Paper
USB-C Cable
Documentation
Platform Supported PC
Android
iOS
Environmentally Friendly Yes
Cables Included USB
Physical Characteristics
Weight (Approximate) 363 g
Form Factor Portable
Height 56 mm
Width 104 mm
Depth 137 mm
Product Color Black
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CK00811
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-P80II-811
Product Name TM-P80II-811 Direct Thermal Printer
Product Series TM-P80II
Brand Name Epson
|
