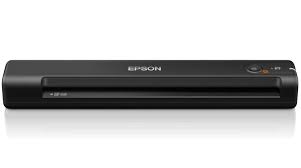

Epson WorkForce ES-50 Portable Photo Scanner

  Up to Scan Speed 5.5 Sec.
   Up to Res 600 x 600 dpi
  RGB 3 Colours LED (CIS)
   300 Pages Daily Duty Cycle
   Contact Image Sensor(CIS)
   USB 2.0 Interface
   One Year Return to Base Warranty

Perfect for busy professionals, the Epson WorkForce ES-50 is designed for simple and effective document management within the home, office or mobile environments. Businesses who have a requirement to scan receipts, brochures, cards or other documents can improve retrieval time and desk space with the Epson ES-50. Similarly, the Epson WorkForce ES-50 is designed for business people who are engaged in field work, which requires simple and effective digitizing of paperwork for immediate sharing.

Specification
PRODUCT NAME Epson WorkForce ES-50
PRODUCT CODE B11B252501
SCANNER TYPE Sheet Feed, Simplex A4 Colour Scanner
SCANNING METHOD Fixed carriage and moving document
Paper Supply: Manual feed (Face down)
OPTICAL SENSOR 1200dpi Color CIS with 10368 pixels (output up to 600 dpi)
MAX EFFECTIVE PICTURE ELEMENT 300 dpi : 2577 pixels / 600 dpi : 5154 pixels
MAX SCAN OUTPUT PIXELS Main 5,100 x Sub 8,400 pixels
SCANNING RESOLUTION Main 600 dpi
Sub 600 dpi (Mechanical step is 600dpi)
OUTPUT RESOLUTION 50 & 1200dpi
PIXEL DEPTH Colour Bit Depth : 48-bit internal / 24-bit external
Greyscale Bit Depth : 16-bit internal / 8-bit external
OUTPUT IMAGE DATA 1, 8, 24 bit (Selectable)
MAX SCAN AREA 2" x 2" inches (50 x 50mm)
8.5" x 72 inches (216 x 1,828mm) (long paper mode)
DOCUMENT SIZE Plastic/Emboss card (Landscape scanning only), A4, A5, A6, B5, A8(portrait scanning only / Windows only) Business card, Letter, Legal and Custom sizes
PAPER SET POSITION Right side of Document table (at main scan direction)
PAPER WEIGHT 35-270g/m2
DAILY DUTY CYCLE 300 pages
SIZE (W x D x H) 272 (W) X 47 (D) x 34 (H)mm (Dimension exclude protrusion)
WEIGHT Approx 300g
SCANNING SPEED*
Document Size: A4 Documents feed start to eject
SETTINGS SCANNING SPEED
200dpi, B/W
200dpi, Colour
300dpi, B/W
300dpi, Colour
600dpi, B/W
600dpi, Colour 10 ppm
10 ppm
10 ppm
10 ppm
30 ppm
30 ppm
*Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting.
OTHER
INTERFACE USB 2.0 Hi-Speed
LIGHT SOURCE RGB 3 Colours LED (CIS)
STATUS INDICATOR Green LED (1)
Power: Light up when Ready. Blinking when Busy.
ON/OFF SWITCH N/A
PUSH BUTTON 1 Push Button: Scan (Start)
POWER SUPPLY From USB interface (Mini-B connector) / DC inlet (5V USB Bus)
WARRANTY
12 months return to base Standard
Optional Additional 2 Year Warranty 3YWES50
