Product Summary:
 Up to 100ppm in Black & White
Up to Resolution 600 dpi
300 Sheets Feeder Capacity
45k Pages Daily Scan Cycle
Automatic Duplex Printing
USB & Network Interface
One Year Warranty
Product Description:

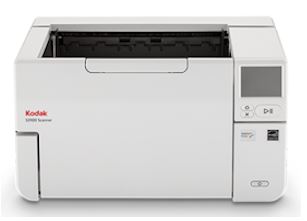

Product Highlights Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents
Throughput Speeds * 100 ppm / 200 ipm
Feeder Capacity Up to 300 sheets of 80 g/m² (20 lb.) paper
Connectivity
10/100/1000 ETHERNET
USB 3.2 Gen 1x1 Compatible
Maximum Document Size 305 mm x 4.06 m (12 in. x 160 in.)
Minimum Document Size 63.5 mm x 71.1 mm (2.5 in. x 2.8 in.)
Paper Thickness & Weight 27–433 g/m² (7.2–160 lb.) paper
Maximum Optical Resolution 600 dpi
Accessories & Consumables
Carrier Sleeves (5 PACK)
Document Extenders
Feeder Consumables Kits
KODAK A3 Size Flatbed Accessory
KODAK Enhanced Printer Accessory
Printer Ink Cartridge and Carrier
Rear Exit Tray Accessory
Acoustical Noise
Off or Ready mode: < 20 dB(A)
Scanning: <60 dB(A)
Approvals and Product Certifications
Argentina (S mark)
Australia/New Zealand (RCM)
Canada (cTUVus & ICES-003)
China (CCC)
European Union (CE)
European Union (GS Mark)
India (BIS)
Japan (VCCI)
Mexico (NOM)
Russia/Eurasian Economic Union (EAC)
South Korea (KC)
Taiwan (BSMI)
US (cTUVus & FCC)
Barcode Reading
Codabar
Code 128
Code 3 of 9
EAN-13
EAN-8
Interleaved 2 of 5
PDF417
QR
UPC-A
UPC-E
Bundled Software
Capture Pro Limited Edition
Smart Touch
Data Security This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Read more about data security.
Dimensions & Weight
Size with tray in the upright position:
Height: 254 mm / 10 in.
Width: 457.2 mm / 18 in.
Depth: 370.84 mm / 14.6 in.
Weight: 15.3 kg / 33.8 lbs
Electrical Requirements 100-240 V (International); 50-60 Hz
Environmental Certification
2008 EuP
ENERGY STAR Qualified
EPEAT Gold
File Format Outputs
BMP
JPEG
Single-page TIFF
Microsoft Excel
Microsoft Word
Multipage TIFF
PDF
Text searchable PDF
PNG
RTF
Image Output Resolution Options
Up to 1200 dpi
Network Protocols
DHCP (or static IP)
TCP/IP
Operating System Compatibility
WINDOWS 10 (32- and 64-bit) (Tested on Release 1507 only)
WINDOWS 7 SP1 (32-bit and 64-bit)
WINDOWS 8.1 (32-bit and 64-bit)
WINDOWS Server 2012 X64 Editions
WINDOWS Server 2016 X64 Editions
WINDOWS Server 2019 X64 Editions
Ubuntu 16.04 64-bit and 32-bit
Ubuntu 18.04 64-bit
Neokylin-NKLD-V7_U2-ZX64-REL-build54
Operating Temperature / Operating Humidity
Operating Temperature 10-35° C (50-95° F)
Operating Humidity 15% - 80% RH
Operator Control Panel 3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons
Optional Software
Capture Pro Software
Info Input Solution
Paper Path Options Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected
Perfect Page Image Enhancement Software
Adaptive threshold processing
Add or remove border
Aggressive cropping
Auto white balance
Autocrop
Automatic Brightness/Contrast
Automatic color balance
Automatic color detection
Automatic orientation
Automatic photo cropping
Background color smoothing
Barcode reading
Black and white image segmentation
Brightness and contrast adjustment
Color-on-the-fly toggle patch
Content-based blank page removal
Continuous Scanning Mode
Controlled stacking
Deskew
Digital stamping
Dual stream scanning
Electronic color dropout
Enhanced color adjustment
Enhanced color management
Enhanced jam recovery
Fixed cropping
Fixed thresholding
Halftone removal
Image edge fill
Image hole fill
Image merge
Image split
Intelligent Document Protection
Interactive multifeed with image display on host
Interactive Operator Control Panel (OCP)
iThresholding
Lone Pixel Noise Removal
Majority rule noise removal
Multicolor dropout
Multi-lingual auto orientation
Orthogonal rotation
Output Compression-CCITT Group IV, JPEG, Uncompressed Output
Rear exit
Rear side printer
Relative cropping
Sharpening
Sleeve scanning (for scanning A3 documents or multiple small documents)
Snap to Size
Streak filtering
Ultrasonic Multifeed Technology
Power Consumption
Running: less than 50 watts
Sleep Mode: less than 4 watts
Standby: less than 0.3 watts
Recommended Daily Volume
Up to 45,000 pages per day
Recommended PC Configuration INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more
Scanning Technology
Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3)
Standard Software And Drivers
ISIS Drivers
LINUX (TWAIN and SANE) Drivers
TWAIN Drivers
WIA Drivers
Citrix certified
KOFAX certified
|
