Product Summary:
 Up to Scan Speed 60ppm
Up to Res 600 x 600 dpi
100 Sheets ADF Capacity
1024MB Memory Capacity
9K Pages Daily Duty Cycle
USB, Network & Wireless
One Year Return to Base Warranty
Product Description:

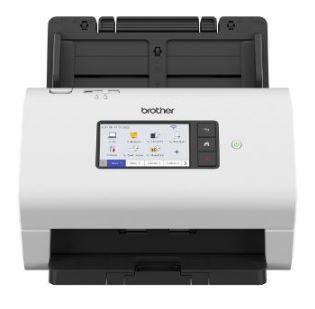

High-Performance, Professional Desktop Document Scanner
The ADS-4900W is designed to maximize your productivity by making uninterrupted, high-volume scanning effortless and simple in fast-paced environments.
Fast and reliable
With its large 100-sheet ADF, 60ppm scanning capability, and 2-sided (duplex) scanning up to 120ipm, the ADS-4900W has been designed to keep up with the fast pace of your business
Simple and intuitive
In addition to the user-friendly interface, one-touch scanning, and a large, 10.9cm touchscreen, you can automate your scanning and streamline work processes
Convenient connectivity options
Connect your way with convenient options available, including USB 3.0, USB host, Dual Band (2.4Ghz & 5Ghz) Wi-Fi and ethernet
Basic Specs
DOCUMENT SIZE - MULTIPLE PAPERS - WIDTH: 50.8 mm to 215.9 mm
DOCUMENT SIZE - MULTIPLE PAPERS - LENGTH: 50.8 mm to 355.6 mm
DOCUMENT SIZE - SINGLE PAPER - WIDTH: 50.8 mm to 215.9 mm
COLOUR / BLACK: Yes / Yes
DUPLEX SCAN: Yes
COLOR DEPTH - INPUT: 48-bit colour processing
COLOR DEPTH - OUTPUT: 24-bit colour processing
RESOLUTION - OPTICAL: Up to 600 dpi × 600 dpi
RESOLUTION - INTERPOLATED: Up to 1,200 dpi × 1,200 dpi
SCANNING WIDTH: Up to 215.9 mm
GRAYSCALE: 256 levels
PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT): 300 mm x 236 mm x 247 mm
WARRANTY: 1-year Return to Base Warranty
General
MEMORY CAPACITY: 1024MB
ADF (AUTOMATIC DOCUMENT FEEDER): Up to 100 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
WEIGHT: 3.37 kg
Display
TOUCHSCREEN LCD (LIQUID CRYSTAL DISPLAY): 4.3 in. (109.2 mm) TFT colour LCD screen
Operation
POWER SOURCE: AC: 100-240 V, 50/60 Hz
POWER CONSUMPTION - SCANNING: Approx. 34W
POWER CONSUMPTION - READY: Approx. 7.7W
POWER CONSUMPTION - POWER SAVING / DEEP SLEEP: Approx. 1.7W
POWER CONSUMPTION - POWER OFF: Approx. 0.1W
TEMPERATURE - OPERATING: 5°C to 35°C
HUMIDITY - OPERATING: 20% to 80%
HUMIDITY - STORAGE: 10% to 90%
Compliance
TWAIN COMPLIANT - WINDOWS®: Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN COMPLIANT - MAC OS: macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA COMPLIANT - WINDOWS®: Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA COMPLIANT - MAC OS: macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISISTM COMPLIANT - WINDOWS®: Windows 7 (SP1) / Windows 8.1 / Windows 10
Interface
USB: USB 3.0
LAN: 10Base-T/100Base-TX
WIRELESS LAN: 2.4G/5G
Infrastructure Mode : IEEE 802.11a/b/g/n
Wi-Fi Direct : 802.11a/g/n
Network
WIRELESS NETWORK SECURITY: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
SETUP SUPPORT UTILITY
WPS: WLAN Assistant
|
