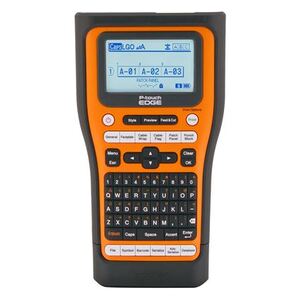

The Brother PT-E560BTVP is your ultimate labelling companion. Prints up to 24mm wide labels fast, with auto cutter, Bluetooth and USB Type C connectivity. Dedicated keys for common electrical and network labelling tasks, QR code printing and tested-to-the-extreme TZe Pro Tapes or heat shrink tubes. Boost your efficiency on any worksite with this top-tier labelling machine.
Key features:
Fast print speeds of up to 30 labels per minute
Automatic (full & half) cutter with easy peel function to print multiple labels in one continuous strip
Up to 24mm wide labels
Large backlit display
Connect and print easily via your phone using Bluetooth or a desktop PC using USB
Up to 6 “one-touch” function keys for general label, faceplate, cable flag/wrap, punch down block and patch panel ID
Add QR codes or 2D barcodes and logos to your labels
Compatible with Brother’s TZe range of tapes with labels tested to the extreme and HSe heat shrink tubes
Technical Specifications:-
General
Hardware Type HandHeld PC Connectable
Keyboard Qwerty & Numeric
Feed Yes
Display
Display Type LCD (Back-light)
LCD Display 18 Characters x 5 line LCD
Printer
Engine Direct thermal
Print Speed USB Power adapter: 30 mm/sec
Batteries: 20 mm/sec
Printer Resolution 180dpi
Emulation Raster mode
Memory Local File Memory: 178,200 Characters or 99 files, Transferred File Memory: 99 each for templates/databases/images/symbols
Printer OS Compatibility "Windows 11, Windows 10 (32&64bit) macOS 12-15¹
Mobile Operating System Android 5.0 or greater, iOS 12 or greater
Labeller
Cable Labelling Function 8 Kinds: General, Faceplate, Cable Wrap, Cable Flag, Patch Panel / Terminal Block / Distribution board, Punch Block,
Heat Shrink Tube, Self Laminate. Also via Mobile Cable Label Tool App
Built In Languages 6 Kinds: English, Arabic, Persian, Thai, Vietnamese, T.Chinese
Fonts Labeller 14 built in
Font Names Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Font Sizes 8 kinds (Auto/ 6/9/12/18/24/36/42/48pt)
Font Styles 10
Font Style Names Normal, Bold, Outline, Shadow, Solid, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid
Font Width 5
Font Width Names x1/2, x2/3, Normal, x3/2, x2
Frames and Backgrounds 7 Frames
Characters and Symbols 684 Chars / 960 Symbols
BarCodes Yes
BarCode Names CODE39, ITF 2/5, EAN13, EAN8, UPC-A, UPC-E, CODABAR, GS1-128 (UCC/EAN128), CODE128, QR Code (model 1, model 2, micro QR, GS1), Datamatrix
1D barcodes only for transferred templates; ISBN-2, ISBN-2, POSTNET, Laser Bar Code, GS1 DataBar(RSS)6, Intelligent Mail Barcode
2D barcodes only for transferred templates; PDF417, MaxiCode, AztecCode, GS-1 Composite
Auto Number Yes (1 - 99, Normal, Simultaneous, Advanced)
Auto Format Yes
Underline Yes
Multi Line Print 7
Repeat Print Yes
Mirror Print Yes
Rotate Print In Label Type setting
Vertical Print Yes (in the style setting)
Print Preview Yes (Real Preview)
Software
Software Available Windows: P-touch Editor 6, Printer Setting Tool, Driver
Mac: P-touch Editor 6
Ptouch Editor Software Ptouch Editor Included
Microsoft Office Add-in function - Software Yes
Link to Database Yes
Template Transfer to Machine Yes
Mobile Applications Pro Label Tool, Mobile Transfer Express, Print SDK
Pro Label Tool iOS / Android
Mobile Transfer Express iOS / Android
Connectivity
Interface USB 2 Type C, Bluetooth Ver: 3.0
Bluetooth Bluetooth Ver: 3.0, SPP: iAP
USB interface cable USB A-C Cable (For data and power)
Consumables
Tape Type TZe laminated & non-laminated, HSe Heat Shrink Tube
Tape Widths 3.5, 6, 9, 12, 18, 24
Heat Shrink Tube Yes
Print Height Max 18mm
Print Length Max -
Tape Cutter Auto Full Cut / Half Cut / Scissors
Tape Half Cutter Yes
Tape Length 8 Metres
Tape Length Setting Auto / 10mm-999mm
Inbox Consumables TZe-FX251 (24mm Black/White Flexible ID 8m)
Weights and Measurements
Size 132(W) x 244(D) x 80(H) mm
Weight 1050g (without tape & batteries)
Size With Carton 393(W) x 126(D) x 334(H) mm
Weight With Carton 3.10 Kg
Power Supply
Batteries Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours
AC Adaptor USB Type-C: Universal
Optional Power Rechargeable Li-ion Battery: 7.2 V (BA-E001) - Charging Time Approx 3 hours
Options
Carry Case Yes (Included)
Environment
Auto Power Off USB Charger: Off ~12hr
Li-ion Battery: Off ~ 1hr
Other
Warranty 3 Years Return To Base
