Product Summary:
 Up to Output Width 44"
Up to Res 2400 x 1200 dpi
4 picoliter Ink Droplet
Two-media roll system
Windows & Mac Compatible
USB 2.0 & Ethernet 10/100
One Year on Site Warranty
Product Description:
The Canon imagePROGRAF iPF840 MFP M40 44" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD and ECAD, with outstanding ease-of-operation to handle all-purpose, office projects. The iPF840 MFP M40 provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.
Printer Type 5-Color 44-inch Printer
Scanner Type Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Scan Speed: 13 ips monochrome, 3 ips color
1,200 dpi
Non-firing nozzle detection and compensation
Nozzle Pitch
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
OS Compatibility
Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX10.6.8 - 10.10)
Standard Interfaces
USB 2.0 High-Speed 10/100/1000 Base-T/TX
Scanner: USB 3.0 and USB 2.0 High-Speed
Ink Droplet Size
4 picoliter
Ink Capacity
330ml , 700ml per color2
Ink Droplet Size
Dye/Pigment Reactive Ink
Color Set
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Hard Drive 320MB
Paper Sizes
Scanner:
Width: 42 inch document width (40 inch image width)
Length: 315 (JPG or PDF), 590 (TIFF)
Media Width
Cut Sheet - 8 - 44
Roll Feed - 10 - 44
Media Thickness
0.07-0.8mm
Scanner0.079in (2mm)
Maximum Roll Print Length
Roll Feed - 59' 3 Cut Sheet - 63
Maximum Media Roll Diameter 5.9
Borderless Printing Width - 10, 14, 17, 24, 36, 42
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages
GARO (Canon Proprietary) HP-GL/2, HP-RTL
Noise Level Approx
Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or less
Physical Dimensions 75(W)x 51(D)x 45(H)
Box Dimensions 84(W)x62(D)x46(H)
Weight
Approximately 417lbs
Box Weight Approximately 697lbs
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 190W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Operating System: Windows 7
All-in-One HD Multi-touch PC
User-replaceable items
Print Head: PF-04Maintenance Cartridge: MC-10, MC-09Ink Tanks:

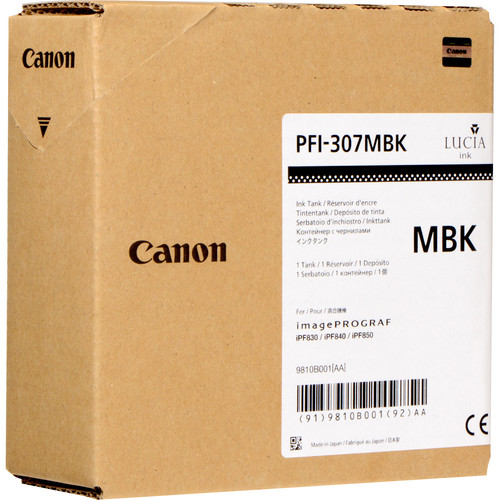

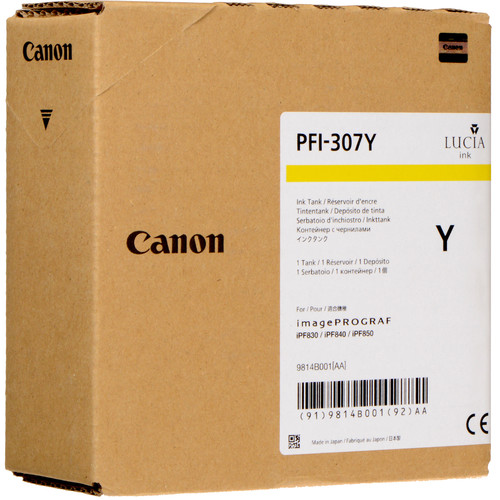

PFI-307 (330ml: C, M, Y, BK, MBK)

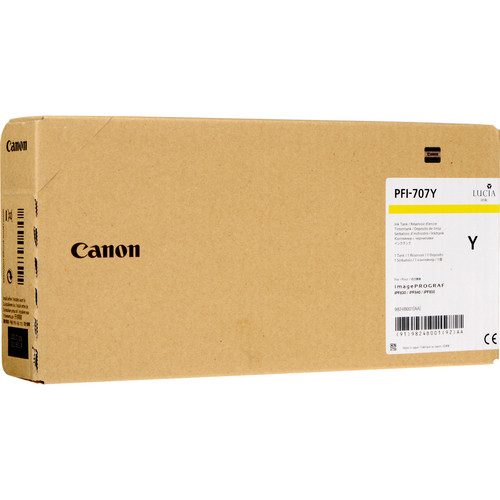

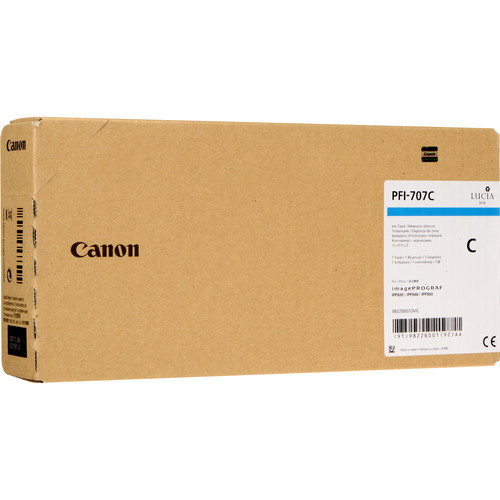

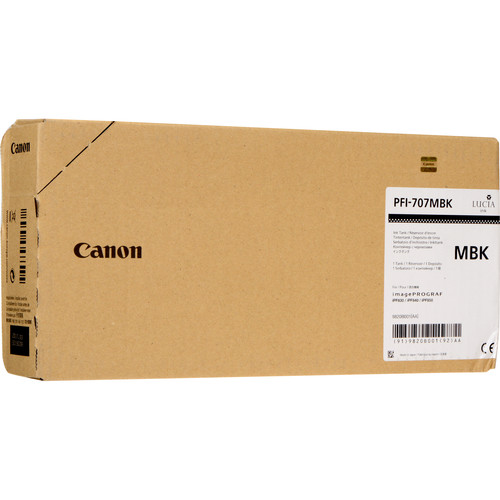

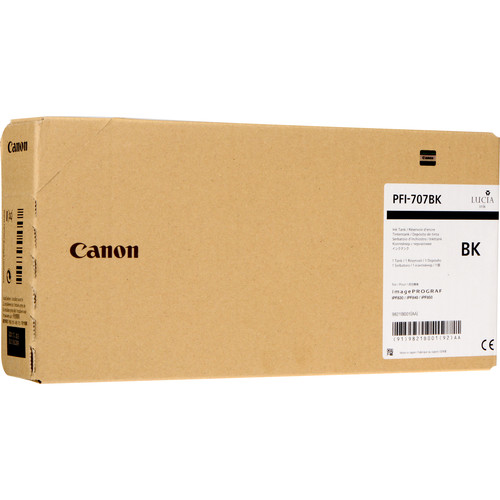

PFI-707 (700ml: C, M, Y, BK, MBK)
Software Included
SmartWorks MFP, Direct Print & Share
Direct Print Built In Card Reader Functions
Software
Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution 2,400 x 1,200 dpi (Max)
Scanner:
Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions: 9600dpi interpolated
|
