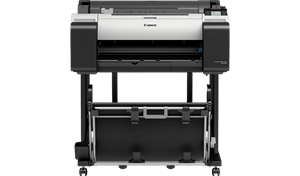

Canon IPF TM-205 24" Large Format Inkjet Printer

Product Description

Print PDF, HP-GL/2 and JPEG files directly from USB flash drives on the quiet but highly productive imagePROGRAF TM-205. The compact inkjet printer has built-in HDD and produces exceptional print quality with the unique Lucia TD ink system. Compact and affordable, with your new Canon you can copy, scan and print posters, GIS and CAD files in large format, high definition long lasting colour, quickly, easily, and economically.

Printer Type
5 Colour 24"/610mm
Print Technology
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles 15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi (2 lines)
Ink Droplet Size
minimum 5 pl per colour
Ink Capacity
Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type
Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow
OS Compatability
Microsoft Windows 32 Bit: Windows 7, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10, Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016
Apple Macintosh: OSX 10.10.5 - OSX 10.11, macOS 10.13
Printer languages
SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port: USB Memory Direct Print
USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 1-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
MEMORY
Standard Memory 128GB with 2GB Physical Memory
Hard Drive 500GB
PRINTING SPEED CAD Drawing
Plain Paper (A1 page size)
0:24 (Fast Economy Mode)
0:27 (Fast)
0:42 (Standard)
Poster
Plain Paper (A1 page size)
0:25 (Fast)
0:44 (Standard)
Heavy Coated Paper (A1 page size)
0:55 (Fast)
1:22 (Standard)
Media handling
Media Feed and Output
Roll paper: One Roll, Uppper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 -610 mm
Cut sheet: 203.2 - 610 mm
Media thickness
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter 150 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for others: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Manually switchable by user
Borderless Printing Width (Roll Only)
515mm (JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 12", 16", 20", 300mm, 500mm, 600mm
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: 20 sheets on A2 landscape (excludes strong curled condition)
DIMENSIONS AND WEIGHT
Physical Dimensions and Weight
Main Unit, Stand and Basket
982 x 887 x 1060 mm (Basket Open)
982 x 757 x 1060 mm (Basket Closed)
52 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1152 x 913 x 705 mm, 69 kg
Stand + Basket 1155 x 824 x 268 mm, 18 kg
POWER AND OPERATING REQUIREMENTS
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 69 W or less
Sleep mode: 3.6 W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment
Temperature: 15~30?
Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)
Regulations
Europe: CE mark, Russia: EAC
Certificates
TUV, CB
WHAT'S INCLUDED
What's in the box?
Printer, 1 x print head, 3-inch paper core attachment, Power Cable, UK Power cord (240V,3P), 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet
User software CD-ROM (Win)
PosterArtist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included
imagePROGRAF TM-Series Printer Driver, Print Plug-In for Office, Quick Utility Toolbox and PosterArtist Lite
Other software available as Download from Web.
OPTIONS
Optional Items
Printer Stand: SD-23
2/3" Roll Holder: RH2-28
CONSUMABLES
User Replaceable Items
Ink Tank: PFl-120 (130ml), PFl-320 (300ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
