Product Summary:
 Up to 36inch Wide Printing
Up to Res 2400 x 1200 dpi
500GB Hard Disk Drive
5 Picolitre Ink Droplet
Windows & Mac Compatible
USB, Network & Wireless
One Year on Site Warranty
Product Description:
A HIGH-SPEED, 36-INCH PRINTER WITH ADVANCED MEDIA HANDLING AND INTUITIVE USABILITY
Fast printing
Up to 3.2ppm for A1 CAD drawings by increased print speed and data processing
Increased productivity
A smart media handling system with simple and easy software solutions support highly efficient production workflows
High-volume production
Uninturrupted ink tank replacement, enhanced data processing and a dual roll option maintain impressive print speeds •
Flexible printing
No more complicated post-production with free-size and three-side borderless printing functionality
Outstanding quality
Innovative ink and printing processes promise Canon’s superb print quality
Reliable security
Enhanced protect delivers robust document and device security
Weather resistance
Full pigment LUCIA TD ink provides greater durability with the water resistant media option
Printer Technology
Printer Type 5 Colour 36"
Print Technology
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles
Total : 15,360 nozzles MBK : 5,120 nozzles BK, C, M, Y : 2,560 nozzles each
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch 1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size
minimum 5 pl per colour
Ink Capacity
Bundled Starter Ink: 330ml (MBK)/160ml (BK, C, M, Y)
Sales Ink: 160ml/330ml/700ml
Ink Type
Pigment inks : 5 colour MBK/BK/C/M/Y
OS Compatibility
Microsoft Windows 32 Bit: 7, 8.1, 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
Apple Macintosh: macOS 10.12.6～macOS 10.15
Printer Languages
HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory
128GB (Physical memory 2GB)
Expansion slot : No
Hard Drive
500GB (Encrypted)
Print Speed
CAD Drawing
Plain Paper (A1):
0:18 (Fast Economy Mode), 3.2ppm
Plain Paper (A0):
0:34 (Fast Economy Mode)
0:37 (Fast)
1:04 (Standard)
Poster
Plain Paper (A0):
0:37 (Fast Economy Mode)
0:42 (Fast)
1:15 (Standard)
Heavy coated Paper (A0):
1:38 (Fast)
2:33 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Front-loading, Front Output
Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper : 152.4mm - 917mm
Cut sheet 152.4mm - 917mm
Media Thickness
Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length
Roll paper : 101.6mm (Excluding Cloth, Canvas, Tracing Paper and Translucent Matte Film media. These media are 200mm.)
Cut sheet : 203.2 mm
Maximum Printable Length
Roll paper : 18 m (Varies according to the OS and application)
Cut sheet : 1.6 m
Maximum Media Roll Diameter
170 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended Area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable Area
Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Roll Paper: Two rolls. Automatic switching is possible.
Cut Sheet: 1 sheet
Media Take-Up Roll Unit
Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Borderless Printing Width (Roll Only)
[Recommended] 515mm(JIS B2), 594mm(ISO A1), 728mm(JIS B1), 841mm(ISO A0), 10", 14", 17", 24", 36"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 6", 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm and custom roll width (152.4 - 917mm)
*"Printable" size is printed as micro marzin tecnology, that means is not used with hole of platen.
Maximum Number of Delivered Prints
[Multi-position basket]
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper 10 sheets, Coated paper 20 sheets, Plain paper 20 sheets (excludes strong curled condition)
[Stacker]
Basket position : 1 sheet (excludes curled condition)
Folding position : A0/A1 portrait, CAD drawing, Plain paper 20 sheets, Uncoated paper 100 sheets (excludes curled condition)
Stacking position : A1/A2 landscape, CAD drawing, Plain paper 100 sheets, Uncoated paper 100 sheets (excludes curled condition)
Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 115 W or less
Sleep mode: 2.1 W or less　
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment
Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: 51 dB (A) (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
Standby: 35 dB (A) or less
Operation: 6.9 Bels or less (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
Regulations
Europe: CE mark,
Other countries: CB certification
Environment Certificates
TUV, CB
Dimensions and Weight
Physical Dimensions and Weight
W x D x H
1390 x 984 x 1168 mm (Basket Open)
1390 x 766 x 1168 mm (Basket Closed)
105 kg (including Roll Holder Set and Roll unit, excluding ink and print heads)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1606 x 903 x 1061 mm
149 kg
Roll Unit: 1524 x 562 x 461 mm
26 kg
What's Included
What's in the Box?
Printer, 1 x Print Head, 1 x Roll holder (spool), 3” Paper Core Attachment, 1 Set of Starter Ink Tanks, Set Up Guide, Safety/Standard, Environment Leaflet
User software CD-ROM (Windows), PosterArtist Lite CD-ROM
EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included
imagePROGRAF TX Printer Driver and PosterArtist Lite
Other software available as Download from Web.
Options
Optional Items

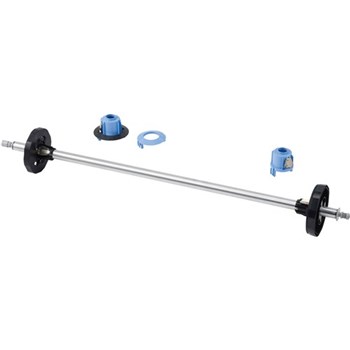

2/3" Roll Holder: RH2-34

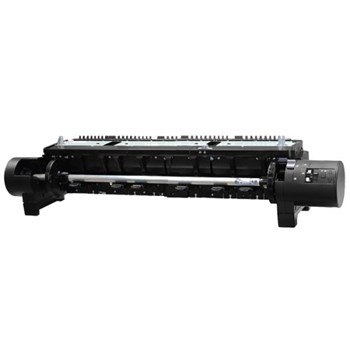

Roll Unit : RU-32
Stacker : SS-31
Consumables
User Replaceable Items
Ink Tank: PFl-110 (160ml), PFl-310 (330ml), PFl-710 (700ml)
Print Head: PF-06
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
|
