Product Summary:
 9.0 ipm Black & 5.5 ipm Colour
Up to Resolution 4800 x 1200 dpi
50 Sheets Paper Tray Capacity
Google Cloud & Apple AirPrint
1.44" / 3.6cm OLED Display
USB & Wireless Interface
1-Year Return to Base Warranty
Product Description:

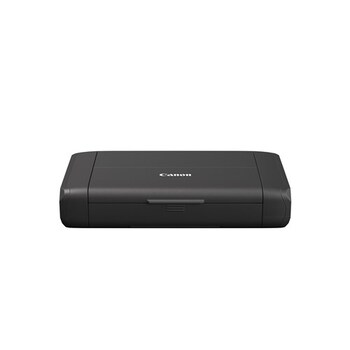

PIXMA TR160 wireless portable printer. With its rechargeable battery, smartphone control, and versatile wireless connectivity, this printer allows you to easily print professional-looking documents no matter where your work takes you.
Key Features
Easy printing on the go—Print text or borderless photos on the go up to A4 size with portable printing and easy wireless connectivity from a PC, laptop, or smart device.
Portable power – Print up to 330 pages from a new battery’s full charge (via USB) and top up in the office, at home, or on the move via a USB Type-C cable.
Built-in template prints - Save time with quick-fire printing. Store up to 5 custom templates to print contracts and forms straight from the printer.
Flexible battery – Easily check remaining battery levels via the built-in indicator. Stuck with a flat battery? Quick USB charging allows 4 colour pages to be printed out via USB after only 5 minutes of USB 1.5A charging.
Easy mobile printing - Connect directly with a smartphone via the Canon PRINT app on AirPrint (iOS), Mopria (Android), even when there is no Wi-Fi router.
Consumables
PGI-35, CLI-36
General Features
Model PIXMA TR160 with battery
Ink Type PGBK CRG, Color CRG (C/M/Y/K)
Maximum Print Resolution 4,800 dpi x 1,200 dpi
Size Approx. 322 x 210 x 66 mm
Approx. 12.7 x 8.3 x 2.6 inch
Weight Approx. 2.3 kg
Approx. 5.1 lbs
Display 1.44" / 3.6 cm OLED (Monochrome)
Interface USB-B Hi-Speed
Connectivity Wireless LAN 2.4GHz & 5GHz, Direct Connection (Wireless LAN)
Auto Double-Sided Printing N/A
Support Media Plain Paper, High-Resolution Paper (HR-101N), Photo Paper Plus
Glossy II (PP-301), Photo Paper Glossy (GP-701), Matte Photo Paper
(MP-101), Double Sided Matte Paper (MP-101D), Envelope,
Greeting Card (manufactured by Avery and RedRiverPaper),
Magnetic Photo Paper(MG-101), Restickable Photo Paper (RP-101)
Paper Size A4, A5, B5, LTR, LGL, Envelopes(DL, COM10), Square (5"x5",
3.5"x3.5"), Card Size(91 x 55 mm), 4"x6", 5"x7",7"x10", 8"x10"
[Custom size] width 55 mm - 215.9 mm, length 89 mm - 676 mm
Paper Size (Borderless) A4, LTR, 4"x6",5"x7",7"x10", 8"x10", Card Size(91x55 mm), Square (5"x5", 3.5"x3.5")
Paper Handling (Maximum Number) Plain Paper (64 g/m2): 50
Photo Paper (4” x 6”): Photo Paper Plus Glossy II (PP-301), Photo
Paper Glossy (GP-701), Matte Photo Paper (MP-101): 20
Photo Paper (5” x 7”): Photo Paper Plus Glossy II (PP-301):10
Paper Weight Plain Paper: 64 g/m2 -105 g/m2,
Canon paper: max paper weight: approx. 275 g/m2 (Photo Paper Plus Glossy Ⅱ PP-301)
Print Speed
Document: Colour Approx. 5.5 ipm
Document: Black & White Approx. 9.0 ipm
Photo (4” x 6”) 53 seconds
Power Consumption
Off Approx. 0.15 W
Standby (MFP: scanning lamp is off), USB connection to PC, Approx. 1.1 W
Standby (all ports connected, MFP: scanning lamp is off) Approx. 1.6 W
Time to enter Standby mode Approx. 3 min 07 sec
Input Power AC 100-240 V, 50 / 60 Hz
Environment
Operating Environment Temperature: 5 - 35 °C Humidity: 10 - 90 %RH (no dew condensation)
Recommended Environment Temperature: 15 -30 °C Humidity: 10 - 80 %RH (no dew condensation)
Storage Environment Temperature: 0 - 40 °C Humidity: 5 - 95 %RH (no dew condensation)
Acoustic Noise (PC Print)
Quiet Mode Available
Acoustic Noise(PC Print ) Plain Paper Approx. 40.5 dB(A)
Printer Head/ Ink
Number of Nozzles Total 1,856 nozzles (PGBK 320 nozzles, BK/Y 256 nozzles, C/M 512 nozzles)
Compatible Inks PGI-35, CLI-36
Printable Width Up to 203.2 mm (8 inches), Borderless: Up to 216 mm (8.5 inches)
Printable Area
Bordered Printing Top / Bottom / Right / Left margin: each 0 mm
• #10 Envelope/DL Envelope
Top: 3 mm, Bottom: 12.7 mm, Right: 3.4 mm, Left: 3.4 mm
• Square (127 mm x 127 mm)
Top: 6 mm, Bottom: 6 mm, Right: 6 mm, Left: 6 mm
• Square (89 mm x 89 mm)
Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
• LTR/LGL
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
• Other
Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
Printing Solution
Available for AirPrint / Mopria / Canon Print Service (for Android) / PIXMA
Cloud Link / Canon PRINT (for iOS / Android)
Minimum System Requirements: Windows 11, Windows 10, Windows 8.1, Windows 7 SP1
MacOS v11.7.6 ~ 10.14
iOS, iPadOS, Androidtm, ChromeOS
|
