Product Summary:
 Up to 36ppm Mono Print
Up to Res 1200 x 1200 dpi
250 Sheet Input Tray
2 GB RAM Memory
Automatic 2-Sided Printing
USB, Network & Wireless
One Year On-site Warranty
Product Description:
Designed to meet small office and workgroup needs, the latest Canon imageCLASS LBP243dw printer is equipped with enhanced print speeds, scalable paper input capacity, versatile connectivity features and more.
The compact entry-level desktop printer
Easy to use and small enough to place on a desk. This simple, fast, and efficient black-and-white printer will suit any office environment looking to print sharp documents quickly.
Securely protect your documents
Protect your documents, device, and network with comprehensive security with TLS1.3 enabling authentication, encryption, and integrity.
Easy to operate
The printer is easy to set up and operate. Setup your printer settings via the LCD or remotely using a web browser.
Boost productivity
Save valuable time with single-sided print speeds of up to 36 ppm and a warm-up time of only 14 seconds. You can add 250 sheet paper cassettes to increase productivity in busy offices.
Allows you to stay connected
Mobile connectivity means you can conveniently print from smartphones or tablets, either with the Canon PRINT Business app, AirPrint® (ISO), or Mopria™ (Android).
Expandable paper capacity
Expand paper handling capability up to 900 sheets by adding an optional paper feeder.
General Specifications
Machine Type Laser printer
Available Functions Print
Print Specifications
Print Speed
Single-sided: Up to 36 ppm (A4) Up to 58.8 ppm (A5-Landscape)
Double-sided: Up to 30.2 ipm (A4)
Printing Method Monochrome laser beam printing
Print Resolution Up to 1200 x 1200 dpi
Warm-up Time Approx. 14 seconds or less from power on
First-Print-Out Time Approx: 5.0 seconds or less
Printer Languages UFRII, PCL 5e1, PCL6
Fonts 45 PCL fonts
Print Margins 5 mm-top, bottom, left and right
Toner Saver Mode
Encrypted Secure Print
Secure Print
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
Advanced Printing Features
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
Media Handling
Paper Input (Standard) 250-sheet cassette 100-sheet multi-purpose tray
Paper Input (Option) 550-sheet cassette
Maximum Paper Input Capacity Up to 900 sheet
Paper Output 150-sheet
Media Types Plain paper, Recycled paper, Heavy Paper, Thin paper, Coated paper, Label, Post card, Envelope
Media Sizes
Cassette (Standard and optional): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.
Multi-purpose tray: A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
Media Weights
Cassette (standard and optional): 60 to 120 g/m²
Multi-purpose tray: 60 to 199 g/m²
Double Sided Printing A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm 60 to 120 g/m2
Interface & Software
Interface Type USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
Operating System Compatibility
Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.13 & up
Linux
Network Protocol
Print: TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Management: SNMPv1, SNMPv3 (IPv4,IPv6)
Security : TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
Access Point Mode: WPA2-PSK (AES)
Software and Printer Management
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralized management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management, and remote diagnostics.
General Features
Recommended Monthly Print Volume 750 - 4,000 pages per month
Duty Cycle 80,000 pages
Processor Speed 1200MHz
Memory 1GB
Storage 4GB eMMC
Control Panel 5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
Dimensions with Trays (W x D x H) 399 mm x 373 mm x 249 mm
Weight Approx. 9.5 Kg
Operating Environment
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
Power Source 220-240V (±10%) 50/60Hz (±2Hz)
Power Consumption
Maximum: Approx. 1,250 W
Active printing: Approx. 480W
Standby: Approx. 6 W
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC): 0.29 kWh/week (230V)3
Noise Levels
Sound Pressure4:
Active: Simplex 54 dB or less
Duplex 53 dB or less
Standby: Inaudible5
Sound Power6:
Active: 68 dB
Standby: Inaudible7
Consumables
Cartridges

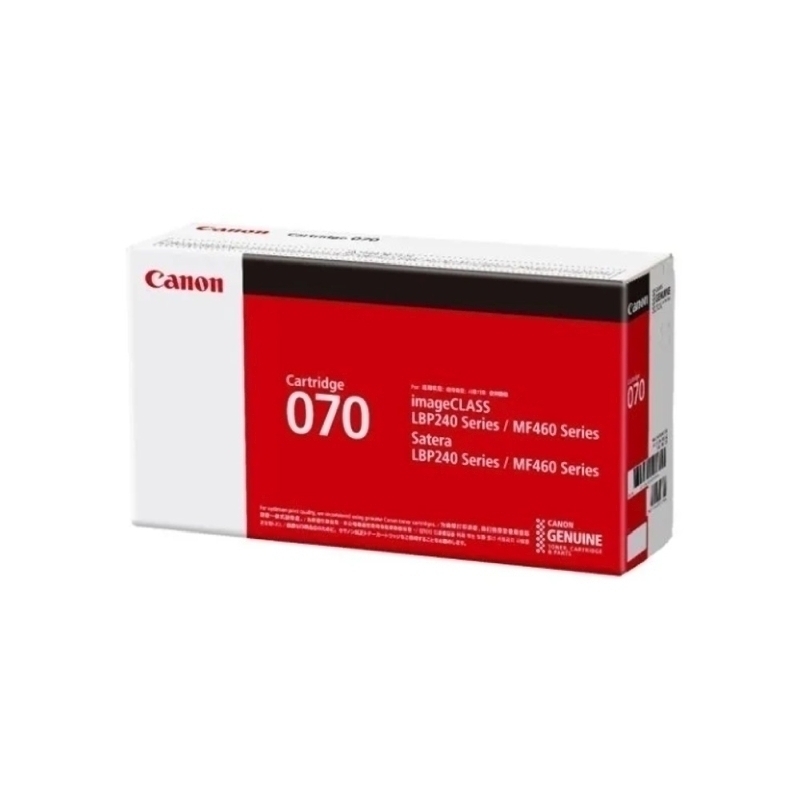

Cartridge 070 (3,000 pages8)9

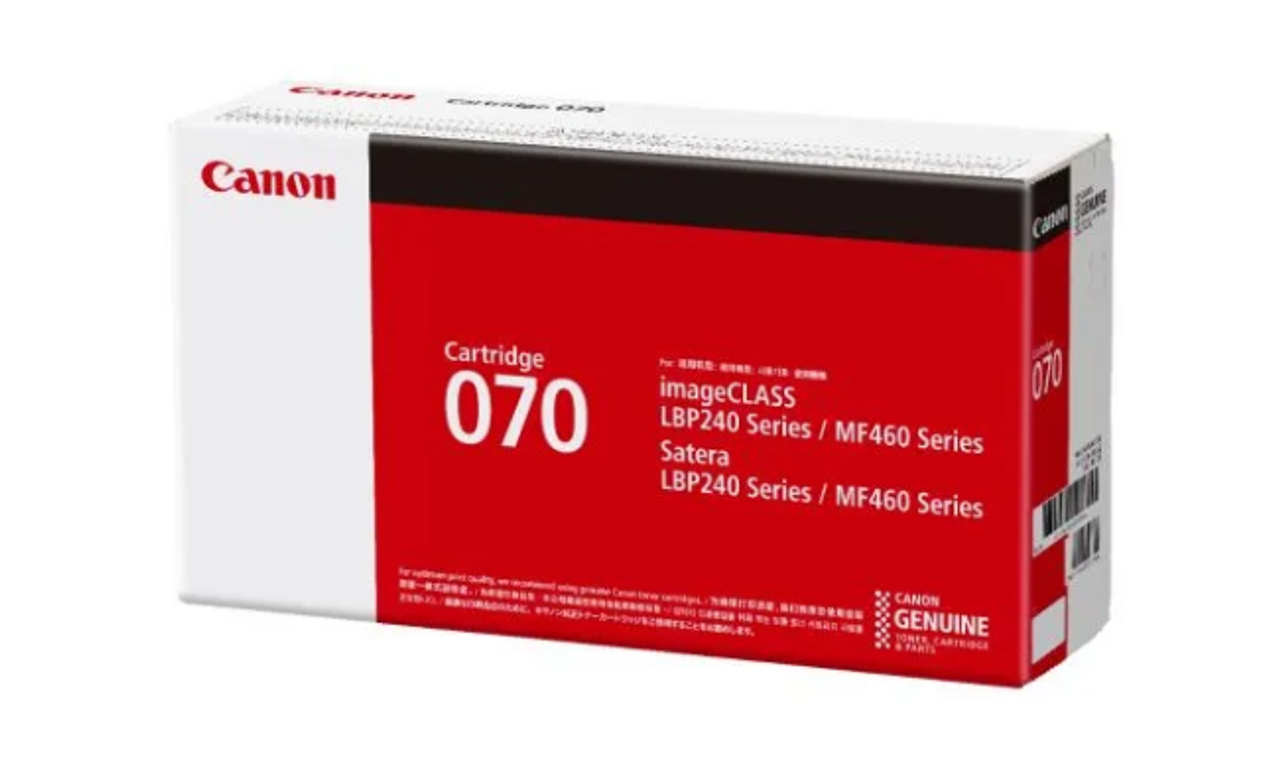

Cartridge 070H (10,200 pages10)11
Accessories & Options
Items Cassette Feeding Module-AH1
|
