Product Summary:
 Up to Scan Speed 60ppm/120ipm
Up to Optical Res 600 dpi
RGB LED Light Source
80 Sheets Feeder Capacity
7,500 Scans Daily Volume
USB 2.0 Interface
3-Year Limited Warranty
Product Description:

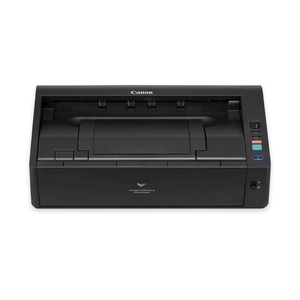

Ultra-compact A3 scanner for high volumes
A versatile and ultra-compact A3 scanner that is ideal for businesses processing large volumes of documents. It provides fast scanning speeds of up to 60ppm/120ipm and a capacity of holding up to 80 sheets.
Extremely compact
The DR-M1060 II is a uniquely compact A3 scanner – ideal in corporate office departments or decentralised branch offices that have limited desktop space. Users will appreciate the convenient operation of the front document feed and exit design.
Reliable and versatile paper handling
The U-turn and selectable straight paper path, with robust feeder, allows for smooth scanning of a variety of media types. This includes embossed cards, thick and thin media or 3m-long documents. The DR-M1060 II includes an array of technologies for reliable paper handling. Ultrasonic double feed detection helps prevent lost images, while the Double Feed Release (DFR) feature reduces interruptions by allowing users to choose to continue scanning or stop the job to resolve the double feed.
Highly productive scanning
The DR-M1060 II is extremely productive with ultra-fast duplex scanning speeds of up to 120ipm (A4) and a 80-sheet document feeder. Despite its small size, it is built for handling a large workload of up to 7,500 documents a day.
Great image processing capability
The DR-M1060 includes image processing features, such as the advanced text enhancement that produces clear and legible images even from faint text originals. Additional features like Auto Colour Detection, Auto Size and Deskew Correction, Text Orientation Correction and Customised Colour Dropout further enhance image quality and consistency.
Bundled software to improve productivity
Enjoy quick and easy scanning with CaptureOnTouch software for both ad-hoc and routine tasks. For scanning larger batches of documents, CaptureOnTouch Pro is ideal, with its multi-window and thumbnail views, plus flexible options like scan-to-folder, email and SharePoint.
Optional extras
The DR-M1060 II comes with a host of optional accessories to maintain a high level of productivity. This includes scan bound books, journals and fragile media with both the A4 and A3 optional Flatbed Scanner units. A 2D Barcode Module is also available that enables barcode recognition of QR codes, PDF417 and Data Matrix formats through the ISIS/TWAIN drivers.
Technical Specifications
Model Name imageFORMULA DR-M1060II
Type Office Document Scanner
Document Feeding Automatic or Manual
Document Size - Width 2 to 11.8”
Document Size - Length 2.8 to 17”
Long Document Mode Up to 118.1"
Document Weight U-turn Path: 7 - 32 lb. Bond Straight Path: 7 - 68 lb. Bond
Feeder Capacity Up to 80 sheets
Light Source RGB LED
Scanning Element One-Line Contact Image Sensor (CIS)
Optical Resolution 600 dpi
Output Resolution 100/150/200/240/300/400/600 dpi
Grayscale 8-bit
Color 24-bit
Scanning Modes Color, Grayscale, Black and White
Max. Scanning Speeds - Black and White Up to 60 pages per minute (simplex), up to 120 images per minute (duplex)
Max. Scanning Speeds - Grayscale Up to 60 pages per minute (simplex), up to 120 images per minute (duplex)
Max. Scanning Speeds - Color
200 dpi: Up to 60 pages per minute (simplex), up to 120 images per minute (duplex)
300 dpi: Up to 40 pages per minute (simplex), up to 80 images per minute (duplex)
Interface Hi-Speed USB 2.0
Weight 13.5 lbs.
Dimensions (H x W x D) 4.7" X 16.7" X 9.7" (trays closed); 8.3" X 16.7" X 17.3" (trays extended)
Power Consumption 32.5W or less (Sleep mode: 1.9W)
Operating Environment Temperature: 50°F to 90.5°F Humidity: 20% to 80% RH
Suggested Daily Volume Approx. 7,500 Scans
Bundled Software Canon CaptureOnTouch Scanning software, ISIS/TWAIN Driver
Supported Operating Systems Windows 10 (32-bit/64-bit), Windows 11, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other Features Auto Color Detection, Auto Page Size Detection, Auto Resolution Setting, Background Smoothing, Batch Separation, Character Emphasis, Color Dropout/Enhance Color, Deskew, Double-Feed Detection, Edge Emphasis, Folio Scan, Image Rotation, Moiré Reduction, Long Document Mode, MultiStream, Pre-Scan, Prevent Bleed-Through/Remove Background, Skip Blank Page, Text Enhancement, Text Orientation Recognition, Three-Dimensional Color Correction, Ultrasonic Double-Feed Detection, User Preferences
|
