Product Summary:
 45ppm Simplex & 90ipm Duplex
Up to Scan Res 600 x 600 dpi
4.3" Colour LCD Touchscreen
4,000 Scan Daily Volume
60 Sheets Feeder Capacity
USB, Network & Wireless
Windows Compatible
Product Description:
Robust and reliable high-quality scanning
Discover fast, reliable and intuitive scanning, with straightforward operation via a large colour touch screen and one-touch configurations. LAN, WiFi or USB options allow flexible connectivity, for ease and convenience across all types of scanning application and environment.
High performance
Consistently accurate colour image processing of up to 45ppm/90ipm streamlines production.
Maximised productivity
Save valuable time with simple operation via a large 4.3" LCD colour touch screen and one-touch configurations.
Advanced security
Centralised scanner user management enhances document security with various, customisable authentication methods.
Flexible connectivity
USB, LAN and WiFi connection options allow for smooth integration into any office environment, seamlessly connecting departments via the most convenient networks.
Features
Colour accuracy can be managed with 24-bit depth
Capable of scanning large documents in various resolutions and data formats
Sheetfed scanner is a good choice for scanning large documents
Type Desktop Sheet-Fed Scanner
Scanning Speed
Greyscale
200 dpi: 45 pages/min (Simplex) / 90 images/min (Duplex)
300 dpi: 45 pages/min (Simplex) / 90 images/min (Duplex)
Colour
200 dpi: 45 pages/min (Simplex) / 90 images/min (Duplex)
300 dpi: 30 pages/min (Simplex) / 60 images/min (Duplex)
Scanning Element Contact Image Sensor (CIS)
Light Source LED
Scanning Side Simplex / Duplex
Scanning Modes Black and White, Error Diffusion, Greyscale, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold, Colour
Scanner Features Folio Scanning, Double Feed Detection Ignore, 2D / Barcode
Output Resolution 100, 150, 200, 240, 300, 400, 600 dpi
Suggested Daily Volume (SDV) 4,000 scans a day
Media Handling
Document Size
Plain Paper
Width: 50.8 to 216 mm
Length: 54 to 356 mm (Up to 3,000 mm long with Long Document mode)
Business Card 50 x 85 mm or larger
Card (ISO Standard) 54 x 86 mm
Document Thickness and Weight
Plain Paper
Page Separation: 27 to 209 g/m² (0.04 to 0.25 mm)
Non-Separation: 27 to 255 g/m² (0.04 to 0.3 mm)
Business Card 380 g/m² (0.45 mm) or smaller
Card 1.4 mm or smaller
Auto Document Feeder (ADF) Capacity 60 sheets
Connectivity & Software
Interface USB 3.2 / 2.0, IEEE802.11b/g/n, 10Base-T/100Base-TX/1000Base-T
Software ISIS / TWAIN / WIA Drivers, CaptureOnTouch, CaptureOnTouch Job Tool
General
Power Requirements AC 100 - 240 V (50 / 60 Hz)
Power Consumption
Scanning (Max.) 22.5 W
Sleep Mode
100 - 120 V: 3.1 W
220 - 240 V: 3.4 W
With Power Switched OFF (Max.) 0.1 W
Operating Environment
Temperature 10 to 32.5°C
Humidity 20 to 80% RH
Dimensions (W x D x H)
When Trays Are Closed 291 x 247 x 242 mm
When Trays Are Opened 291 x 600 x 378 mm
Weight (Approx.) 3.3 kg (Without AC adapter)
Consumables & Accessories

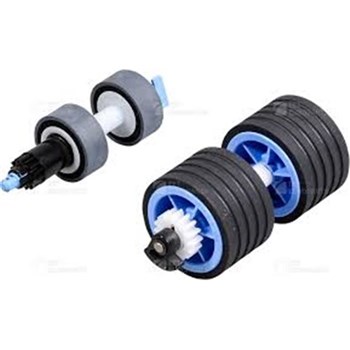

Options / Consumables Exchange Roller Kit, Carrier Sheet (Passport), Carrier Sheet (A4)
Accessories Flatbed Scanner Unit 102, Flatbed Scanner Unit 201
|
