Product Summary:
 7-Color 24" Wide Printing
Up to Res 2400 x 1200 dpi
3 GB Standard Memory
18,432 Number of Nozzles
±0.1% Line Accuracy
USB, Network & Wireless
One Year On-Site Warranty
Product Description:
Create stunning photographs and premium posters, ensuring precise colour replication and longevity.
Redefine creative boundaries with a larger colour gamut, the sustainable 24" 7-colour printer is designed for chain retail & franchised stores, as well as small photo shops.
High quality poster with vivid colours

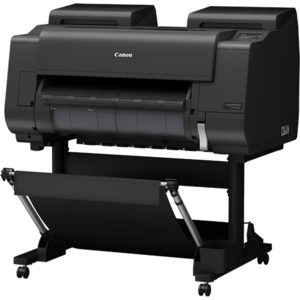

The Canon imagePROGRAF GP-2600S is built to achieve accurate colour reproduction with 7 colours. This includes grey and orange inks to expand the options for in-house design, retail and print-for-pay services.
Pantone coverage with new formulated ink
The new GP series has achieved 96% coverage¹ in Pantone's widely used PANTONE™² FORMULA GUIDE. This Solid Coated colour book is widely used in the industry, thanks to its high colour reproducibility. This also supports the printing of product advertisements and corporate colours.
Long term image preservation with new formulated ink
The newly developed LUCIA PRO II³ ink includes an advanced colour development process that retains colour in an image for much longer. As a result, printed images have an excellent lightfastness which are preserved for 200 years⁴.
Enhanced productivity
Transform printing workflows with easier media handling and simplified settings. Enhance efficiency with dual rolls, auto media loading, mirrored ink arrangement with high speed printing. With new print head monitoring function and auto alignment adjustment, masterpieces are created with confidence without image deterioration.
Specifications
Printer Type 7 Colours 24"
Print Technology Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles 18,432 nozzles (MBK/C/M/Y/O:1536nozzles x2, PBK/GY:1536nozzles x1）
Line Accuracy ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 600 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size minimum 4pl per colour
Ink Capacity Bundled Starter Ink: 1970ml (160ml for PBK & Grey, 330ml for others) Sales Ink: 160ml / 330ml / 700ml
Ink Type Pigment inks : 7 colours (Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey, Orange)
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13
Other Supported Job Submission Protocols Apple AirPrint
Printer Languages PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port: USB Memory (Direct Print) for PDF/JPEG files
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN1: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 3GB Expansion slot : No
Hard Drive 500 GB (Encrypted HDD)
Print Speed
Poster Plain paper (A1): 0:29 (Level 5)
Coated paper (A1)
0:47 (Fast)
1:23 (Standard)
Glossy Photo Paper (A1)
1:42 (Fast)
2:43 (Standard)
Media Handling
Media Feed and Output
Upper Roll Paper : One Roll, Upper-loading, Front Output
Lower Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 152.4 - 610mm
Cut sheet: 152.4 - 610mm
Media Thickness Roll/Cut : 0.07 - 0.8mm
Minimum Printable Length Roll paper: 101.6mm (Cross and canvas paper: 200mm) Cut sheet: 203.2mm
Maximum Printable Length Roll paper : 18m (varies according to the OS and application) Cut sheet : 1.6m
Maximum Media Roll Diameter 170mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet: Top: 20mm, Bottom:20mm, Side:3mm
Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet: Top: 3mm, Bottom: 12.7mm, Side: 3mm
Media Feed Capacity
Roll Paper: Two rolls. Automatic switching is possible
Roll Paper, Cut Sheet: Manual switching is possible
Cut Sheet: 1 sheet
Media Take-Up Roll Unit Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Borderless Printing Width (Roll Only)
[Recommended] 515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 364mm(JIS B3/B4), 420mm(ISO A2), 6’’, 8”, 12’’, 15’’, 16”, 18’’, 20’’, 22’’, 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Maximum Number of Delivered Prints
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10 sheets, coated paper less than 20 sheets
(excludes strong curled condition)
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation: 91W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Operating Environment
Temperature: 15-30℃, Humidity: 10-80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
Operation: Approx. 48dB(A) (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")
Standby: 35 dB(A) or less
Operation: 6.5 Bels or less (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")
Regulations
CE mark, UKCA mark
Environment Certificates
CB certfication, EPEAT GOLD2
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main unit + Stand
1110×984×1168 mm (Basket Opened）
1110×766×1168 mm (Basket Closed）
100kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight Printer (Main unit with pallet): 1338 x 912 x 1139 mm, 153kg
Roll unit: 1244 x 562 x 461 mm, 26kg
What's Included
What's in the Box?
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Stack Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included
Software available as Download from Web
Options
Optional Items 2"/3" Roll Holder: RH2-29
Roll Unit: RU-23
Consumables
User Replaceable Items Ink Tank: MBK/Orange: PFI-2100(160ml)/PFI-2300(330ml)/PFI-2700(700ml)
Others:PFI-3100(160ml)/PFI-3300(330ml)/PFI-3700(700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
|
