Product Summary:
 Up to 24inch Wide Printing
Up to Res 2400 x 1200 dpi
1 GB Standard Memory
4352 Number of Nozzles
4 Colour Pigments Inks
USB, Network & Wireless
One Year on-site-Warranty
Product Description:
Get cost-effective, professional prints with Canon imagePROGRAF TC-20, a simple-to-use 24" desktop printer, in small offices, retail shops, education or even work from home.
Boost efficiency with highly sustainable and small-footprint device
Operate seamlessly with easy paper setting and hybrid support to switch easily between office and home with software compatibility. Quickly and easily print vibrant, high-quality material from small offices, retail shops, schools or even work from home with a compact, EPEAT Gold1-rated device.
Specifications:-
Printer Technology
Printer Type 4 Colour 24"
Print Technology Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Capacity Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y)
Sales Ink: 70ml (BK, C, M, Y)
Ink Type Pigment inks : 4 colour BK/C/M/Y
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.14.6～macOS 12,x
Printer Languages SGRaster
Standard Interfaces
USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory 1GB
Expansion slot : No
Hard Drive N/A
Print Speed
CAD Drawing
Plain paper (A1, B&W): 0:33 (Standard)
Plain Paper (A1, Colour):
1:03 (Standard)
Poster
Plain Paper (A1):
1:10 (Fast)
2:08 (Standard)
Coated Paper (A1):
3:10 (Fast)
6:05 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Front-loading, Front Output
Cut Sheet : Auto sheet feeder
Media Width
Roll paper : 297mm - 610mm
Cut sheet: 210mm - 297mm
Media Thickness
Roll/Cut : 0.08mm - 0.28mm
Minimum Printable Length
Roll/Cut : 203.2mm
Maximum Printable Length
Roll paper : 4m
Cut sheet : 432mm
Maximum Media Roll Diameter
110mm
Media Core Size
Internal diameter of roll core: 2"
Margins Recommended Area
Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
(some photo mode: Top: 30mm, Bottom: 30mm)
Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Margins Printable Area
Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
(some photo mode: Top: 30mm, Bottom: 30mm)
Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Media Feed Capacity
Roll Paper: One roll
Cut Sheet: 100 sheets(A4), 50 sheets (A3)
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only) N/A
Maximum Number of Delivered Prints Desktop Basket (BU-06): Standard position - 1 sheet
Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 28W or less
Sleep mode: 2.4W or less (using all ports)
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.3W or less
Operating Environment
Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
Operation: Approx. 42.5 dB(A) (Plain paper, Standard mode, Line Drawing/Text mode)
Standby: 35 dB(A) or less
(Measured on ISO 7779 standard)
Regulations CE mark, UKCA mark
Environment Certificates
CB certfication, EPEAT GOLD1
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main Unit
968 x 545 x 395 mm (ASF Opened)
968 x 525 x 245 mm (ASF Closed)
32 kg (exclude ink bottle, include print head)
Main Unit + Desktop Basket (BU-06)
968 x 825 x 965* mm (Basket Opened)
968 x 595 x 965* mm (Basket Closed)
33 kg (exclude ink bottle, include print head)
*Height above which cloth does not touch the floor when opening the desktop basket
Main Unit + Stand + Basket (SD-24)
968 × 870 × 874 mm (Basket Opened)
968 × 707 × 874 mm (Basket Closed)
40 kg (exclude ink bottle, include print head)
Packaged Dimensions and Weight
Printer (Main unit): 1120 x 726 x 406 mm, 43kg
Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg
Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg
What's Included
What's in the Box?
Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet
Software Included
Software available as Download from Web
Options
Optional Items

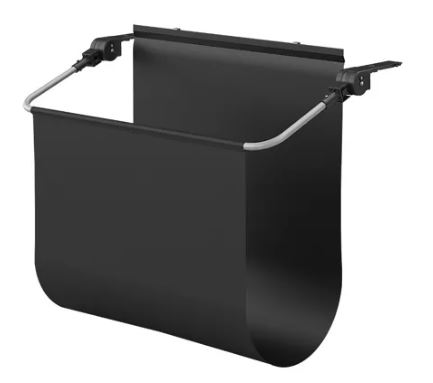

Desktop Basket: BU-06

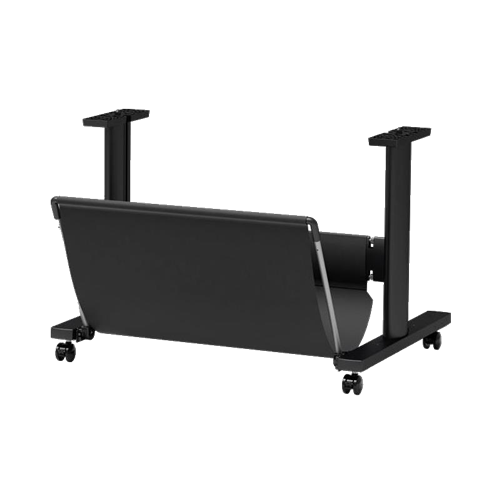

Printer Stand + Basket: SD-24
Consumables
User Replaceable Items

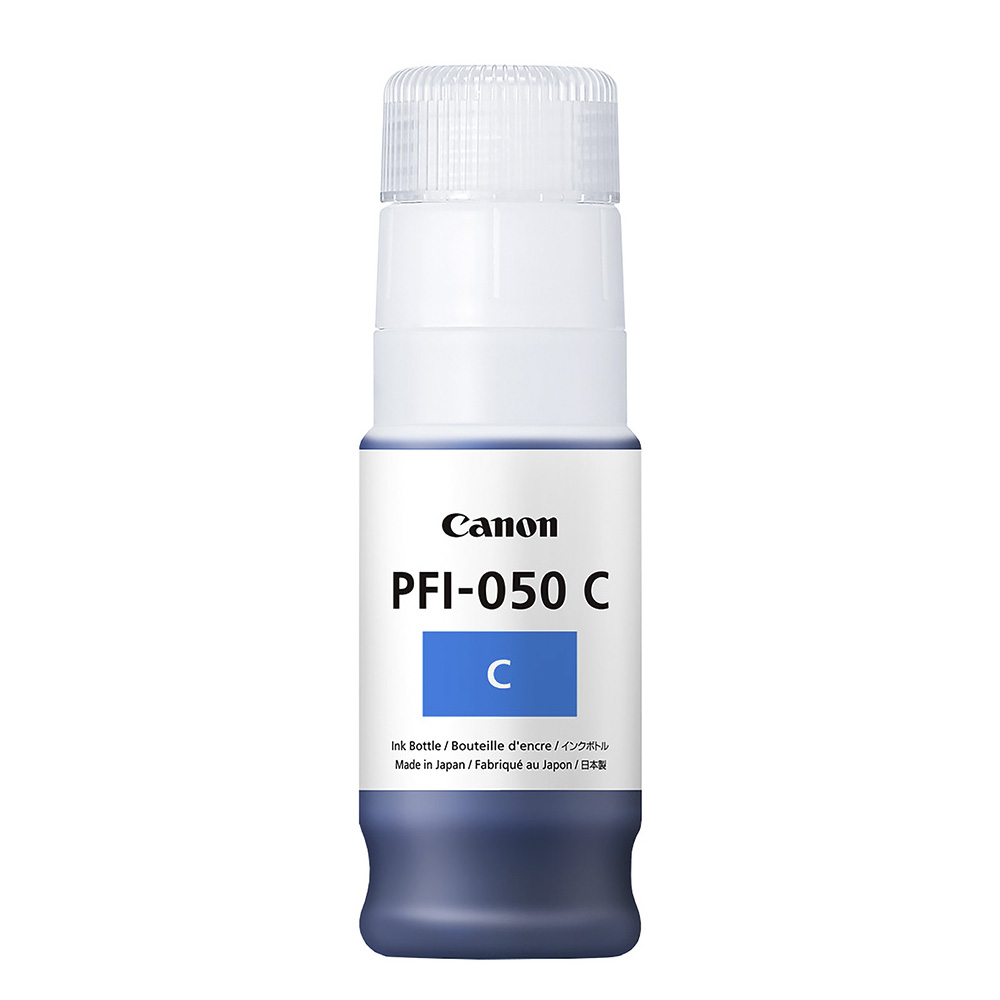

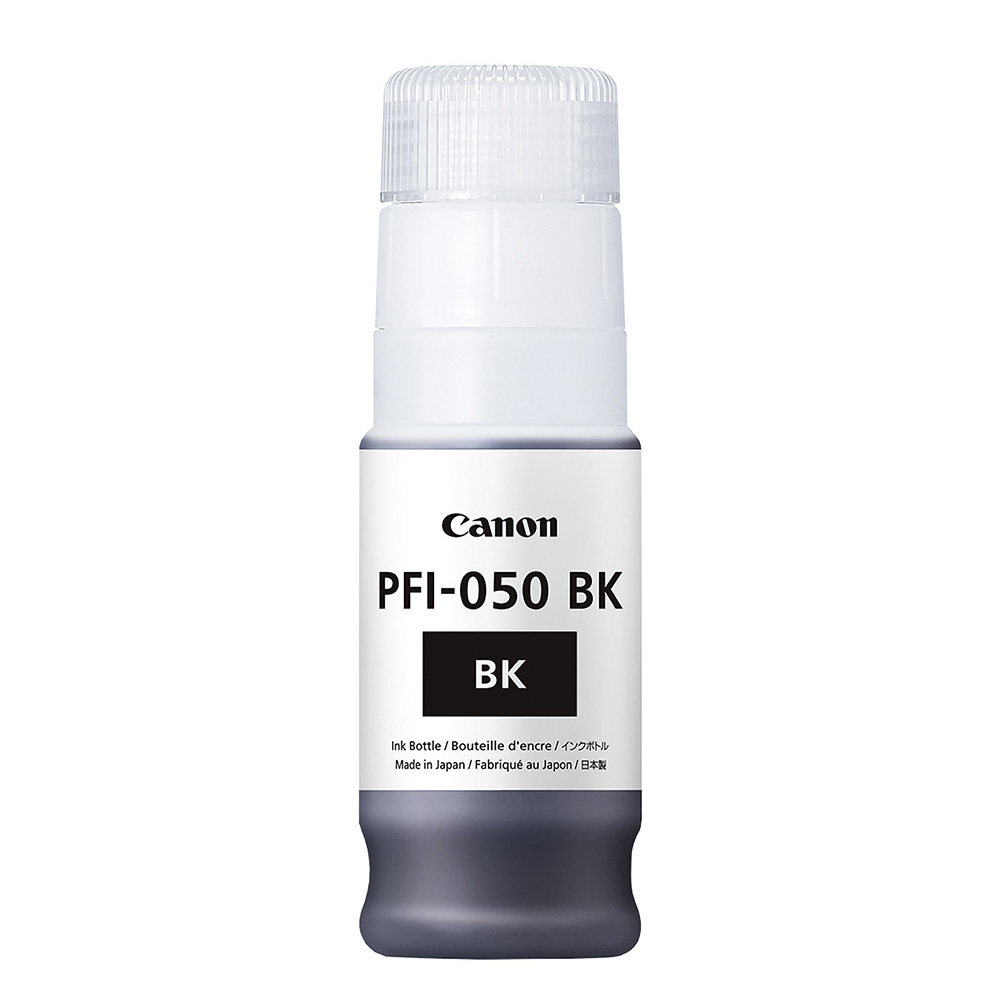

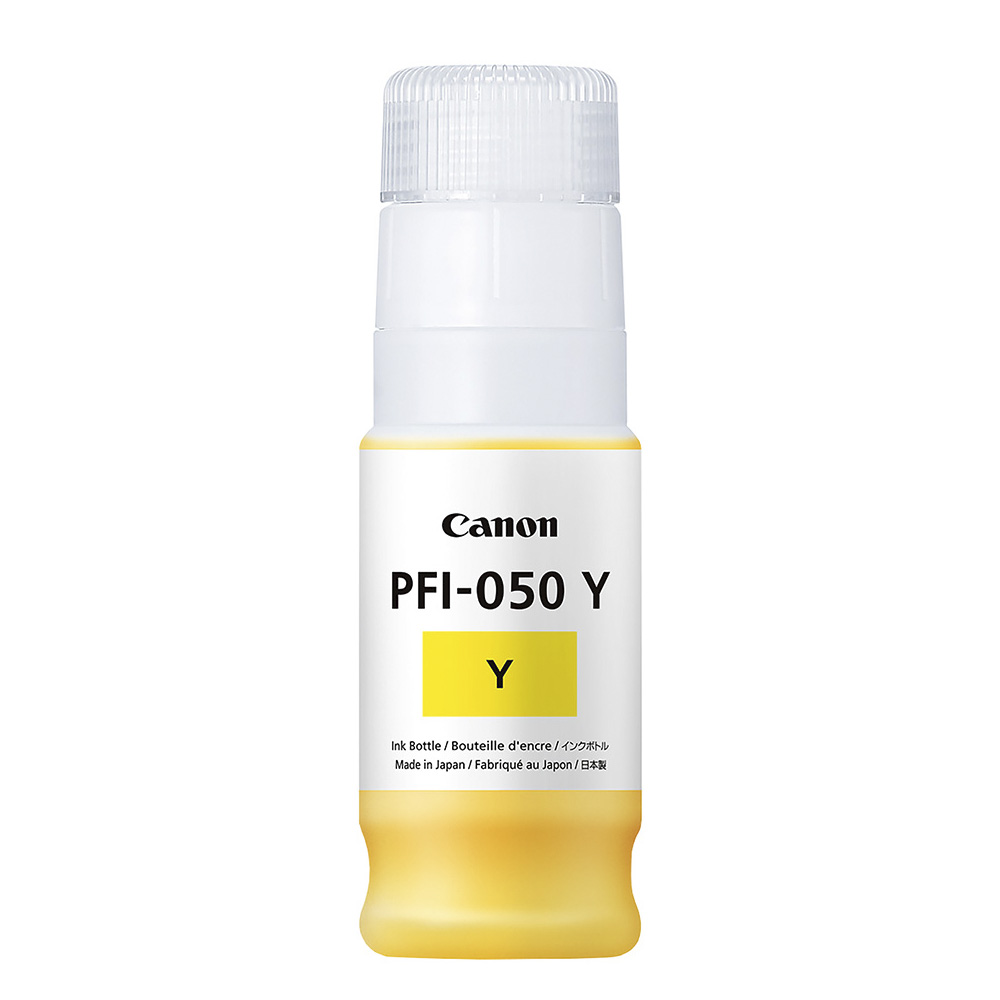

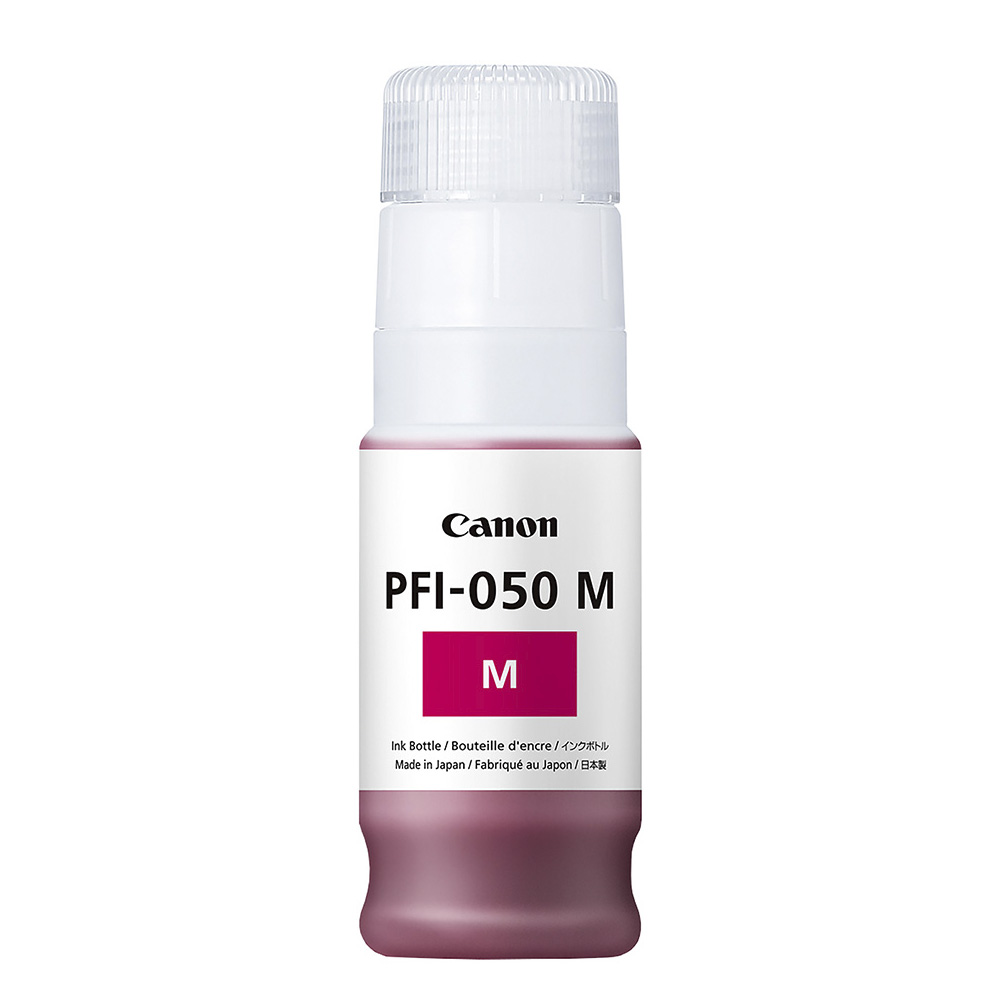

Ink Tank: PFl-050 (70ml)

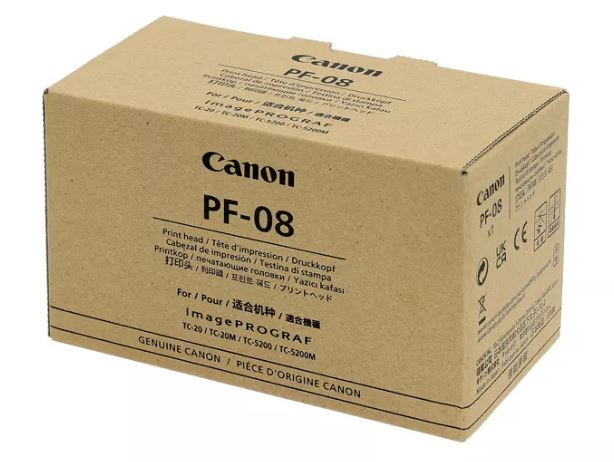

Print Head: PF-08
Maintenance Cartridge: MC-32
|
