Product Summary:
 5-Color 24" Wide Printing
Up to Res 2400 x 1200 dpi
2 GB Standard Memory
Automatic Media Cutter
Windows & Mac Drivers
USB, Network & Wireless
One Year On-Site Warranty
Product Description:
Reimagine performance with a sustainable 24” multifunction printer, offering less noise operation, more intuitive functionality, and high print quality, to create professional quality prints with sharp, crisp lines and vivid red color – perfect for eye-catching CAD drawings and marketing materials. Integrated scanning functionality with dedicated software boosts productivity, print, and scan at speed for a more seamless workflow.

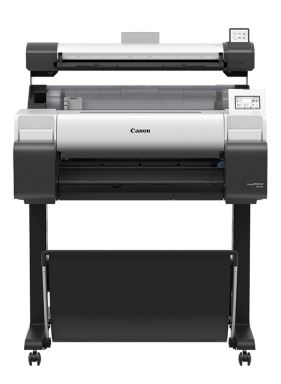

The Canon imagePROGRAF TM-240 Lm MFP – is a powerful and comprehensive large-format multifunction printer designed to be the cornerstone of your imaging and document management needs. Elevate your productivity and redefine the way you work with this all-in-one solution that seamlessly integrates cutting-edge technology and user-friendly features.
Exceptional Imaging Quality:
The Canon imagePROGRAF TM-240 Lm MFP is equipped with a precision-engineered 5-color Lucia TD pigment ink set, including matte black, ensuring your prints exhibit exceptional clarity and vibrancy. With a maximum resolution of 2400 x 1200 dpi, this multifunction printer brings your designs, photographs, and documents to life with unparalleled detail.
Multifunctional Versatility:
This all-in-one solution goes beyond traditional printing. The TM-240 Lm MFP is a true multifunction device, featuring not only high-quality printing but also scanning and copying capabilities. Scan your documents with precision using advanced scanning technology, and create copies effortlessly, all within a single, compact machine.
Efficient Workflows:
Experience efficiency like never before with the TM-240 Lm MFP's high-speed printing capabilities of up to 24 inches per minute. The dual roll unit ensures uninterrupted printing by seamlessly switching between media types and sizes, reducing downtime and boosting productivity in your workspace.
Intuitive Operation and Workflow Management:
Navigating through complex tasks is simplified with the intuitive 3-inch color touchscreen. Easily manage print settings, preview scans, and monitor ink levels, all with a user-friendly interface. The integrated software streamlines workflows, allowing you to manage and organize your prints and scans effortlessly.
Seamless Connectivity:
Stay connected and in control with versatile connectivity options. The TM-240 Lm MFP supports USB, Ethernet, and Wi-Fi connectivity, providing flexibility in how you interact with your device. Print and scan directly from your mobile devices or cloud storage, ensuring a seamless integration into your digital workflow.
Reliable Performance:
Canon's reputation for reliability shines through in the TM-240 Lm MFP. With a robust design and features such as the sub-ink tank system for continuous printing without interruption, this multifunction printer is engineered for consistent, high-volume performance, meeting the demands of your business environment.
Environmental Responsibility:
Built with sustainability in mind, the Canon imagePROGRAF TM-240 Lm MFP incorporates energy-efficient features and an eco-friendly design, aligning with Canon's commitment to environmental responsibility.
Upgrade your imaging and document management capabilities with the Canon imagePROGRAF TM-240 Lm MFP – a multifunctional powerhouse that delivers exceptional quality, efficiency, and versatility in a single, reliable device. Redefine the way you work and bring your creative and professional projects to new heights.
Specifications
Print Head
PF-06
Number of Nozzles
MBK: 5,120 nozzles
BK/C/M/Y: 2,560 nozzles
Droplet Size
Minimum 5pl per color
Ink Type
Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
Ink tank
Shipped with Printer: MBK(80ml), C, M, Y, BK (55ml each)
Replacement: C, Y, BK, MBK: PFI-030 (55ml) Magenta: PFI-031 (55ml)
Printer RAM
2 GB
Media Feed
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top-loading, Front Output
Media Width
Roll Paper:
ISO A3, A3+, A2, A2+, A1
JIS B4, B3, B2
ARCH 12”, 18”, 24”
Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”
300mm, 500mm, 600mm
Cut Sheet
ISO A4, A3, A3+, A2, A1, B4, B3, B2
DIN C4, C3, C2
JIS B4, B3
ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”
17 x 22”, 22 x 34”
ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
Photo (20 x 24”), (18 x 22”), (14 x 17”)
(12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
Poster 20 x 30”, 300 x 900mm
Others 13 x 22”
Media Cutter
Automatic horizontal cutting (Rotary Cutter)
Media Thickness
0.07 – 0.8 mm
Media Core Sizes
2” or 3” Core (3” core adaptor is available with RH2-28/RH2-35 purchase. Not included in the printer)
Maximum Roll Outer Diameter
150mm or less
Printing Software Utilities
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
PosterArtist Web/PIXMA Cloud Link
Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
– macOS Ventura 13
Print Language
SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4
Interface
Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
Wireless LAN: IEEE 802.11 b/g /n
Power Supply
AC 100–240V (50 – 60 Hz)
Power Consumption
Power Consumption (using wired LAN) Approx 59W
Standby (using wired LAN) Approx 1.6W
Power Off Approx 0.1W
Operational Environment
Temperature: 15°-30° C
Relative Humidity: 10-80%
(Non Condensation).
Printer Dimensions
(W x D x H) and Weight
Dimensions with stand basket opened (W x D x H) 978 x 868 x 1060mm
Weight (with Stand) 50.9 kg
Package Dimensions
(W x D x H) and Weight TM-240
Printer Package Dimensions (W x D x H) with pallet 1152 x 912 x 679mm
Printer Package Weight 71kg
Stand Package Dimension 1058 x 826 x 270 mm
Stand Package Weight 20kg
Options
Roll Holder RH2-28
Consumables
Ink Tank PFI-030 C/Y/BK/MBK, PFI-031 M
Maintenance Cartridge MC-31
Cutter Blade CT-08
Scanner
Max Scan Speed (for scan) 200dpi Draft = 1ips colour, 3ips mono
Max Scan Speed (for copy) 300dpi Draft = 1ips colour, 3ips mono
Color Space sRGB
Maximum Resolution 600dpi
Scan Accuracy 0.2% +/- 1 pixel
Size and Weight
Minimum/Maximum Scan Width 6.2”/24”
Minimum/Maximum Scan Length 8cm/2.77 m
Minimum/Maximum Media Thickness 0.07mm/0.8mm
Included Software ScanAppL
Scanner Dimensions (W x D x H) 935 x 253 x 131 mm
Scanner Weight 5.28kg
Scanner Package Dimension 1030 x 280 x 205 mm
Scanner Package Weight (Gross) 9.4kg
|
