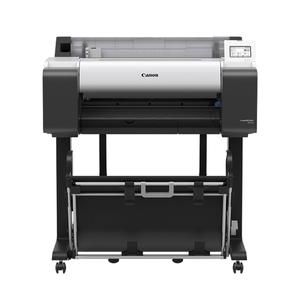

Canon imagePROGRAF TM-250 24" Large Format Inkjet Printer

The Canon imagePROGRAF TM-250 is a printing powerhouse that redefines your printing experiences with elevated productivity, intuitive functionality, and professional image quality, all within an environmentally conscious and sustainable design. Ideal for corporate offices, sizable AEC spaces, and dynamic sectors like retail and education, the TM-250 sets a new standard for efficient and high-quality printing.



Use stable image enhancements to create sharp, crisp lines and new magenta ink for vivid red colour. As a result, you’ll produce vivid and accurate CAD drawings, posters and educational materials

Produce A1 CAD prints in just 20 seconds, or A1 posters in 22 seconds. Save time trimming excess margins with borderless prints of any sizes and easily meet higher print demand with larger ink tanks, quick processing time and a fast return from sleep mode

Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover

Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices



Print Head PF-06

Number of Nozzles

MBK: 5,120 nozzles

BK/C/M/Y: 2,560 nozzles

Droplet Size Minimum 5pl per color

Ink Type

Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)

Ink tank

Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)

Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)

Printer RAM 2 GB

Media Feed

Roll Feed: One Roll, Top-loading, Front Output

Cut Sheet: Top-loading, Front Output

Media Width

Roll Paper:

ISO A3, A3+, A2, A2+, A1

JIS B4, B3, B2

ARCH 12”, 18”, 24” 12”, 18”, 24”

Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”, 300mm, 500mm, 600mmx`

Cut Sheet

ISO A4, A3, A3+, A2, A1, B4, B3, B2

DIN C4, C3, C2

JIS B4, B3

ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”, 17 x 22”, 22 x 34”

ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”

Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)

Poster 20 x 30”, 300 x 900mm

Others 13 x 22”

Media Cutter Automatic horizontal cutting (Rotary Cutter)

Media Thickness 0.07 – 0.8 mm

Media Core Sizes 2” or 3” Core

Maximum Roll Outer Diameter 150mm or less

Printing Software Utilities

Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,

imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,

PosterArtist Web/PIXMA Cloud Link

Operating System

Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows

Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7

– macOS Ventura 13

Print Language SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4

Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer

Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)

Wireless LAN: IEEE 802.11 b/g /n

Power Supply AC 100–240V (50 – 60 Hz)

Power Consumption

Power Consumption (using wired LAN) Approx 62W

Standby (using wired LAN) Approx 1.6W

Power Off Approx 0.1W

Operational Environment

Temperature: 15°-30° C

Relative Humidity: 10-80% (Non Condensation).

Printer Dimensions

(W x D x H) and Weight

Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm

Weight (with Stand) 54.5 kg

Package Dimensions

(W x D x H) and Weight

Printer Package Dimensions (W x D x H) with pallet 1152 x 913 x 679mm

Printer Package Weight 73kg

Stand Package Dimension 1058 x 826 x 270 mm

Stand Package Weight 22kg

Options

Roll Holder RH2-28

Consumables

Ink Tank PFI-120 C/Y/BK/MBK, PFI-121 M, PFI-320 C/Y/BK/MBK, PFI-321 M,

Maintenance Cartridge MC-31

Cutter Blade CT-08
