Product Summary:
 5-Color 24" Wide Printing
Up to Res 2400 x 1200 dpi
2 GB Standard Memory
130 / 300ml Ink Per Color
Windows & Mac Drivers
USB, Network & Wireless
1-Year On-site Warranty
Product Description:

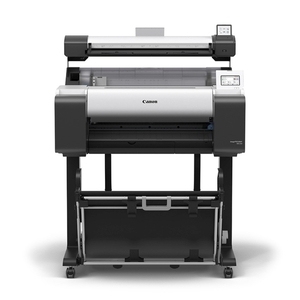

The Canon imagePROGRAF TM-250 Lm MFP is a versatile multifunction printer that seamlessly integrates powerful printing and scanning capabilities, offering a comprehensive solution for your office needs. With the ability to scan to copy, scan to USB, and the unique feature of printing and scanning simultaneously, this MFP optimizes efficiency and streamlines your workflow. The three quality modes ensure flexibility in meeting diverse printing requirements, while the optical resolution of up to 600dpi guarantees sharp and clear scans. Accommodating media thicknesses of up to 0.8mm, this printer opens up possibilities for various printing applications. The ScanAppL software further enhances user convenience, allowing for easy saving of scanned data directly to USB in TIFF, PDF, and JPEG file formats. The Canon imagePROGRAF TM-250 Lm MFP is a reliable and feature-rich solution that combines advanced scanning capabilities with efficient printing for a seamless office experience.
Elevate experiences with a sustainable 24” multifunction printer, with less noise operation, enhanced productivity and intuitive functionality to create professional quality prints with sharp, crisp lines and vivid red colour –perfect for eye-catching CAD drawings and marketing materials. Integrated scanning functionality with dedicated software boosts productivity, print and scan at speed for a more seamless workflow.
Integrated functionality
Print and scan seamlessly with an easy-to-use multi-tasking device, featuring a 3” touchscreen panel on the scanner and dedicated software, for parallel processing with printing and scanning simultaneously.
Enhanced professional quality
The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more.
Reliable productivity
Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device.
Intuitive functionality
Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover.
Improved sustainability
Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.
Specifications
Print Head PF-06
Number of Nozzles
MBK: 5,120 nozzles
BK/C/M/Y: 2,560 nozzles
Droplet Size Minimum 5pl per color
Ink Type Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
Ink tank
Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)
Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)
Printer RAM 2 GB
Media Feed
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top-loading, Front Output
Media Width
Roll Paper:
ISO A3, A3+, A2, A2+, A1
JIS B4, B3, B2
ARCH 12”, 18”, 24” 12”, 18”, 24”
Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”, 300mm, 500mm, 600mmx`
Cut Sheet
ISO A4, A3, A3+, A2, A1, B4, B3, B2
DIN C4, C3, C2
JIS B4, B3
ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”, 17 x 22”, 22 x 34”
ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
Poster 20 x 30”, 300 x 900mm
Others 13 x 22”
Media Cutter
Automatic horizontal cutting (Rotary Cutter)
Media Thickness 0.07 – 0.8 mm
Media Core Sizes 2” or 3” Core
Maximum Roll Outer Diameter 150mm or less
Printing Software Utilities
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
PosterArtist Web/PIXMA Cloud Link
Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
– macOS Ventura 13
Print Language
SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4
Interface
Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
Wireless LAN: IEEE 802.11 b/g /n
Power Supply
AC 100–240V (50 – 60 Hz)
Power Consumption
Power Consumption (using wired LAN) Approx 62W
Standby (using wired LAN) Approx 1.6W
Power Off Approx 0.1W
Operational Environment
Temperature: 15°-30° C
Relative Humidity: 10-80%
(Non Condensation).
Printer Dimensions
(W x D x H) and Weight
Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm
Weight (with Stand) 54.5 kg
Package Dimensions
(W x D x H) and Weight
Printer Package Dimensions (W x D x H) with pallet 1152 x 913 x 679mm
Printer Package Weight 73kg
Stand Package Dimension 1058 x 826 x 270 mm
Stand Package Weight 22kg
Options
Roll Holder RH2-28
Consumables
Ink Tank PFI-120 C/Y/BK/MBK, PFI-121 M, PFI-320 C/Y/BK/MBK, PFI-321 M,
Maintenance Cartridge MC-31
Cutter Blade CT-08
Scanner Lm24
Max Scan Speed (for scan) 200dpi Draft = 1ips colour, 3ips mono
Max Scan Speed (for copy) 300dpi Draft = 1ips colour, 3ips mono
Colour Space sRGB
Maximum Resolution 600dpi
Scan Accuracy 0.2% +/- 1 pixel
Size and Weight
Minimum/Maximum Scan Width 6.2”/24”
Minimum/Maximum Scan Length 8cm/2.77 m
Minimum/Maximum Media Thickness 0.07mm/0.8mm
Included Software ScanAppL
Scanner Dimensions (W x D x H) 935 x 253 x 131 mm
Scanner Weight 5.28kg
Scanner Package Dimension 1030 x 280 x 205 mm
|
