Product Summary:
 5-Color 36" Wide Printing
Up to Res 2400 x 1200 dpi
2 GB Standard Memory
4.3" LCD Control Panel
Windows & Mac Drivers
USB, Network & Wireless
One-Year On-site Warranty
Product Description:

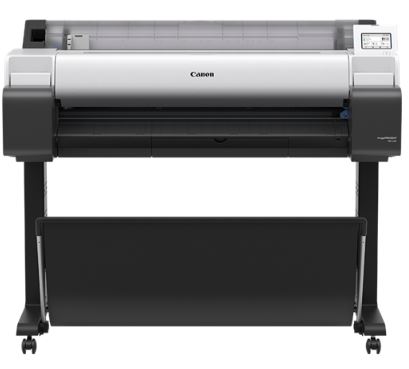

Reimagine printing performance with the sustainable 36” imagePROGRAF TM-340, offering less noise printing, more intuitive functionality and brilliant image quality. Seamlessly produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints for AEC offices, retail and education.
Enhanced professional quality
The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more
Reliable productivity
Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device
Intuitive functionality
Functional design with a 4.3” touchscreen panel displaying intuitive instructions and important information, like media type, remaining media and ink amount. Roll paper can be replaced with ease on the flat-top cover
Improved sustainability
Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices
Specifications:-
Printer Technology
Printer Type 5 Colours 36"
Print Technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
Line Accuracy
±0.1% or less
User adjustments are necessary. The printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Droplet Size minimum 5pl per colour
Ink Capacity Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y) Sales Ink: 55ml (MBK, BK, C, M, Y)
Ink Type Pigment inks: 5 colours MBK/BK/C/M/Y
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13
Other Supported Job Submission Protocols Apple AirPrint
Printer Languages HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Standard Interfaces
USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 2GB Expansion slot : No
Hard Drive N/A
Print Speed
CAD Drawing
Plain paper (A1)
0:21 (Fast Economy Mode) 2.7ppm
Plain paper (A0)
0:41 (Fast Economy Mode)
0:42 (Fast)
1:25 (Standard)
Poster
Plain paper (A0)
0:43 (Fast Economy Mode)
0:43 (Fast)
1:25 (Standard)
Heavy coated paper (A0)
1:42 (Fast)
3:10 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 - 917mm
Cut sheet: 210 - 917mm
Media Thickness Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length
Roll paper: 203.2mm
Cut sheet: 279.4mm
Maximum Printable Length
Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m
Maximum Media Roll Diameter 150mm
Media Core Size Internal diameter of roll core: 2"/3" (Optional)
Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm
Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Media Feed Capacity
Roll Paper: One roll
Cut Sheet: 1 sheet
Borderless Printing Width (Roll Only)
[Recommended]515mm(JIS B2), 728mm(JIS B1), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36"
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm
Other than above, free size borderless printing is supprted on only roll paper by user definition
Maximum Number of Delivered Prints Standard position - 1 sheet
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation: 65W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Operating Environment Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
Regulations CE mark, UKCA mark
Environment Certificates CB certification, EPEAT GOLD1
Dimensions and Weight
Physical Dimensions and Weight
W x D x H
Main unit with stand
1285 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened）
1285 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed）
59.2 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with stand and pallet): 1462 x 912 x 801 mm, 100kg
What's Included
What's in the Box?
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Basic Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included
Software available as Download from Web
Options
Optional Items
2"/3" Roll Holder: RH2-35
IC Card Reader Holder: RA-02
Consumables
User Replaceable Items
Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y:PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
|
