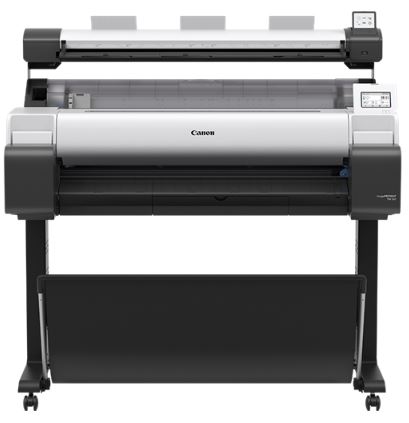

Product Summary:
 5-Color 36" Wide Printing
Up to Res 2400 x 200 dpi
2 GB Standard Memory
±0.1% Line AccuracY
4.3" Operational Panel
USB, Network & Wireless
One Year On-site Warranty
Product Description:
Reimagine performance with a sustainable 36” multifunction printer, offering less noise operation, more intuitive functionality and high print quality, to create professional quality prints with sharp, crisp lines and vivid red colour – perfect for eye-catching CAD drawings and marketing materials. Integrated scanning functionality with dedicated software boosts productivity, print and scan at speed for a more seamless workflow.
Integrated functionality
Print and scan seamlessly with an easy-to-use multi-tasking device, featuring a 3” touchscreen panel on the scanner and dedicated software, for parallel processing with printing and scanning simultaneously.
Enhanced professional quality
The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more.
Reliable productivity
Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device.
Intuitive functionality
Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover.
Improved sustainability
Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.
Specifications:-
Scanner Technology
Scan Technology SingleSensor with multiple LED Illumination
Maximum Resolution (dpi) 600dpi
Scan Speed
COPY
300/300dpi Draft = 1ips colour, 3ips mono
300/600dpi Standard = 1ips colour, 3ips mono
600/600dpi Best = 0.5ips colour, 1.5ips mono
SCAN
200dpi Draft = 1ips colour, 3ips mono
300dpi Standard = 0.5ips colour, 1.5ips mono
600dpi Best = 0.33ips colour, 1ips mono
Scan Modes
Scan to USB - RGB/Greyscale/BW, TIFF (No ScanApp)
Scan to USB - RGB/Greyscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp available)
Scan to PC - RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF
Copy - RGB/Greyscale/BW
Copy & Archive – (Combination of Copy and Scan to PC above).
Cloud connectivity is achieved by a link to Canon’s Direct Print & Share.
PRINT is achieved by using Canon’s Direct Print & Share.
Paper Path
Face up, rear exit. Forward document transport only
Document return guide(s) included
Maximum Scan Width 36” / 914.4mm
Minimum Scan Width 6" / 152.4mm
Maximum Document Width 38” / 965.2mm
Maximum Scan Length 109” / 2768mm
Document Thickness Designed to scan Canon iPF printer CAD paper.
Min = 0.07mm
Max = 0.8mm
Scan Accuracy
Accuracy 0.2% +/-1 pixel
Interface USB
USB2, 128GB FAT32.
Scan to Network
ScanApp - Sets scan directory.
Minimum PC specification: • Windows 7/8/10 - 32bit.
• 100Mbs Ethernet. • Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors
• 2GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.
Suggested PC specification: • Windows 7/8/10 - 64bit.
• GB Ethernet. • Intel i3,i5 or i7 processors • 4GB RAM
• High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.
Languages ScanApp English/French/German/Italian/Spanish/Simplified Chinese/Traditional Chinese/Korean/Russian/Portuguese/ Japanese/Czech/Polish
Control Panel 3” touch screen display
Weight of Scanner 6.56kg (14.5lbs) without Doc return guide
Dimensions (W x D x L)
Width: 1238mm
Height: 131mm
Depth:
Without Doc Return Guide - Paper tray folded: 146mm
Without Doc Return Guide - Paper Tray flat: 193mm
With Doc Return Guide - Paper tray folded: 206mm
With Doc Return Guide - Paper Tray flat: 253mm
Compliances
Europe : CE mark, Other countries : CB certification
What's in the Box?
Lm36 scanner
Printer mounting brackets, fixings & 3mm tool
2 feet for desktop use
2 paper edge guides
3 Document return guides
Calibration target
CD for ScanApp software and PDF documentation:
Lm36 Scanner User Manual per language and Quick Start Guide.
Lm36 Scanner Quick Start Guide.
Ethernet cable (2 meter)
Power Supply
Regional - Mains power cord(s) (2 meter)
Printer Technology
Printer Type 5 Colours 36"
Print Technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Droplet Size minimum 5pl per colour
Ink Capacity Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
Sales Ink: 55ml (MBK, BK, C, M, Y)
Ink Type Pigment inks : 5 colours MBK/BK/C/M/Y
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13
Other Supported Job Submission Protocols Apple AirPrint
Printer Languages HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Standard Interfaces
USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 2GB
Expansion slot : No
Hard Drive N/A
Print Speed
CAD Drawing
Plain paper (A1)
0:21 (Fast Economy Mode) 2.7ppm
Plain paper (A0)
0:41 (Fast Economy Mode)
0:42 (Fast)
1:25 (Standard)
Poster
Plain paper (A0)
0:43 (Fast Economy Mode)
0:43 (Fast)
1:25 (Standard)
Heavy coated paper (A0)
1:42 (Fast)
3:10 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 - 917mm
Cut sheet: 210 - 917mm
Media Thickness
Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length
Roll paper: 203.2mm
Cut sheet: 279.4mm
Maximum Printable Length
Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m
Maximum Media Roll Diameter 150mm
Media Core Size Internal diameter of roll core: 2"/3" (Optional)
Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm
Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Media Feed Capacity
Roll Paper: One roll
Cut Sheet: 1 sheet
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only)
[Recommended] 515mm(JIS B2), 728mm(JIS B1), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Maximum Number of Delivered Prints Standard position - 1 sheet
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation: 65W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Operating Environment
Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
Standby: 35 dB(A) or less
Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
Regulations CE mark, UKCA mark
Environment Certificates CB certification, EPEAT GOLD1
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main unit with stand
1285 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened）
1285 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed）
59.2 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with stand and pallet): 1462 x 912 x 801 mm, 100kg
What's Included
What's in the Box?
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Basic Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included Software available as Download from Web
Options
Optional Items
2"/3" Roll Holder: RH2-35
IC Card Reader Holder: RA-02
Consumables
User Replaceable Items
Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y:PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
|
