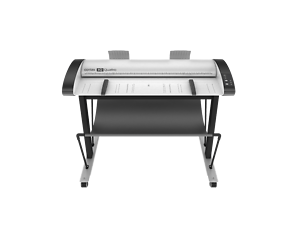

Contex IQ Quattro 3600 36" Large Format Scanner

The Contex IQ Quattro 3600 feature an optical resolution of 1200 dpi and maximum resolution of 9600 dpi. The Contex IQ Quattro 3650 features a scan speed of 7 inches per second at 200dpi for both colour and monochrome and the Contex IQ Quattro 3690 features a scan speed of 14 inches per second at 200dpi for both colour and monochrome. The Contex IQ Quattro 3600 scans up to 36 inches/914 mm and can take a maximum media width up to 38 inches/ 965 mm. A maximum media thickness of up to 0.08 inch/2mm of flexible documents can be scanned. The IQ Quattro 3600 features 64,800 pixels and for professional colour results, the Contex IQ Quattro 3600 Series uses X-Rite i1 profiles.



Contex applications create industry standard raster file formats that can be used with any CAD or GIS application, including AutoCAD, Microstation, ArcGIS, and all other CAD, GIS, image editing and storage applications.



Scan and archive all your document types easily with the Contex IQ Quattro x 36. Engineering or construction plans can be scanned in standard file formats directly into project folders. The Contex IQ Quattro X 36 supporta standard document formats including PDF and PDF/A. These are formats that can be opened and printed in scale using Adobe Reader. PDF/A is designed for long term storage, and is a file format protected from changes and is recommended for storing as-builds and documentation. For sharing and collaboration, use the standard PDF as this enables highlighting and annotations.



The Contex IQ Quattro X 36 includes Nextimage TWAIN; which relies on the external host software to print, copy and save scanned information, Nextimage Remote tablet app; a free download for iOS and Android users and WIDEsystem.



Optional items for the Contex IQ Quattro X 36 include: a low stand with paper catcher for side by side operation, and a high stand with paper catcher for side by side operation. The IQ Quattro X 3650 is easily upgradable to meet your needs today and then grow along with your business. The IQ Quattro X 36 can be configured as part of a multi-function (MFP) solution. The IQ Quattro X 36 MFP ready solutions include the MFP REPRO and ScanStation Pro, to fit the same space as your printer for convenient collaboration and use with existing printers for direct scan-to-print capabilities. An optional version of Nextimage 5 software is available,  an award-winning scanning software which features easy creation of TIFF, JPG, PDF and PDF/A files and integration with cloud destinations including Google Drive, Box.com, DropBox, email, HP ePrint, Microsoft Sky Drive and more. Nextimage software is available in two versions: Nextimage Scan + Archive for scan-to-file or Nextimage REPRO for scan-to-file & copy. Nextimage Scan+Archive software is a full featured scanning software including multipage (PDF, PDF/A and TIFF), full image quality controls, and accounting tools. Nextimage features Automatic Image Quality for instant clean-up and alignment and comes with an integrated image viewer and an enable automatic file naming. The software is available in multiple languages, including English, Chinese, Dutch, French, German, Italian, Japanese, Korean, Spanish, Russian and Polish. Nextimage REPRO includes multifunction capabilities plus touch-screen compatibility and Network printer support. Nextimage REPRO includes ICC colour management, full copy functions, batch copy, set copy, nesting, and closed loop colour calibration. Nextimage can be installed on as many PC’s as you like, and is compatible with Windows 10 and 11.



As you would expect from Contex, reliable performance is a given. For added peace of mind, Contex IQ Quattro X 36 large format scanners feature a 2-year return to factory warranty including a first year on-site swap-out extended warranty. Count on dependable support to create the best image possible from Contex and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.
