Product Summary:
 Up to Scan Print Width 36"
Up to Optical Res 600 dpi
15552 Number of Pixels
0.03 Max. Media Thickness
48 Bit Data Capture
USB with xDTR Interface
2 Year on Site Warranty
Product Description:
SD One Plus Series Features

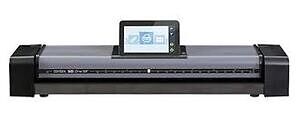

The Contex SD One Plus is a desktop large format scanner with strong features. Save space and time scanning oversized engineering and construction drawings in-house.
As-builts, documentation and rebuilt
All projects include numerous design documents and continuous changes. With SD One Plus you capture and document changes and as-builts.
Space-saving design and light weight
SD One Plus’s lightweight and compact design it is a must-have scanner for any office that wants to share and move a scanner between multiple users or store it when it is not required.
Common Specifications for the SD One Plus SeriesMaximum Scan Width
SD One Plus 24: 24"
SD One Plus 36: 36"
Maximum Scan Length 50"
Maximum Media Width
SD One Plus -24 is 26.6"
SD One Plus -36 is 38"
Maximum Media Thickness 0.03 in. or .75 mm
Maximum/Optical Resolution 600/600 dpi
Scan Speeds
150 dpi: 3.8 inches per second
300 dpi:1.9 inches per second
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit
Color Space : sRGB (24 bit) Grayscale (8 bit) Monochrome (1 bit)
Interface : USB with xDTR
File formats : TIF, JPG, PDF, PDF/A
Device Drivers : 32 and 64-bit Windows 10, 8, 7, and Vista
TWAIN
TWAIN drivers available for use with EDM and other imaging software.
Power : 5W / 0.5W / 14W – ENERGY STAR compliant
USE / Requirements : 110/220/240V,60/50Hz, 16W
Weight & Dimensions : SD One-24: 32.2x9.1x4.9 inch - 18.7 lbs.
LxWxH : SD One-36: 45.6x9.1x4.9 inch - 24.9 lbs.
Certifications/compliance
ENERGY STAR, RoHS, UL, CE, GOST-R, VCCI, FCC: CLASS A
In the Box:
Scanner (24” or 36” model), 6' USB cable, external power supply, basic scanning software (Nextimage FREE), installation software and user guides in PDF on USB flash drive, installation guide, calibration poster, calibration sheet and cleaning cloth.
Warranty : 2-year parts warranty with fast, easy parts replacement
|
