Product Summary:
 Up to Max. Print Width 24"
Up to Optical Res 600 dpi
15552 Number of Pixels
0.03"/ 0.75mm Media Thickness
48-bit Data Capture
USB with xDTR Interface
2 Year on Site Warranty
Product Description:

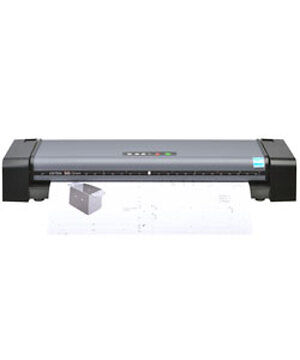

The Contex SD One Plus is a desktop large format scanner with strong features. Save space and time scanning oversized engineering and construction drawings in-house.
Maximum Scan Width
SD One Plus 24: 24"
SD One Plus 36: 36"
Maximum Scan Length
50"
Maximum Media Width
SD One Plus -24 is 26.6"
SD One Plus -36 is 40 "
Optical Resolution
600 dpi
Maximum Resolution
600 dpi
Maximum Media Thickness
0.03 in. or .75 mm
Accuracy
0.1% +/- 1 pixel
Data Capture (color/mono)
48-bit
Color Space
sRGB (24 bit) Grayscale (8 bit) Monochrome (1 bit)
Interface
USB with xDTR
File formats
TIF, JPG, PDF, PDF/A
Device Drivers
32 and 64-bit Windows 10, 8, 7, and Vista
TWAIN
TWAIN drivers available for use with EDM and other imaging software.
Power
USE / Requirements
5W / 0.5W / 14W – ENERGY STAR compliant
110/220/240V,60/50Hz, 16W
Weight & Dimensions
LxWxH
SD One-24: 32.2x9.1x4.9 inch - 18.7 lbs.
SD One-36: 45.6x9.1x4.9 inch - 24.9 lbs.
Certifications/compliance
ENERGY STAR, RoHS, UL, CE, GOST-R, VCCI, FCC: CLASS A
In the Box:
Scanner (24” or 36” model), 6' USB cable, external power supply, basic scanning software (Nextimage FREE), installation software and user guides in PDF on USB flash drive, installation guide, calibration poster, calibration sheet and cleaning cloth.
Warranty
2-year parts warranty with fast, easy parts replacement
*Scanning speeds depend on document width and computer configuration
Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2.
Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.
|
