Product Summary:
 Up to Print Speed 550cps
136 Number of Columns
128K Byte Input Data Buffer
200 Million Strokes / Wire
25 Million Lines Reliabilty
USB, Network & Parallel
One Year Return to Base Warranty
Product Description:
Superb Reliability
For decades, Epson has supported businesses with an impressive range of printers offering exceptional reliability. The Epson DLQ-3500IIN carries on this tradition of unrivalled dependability. Long-life features include a total print volume of twenty five million lines, plus black ribbon life of six million characters. Which translates into impeccable flatbed performance, day in and day out.
Boosted productivity is what the Epson DLQ-3500IIN is all about. It delivers a stunning 550 cps at 10 cpi in high speed draft, 495 cps at 10 cpi draft, and 195 cps in LQ.
User and Environment Friendly
In line with Epson's environmental policy, the Epson DLQ-3500IIN is constructed of non-toxic, easily recycled materials. It's user-friendly too. The direct path horizontal feed design assures accurate printing every time without crooked lines or smearing. This also contributes to environmental protection by eliminating wasteful use of paper.
Epson Technology – The Key to Versatile Paper Handling
Printing on single sheets, envelopes, and continuous paper is just the beginning with the Epson DLQ-3500IIN. You can also print on overlapping paper. And for even more versatility, there's Auto Platen Gap adjustment. Switch to the Auto mode, and this Epson innovation automatically detects paper thickness before adjusting the distance between the head and the platen. The result is precise, smooth printing even on forms with labels. If you're using a limited range of paper thicknesses, you can also switch to the Manual mode to set the optimum printing parameters manually.
1+7 Copy Printing Convenience
Need copies? Switch to the Copy mode, and the powerful Epson DLQ-3500IIN can deliver up to seven copies in addition to the original. And thanks to the high impact pressure of the long-life 24-pin printhead each copy is as clear as the original.
Networkable
In addition to standard parallel and serial interfaces, you can install an optional Ethernet card in the Type B interface slot to incorporate the Epson DLQ-3500IIN in an expanded multi-system network.

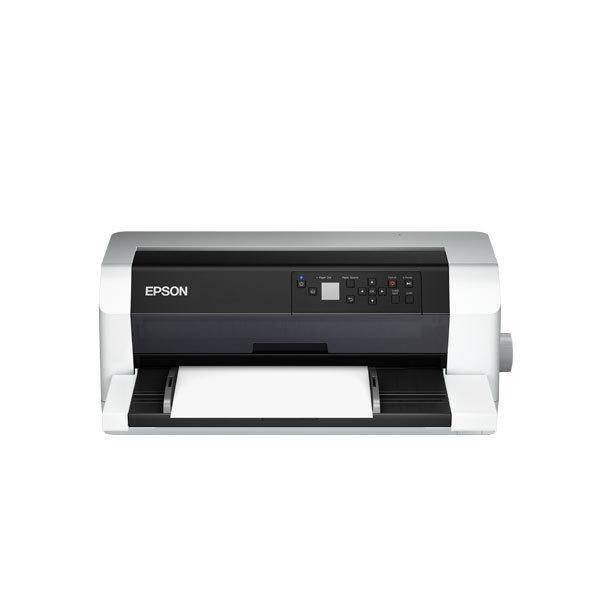

PRODUCT NAME Epson DLQ-3500IIN
PRODUCT CODE C11CH59502
PRINTING METHOD Impact Dot Matrix, Flat-bed type
NUMBER OF PINS IN HEAD 24 pins
PRINT DIRECTION Bi-directional with logic seeking
PRINT SPEED
High speed draft 10 cpi 550 cps
PRINT CHARACTERISTICS
Character tables 1 legal character set
14 international character sets
13 character code tables(Standard)
Italic, PC437, PC850, PC860, PC861, PC863, PC865, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO8859-15
BITMAP FONTS
Epson Draft 10, 12, 15 cpi
Epson Roman 10, 12, 15cpi, Proportional
Epson Sans Serif 10, 12, 15cpi, Proportional
Epson Courier 10, 12, 15cpi
Epson Prestige 10, 12 cpi
Epson Script 10 cpi
Epson Script C Proportional
Epson OCR-B 10 cpi
Epson Orator 10 cpi
Epson Orator-S 10 cpi
SCALABLE FONTS
Epson Roman 8 to 32 points
Epson Sans Serif 8 to 32 points
Epson Roman T 8 to 32 points
Epson Sans Serif H 8 to 32 points
BAR EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, code 39, Code 128, PostNet
PRINTABLE COLUMNS
PITCH (CPI) Characters per line Characters
10 cpi 136 10
12 cpi 163 12
15 cpi 204 15
17 cpi condensed 233 17.1
20 cpi condensed 272 20
PAPER HANDLING
Paper Path
Standard Manual insertion: (Front in, Front out)
Tractor: (Rear in, Front out)
Cut Sheet Size Width: 90 - 420mm (3.5 - 16.5")
Length: 80 - 420mm (3.15-16.5")
Envelopes No. 6, No. 10
Continuous Paper Size Width: 101.6-406.4mm (4.0-16.0")
Length: 76.2 - 558.8 mm (3.0 - 22.0 inches)
* Can also print labels
PAPER THICKNESS CUT SHEET
Single sheet 0.065-0.19mm (0.0025-0.0074")
Multi-part forms 0.12-0.62mm (0.0047-0.024")
ENVELOPES
0.16-0.52MM (0.0063-0.0205")
CONTINUOUS PAPER
Single sheet 0.065-0.9mm (0.0025-0.0074")
Multi-part forms 0.12-0.62mm (0.0047-0.024")
PAPER FEEDING FRICTION FEED (FRONT/REAR MANUAL, REAR CSF)
PUSH TRACTOR FEED (REAR)
OPTIONAL FEEDER Cut sheet feeder (Rear in, Front out)
ASA Unit (Front in, Front out)
COPIES Original + 7 Copies
1/6 inch or programmable by 1/360 inch
INPUT DATA BUFFER 128 K Byte
INTERFACE
Standard Bi-directional parallel (IEEE-1284 nibble mode supported)
100base-Tx wired LAN
RIBBON CARTRIDGE
Colour Black or Colour
Fabric Ribbon Cartridge
Option Fabric Black: 6 million characters
Ribbon Life
(LQ 10 cpi, 48 dots/character) Fabric Colour/Black 1.5 million characters
Magenta 1.1 million characters
Cyan 1.1 million characters
Yellow 0.8 million characters
ACOUSTIC NOISE Approx. 59dB (A) (ISO 7779 pattern)
RELIABILITY
Total Print Volume 25 million lines
Print Head Life Black:200/Color:100[million strokes/wire]
CONTROL PANEL 13 switches, 3 LEDs and 1.44" LCD
POWER REQUIREMENT
Voltage AC 100V-240V
Rated frequency 50 to 60 Hz
Power consumption Approx. 78 W (ISO 10561 Letter pattern)
DIMENSIONS
Width 661 mm
Depth 433 mm
Height 276 mm
Weight 18.9 kg
PRINTER DRIVER/UTILITY
OS Microsoft® Windows® XP / Vista / 7 / 8 / 10
UTILITY Epson Status Monitor 3: (Microsoft® Windows® XP / Vista / 7 / 8 / 10)
WARRANTY
Standard Warranty 12 months return to base
Optional Additional 2 years return to base warranty - 3YWDLQ3500II
|
