Product Summary:
 Upto Scan Speed 12Sec./page
Up to Res 2400 x 4800 dpi
ReadyScan LED Light Source
6-line Alternated Colour CCD
Powerful Software Included
USB 2.0 Interface
1 Year Return to Base Warranty
Product Description:

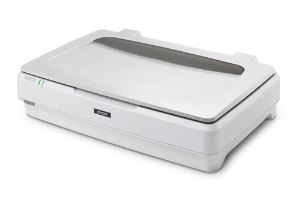

EPSON Expression 13000XL Graphic Arts Colour Scanner
The Epson Expression 13000XL is an A3 graphic arts scanner with a resolution of 2,400 x 4,800dpi. With superior resolution, accelerated speed, and enhanced quality surpassing all competitors, this cutting-edge technology strives to deliver top of the line scanning capabilities within the graphics art market. Accompanied by advanced bundled software, professional users can harness its precision to elevate images for commercial purposes with unmatched accuracy.
Batch scan large quantities of transparencies with brilliant results

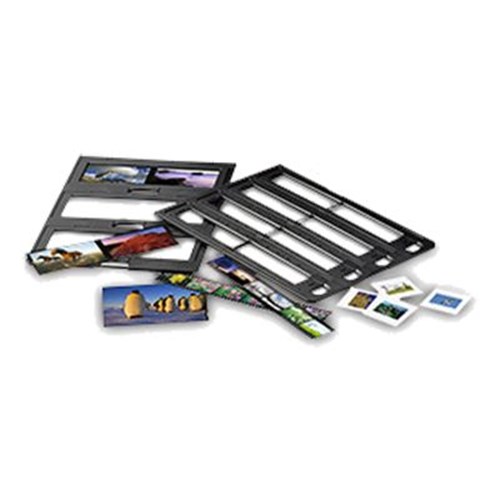

By utilising the optional Transparency Unit, the Epson Expression 13000XL can scan up to 48 frames of 35mm film, thirty 35mm slides, eight frames of 4" x 5" film, or six medium-format transparencies–all with one easy setup.
Two lamp design
A bright white lamp is used for positive transparency scanning, while a blue light source is used for negative
transparencies, cutting down on the processing time and improving the negative to positive conversion in the final image.
Unique Autofocus optics
Epson’s optics system ensures pinpoint focusing on an original up to 6mm above the scanner glass and is useful for scanning 3D items and transparencies.
Fast scans
Scan an 8.5" x 11" colour image at 300 dpi in as little as 23 seconds. A 35mm slide can be scanned at 2400 dpi in 51 seconds, and a 4" x 5" colour transparency can be scanned in under three minutes.
High Optical Density
Featuring an optical density of 3.8Dmax, the Epson Expression 13000XL captures a wide range of tonal colours ensuring the greatest level of detail in both highlight and shadow areas.
Specifications:-
SCANNER TYPE Flatbed A3 colour image scanner
PRODUCT NAME Expression 13000XL
PRODUCT CODE B11B257501
SUB-SCANNING METHOD Movement of the carriage
Photo ELECTRIC DEVICE 6 line alternated colour CCD (94,500 pixels)
DOCUMENT SIZE
SCANNING PLATEN 310 x 437 mm
TRANSPARENCY UNIT 309 x 420 mm
LIGHT SOURCE Readyscan LED Technology
OPTICAL RESOLUTION
Main: 2,400 dpi (optical resolution by 6 line CCD with 87,840 pixels) Sub: 4,800 dpi with Micro Step
OPTICAL DENSITY 3.8 D Max
OUTPUT RESOLUTION
50 dpi to 12,800 dpi (in 1 dpi steps)
ZOOM 50% to 200% (in 1% steps)
PIXEL DEPTH 48-bit internal
24-bit external
SCANNING SPEED
Monochrome : 12 s/page – Colour : 12 s/page (Measured with size A4, resolution: 300 dpi)
SUPPORTED PLATFORMS
USB2.0 (Type B) Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 11, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows server 2003 R2
INTERFACES
USB 2.0 High-Speed (standard)
ENVIRONMENTAL CONDITIONS
TEMPERATURE 5°C to 35°C (operating)
-25°C to 60°C (storage)
HUMIDITY 10% to 80% without condensation (operating)
10% to 85% without condensation (storage)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC100-120 V
POWER CONSUMPTION 27 W
BUNDLED SOFTWARE
Epson Scan 2, SilverFast Ai ver.8.8
DIMENSIONS
Width x Depth x Height (mm) 656 mm(W) x 458 mm(D) x 158 mm(H)
A3 TRANSPARENCY UNIT
RELIABILITY 100,000 cycles for the MCBF
DOCUMENT 35 mm strip film
35 mm slide
Medium format (120 / 220)
6 x 18 cm strip film
4 x 5 inch film
Films up to 12.2 x 16.5 inch
READABLE AREA: 309 x 420 mm
DIMENSIONS: Width: 656 mm
Depth: 458 mm
Height: 158 mm
Weight: Approx. 14.3 kg
WARRANTY
12 MONTHS RETURN TO BASE
OPTIONAL ADDITIONAL 2 YEAR WARRANTY 3YWE13000XL
|
