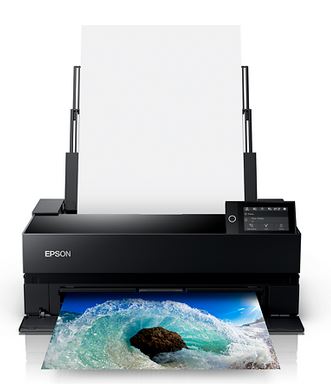

Epson SureColor SC-P706 A3+ Colour Inkjet Printer

The Epson SureColor SC-P706 is an A3+ inkjet printer that delivers even higher performance exhibition quality prints with new and professional features, all achieved within an impressively space-saving A4 sized footprint.



The P706 boasts the highest D-Max currently, and its superb print quality and colour are backed by the combination of Epson's innovative MicroPiezo®'s print head and Epson's industry-leading ink technology, the UltraChrome Pro10 Ink with Violet. Together, they enable the delivery of gallery-quality black and white output with better contrast and improved tonality as well as a wider colour gamut with the new Violet ink on board to produce vibrant and rich prints. In addition, the 4-blacks-and-6 colours Ultra Chrome Pro10 inks offer great lightfastness which combines with proper display methods to offer longevity.



New Advanced Black and White Photo Mode comes with preset modes -- neutral, warm, cool, or sepia -- to aid users to effortlessly achieve stunning neutral or toned black-and-white prints. This feature provides flexibility for advanced adjustments and fine-tuning via custom slider bars and a colour tone wheel. Additionally, customised settings can be saved for future use to achieve consistent prints. By downloading the optional Epson Print Layout software, which is now available on Apple moblie devices as well, users can automatically preview personal images with the selected settings.



SIZE

Max Print Width  13 inch (330.2mm)

Max Sheet Size  A3+

PRINT TECHNOLOGY

Print Head  Epson Micro Piezo™

Print Modes  Uni & Bi-directional

Features  Variable Sized Droplet Technology (VSDT)

Advanced Epson LUT

Enhanced Colour Density

Enhanced Print Durability

Black enhance overcoat

Nozzle Configuration  180 per colour

Active Channels  10 (Dedicated Pk / Mk ink lines)

Max Resolution  5760 x 1440 optimised dpi

Min Droplet Size  1.5pl

INK SYSTEM

Family  UltraChrome® Pro10

Type  Aqueous all-pigment

Colours  10

Cartridge Size  25ml

PERFORMANCE

A4  2 minutes

A3+  3.28 minutes

4" x 6" borderless  48 seconds

MEDIA SUPPORT

Format  Cut Sheet & Roll media

Printable CD's & DVD's

Size  3.5" x 5" (89 x 127mm) to 13" x 19" (329 x 482.6mm) sheets

13" (330.2mm) wide with 2" core rolls

(max roll diameter 82mm)

12" standard shaped printable optical media

Thickness  ASF:

PlainPaper：0.08 - 0.11mm

Genuine Media : 0.08 - 0.50 mm

Front Thick Paper Path : 0.5 - 0.7 mm

Front Straight Path : 0.7 - 1.5 mm

Roll Paper Path : 0.08 - 0.70 mm

Min Margins (Normal Printing)  3mm all directions on standard sheets

3mm left & right, 20mm top & bottom on thick sheets

50mm top, 14mm bottom on rolls

18mm interior diameter margin (21mm recommended) with max 120 diameter total print area on optical media

Borderless Printing (Supported on nominated paper widths for roll media and standard thickness sheets)  A4, A3, A3+ (329 x 483mm), Letter (8.5"x11"), 3.5"x5" (90x130mm), 4"x6" (100x150mm), 16:9 (102x181mm), 5"x7" (130x180mm), 5"x8" (130x200mm), 8"x10" (200x250mm), 10"x12" (254x305mm), 11"x14" (279x356mm) 11"x17" (280x430mm), 12"x12" (300x300mm) sheets

13" (329mm) wide rolls

Max Print Length  18m

Loading  Top rear sheet feeder for plain and photo paper

Front manual for fine art & poster board

Rear roll paper unit (built in)

Roll Handling  Integrated support, operation requires manual cutting

Output  Front with extendable tray

Double Sided Printing  Supported via manual loading however please refer to the user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.

OPERATION

Control Panel  4.3” Touchscreen Colour LCD

Interface  High Speed USB 3.0

Ethernet 10Base-T / 100Base-TX

Wi-Fi 5 (IEEE802.11 b/g/n/ac)

Included Software (Windows)  Printer Driver, Print CD, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Software Updater and Firmware updater on CD

Web Downloads (Windows)  Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, E-Web Print, Firmware Updater & software uninstaller

Web Downloads (Mac)  Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, EpsonNet Config, EpsonNet Setup, Software Updater, Firmware updater & software uninstaller

OS Compatibility  Mac OS X 10.6.8 or later

Windows 10, 8/8.1, 7,

3rd Party S/W Compatibility  Compatible with a wide range of design, production, workflow management, and RIP software

Memory  256MB

Language  ESC/P Raster

ENVIRONMENT

Operational Temp  10° to 35° C (15-25° C recommended)

Operational Humidity  20 to 80% with no condensation (40-60% recommended)

Power Supply  220 – 240V, 50 – 60Hz AC, 0.3A

Power Consumption  22W Operating / 1.1W Sleep / 0.18W Off

Operating Noise  39dB

Operational Space

(W x D x H)  515mm x 769mm x 420mm recommended

(Additional space will be required at rear when using the straight through paper path or roll paper unit)

PHYSICAL

Dimensions (W x D x H)  515 x 368 x 185mm (sheet feeder & output tray closed)

Weight  12.7kg (excludes consumables)

WHAT'S IN THE BOX

Printer, power cord, Set of 25ml inks (a significant amount of ink will be used to charge the machine during initialization, we suggest an extra set be purchased with the printer), 1 x Maintenance tank, Set-up guide, User Manual/driver/utility software CD.

Packaging

(W x D x H)  648 x 483 x 337mm, 16Kg

CONFIGURATION OPTIONS

C11CH38501  Printer with 1 Year Return To Base Warranty**

SCP7063YR  Printer with 3 Year On-Site CoverPlus**
