Epson SureColor T5465 36" Large Format Inkjet Printer |
| Epson SureColor T5465 - 36" |
| Price: |
$5,244.70
|
| Code: C11CJ56401 |
| Availability : In Stock |
| |
|
|
|
| |
|
|
|
|
Product Summary:
Up to 36inch Wide Printing
Up to Resolution 2400 x 1200 dpi
1GB RAM Memory
800 Nozzles Per Colour
4.3" Colour Touch LCD Screen
USB, Network & Wireless
One Year on Site Warranty
Product Description:
The Epson SureColor Technical series is a versatile and compact range of
printers. They are designed for users who need to produce large-format
colour and black-and-white images, economically and at high speed. They
are compatible with a wide range of media from basic bond paper, to
photographic media. They support high resolution print with dense and
consistent colour. They are ideal for maps, plans, drawings, schematics,
geological survey diagrams, sales presentations, POS, posters and
displays.
SIZE
Max Print Width 36 inch wide (914mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration 800 per colour
Maximum Resolution 2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
INK SYSTEM
Family Epson Ultrachrome® XD2
Type All-Pigment Aqueous
Colours C+M+Y+K

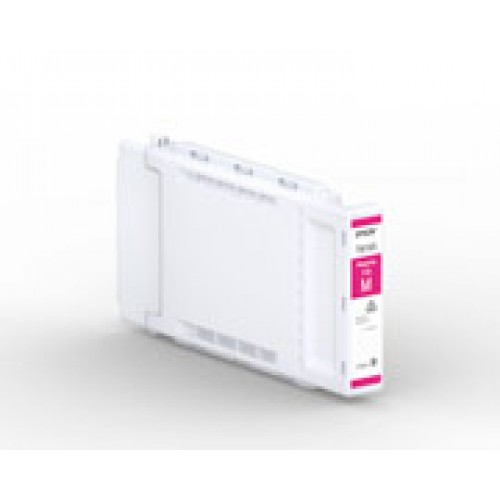

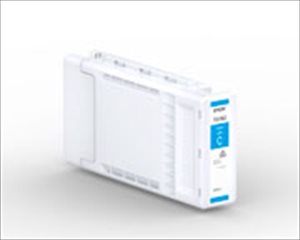

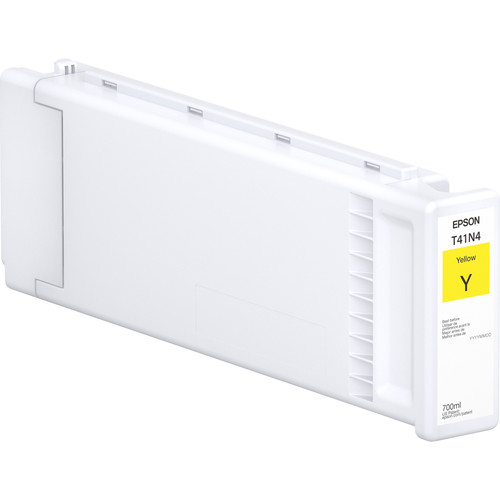

Cartridges CMYK 110ml

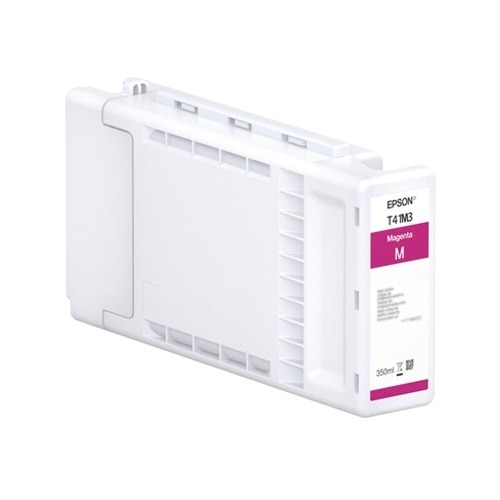

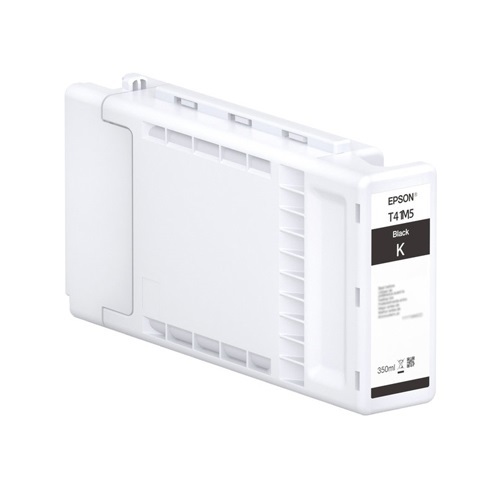

CMYK 350ml

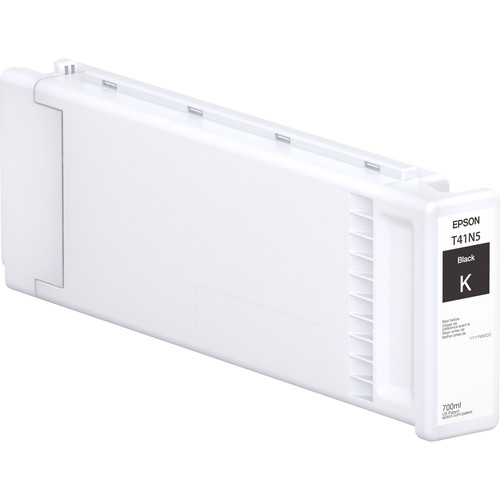

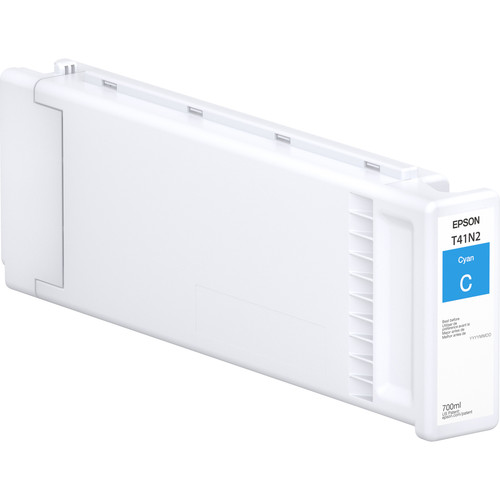

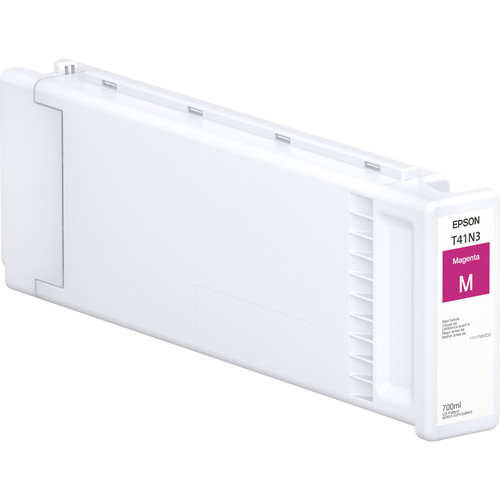

CMYK 700ml
PERFORMANCE (per Sheet)
CAD A1 22sec
MEDIA SUPPORT
Roll
Format Single roll top loaded spindle, 2" core, 3” core for plain
paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max
weight 12kg
Sheet Format Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless Printing Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm)
Cut Sheet only borderless to the left and right of the sheet
Auto Cutter Inbuilt rotary type
Manual
Double Sided Printing Please refer to user guide, and contact Epson or
your authorised dealer before selecting any media for this purpose in
order to check suitability.
Output Printer Stand incorporates a media basket
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control Code ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included Software Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software
via web download HDI driver, CopyFactory, EpsonNet SetupManager, Epson
Device Admin, Epson Edge Dashboard, LFP Accounting tool
Roll
Management System (Roll Format) Barcode Roll Media Management system
helps keep track of the type of media and how many metres is left on the
roll
USB Input Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory 1GB RAM
Business Inkjet Printer Support USB interface with integrated copy and enlargement support for the following printers:
WF-C20590
series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750
Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R,
WF-878R Series, WF-879R Series
Scanner Support USB interface with integrated control & auto enlargement
Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxHxD) Floor Standing: 1385 × 966 × 1070 mm, 76kg (open basket, no consumables, media or options)
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (40 to 60% is recommended for no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz
Power Consumption 38W Operating, 13W Standby, 1.3W Sleep
Operating Noise 50dB
Recommended Install Space (WxHxD) Floor-standing: 1385 × 750 × 1070 mm
SHIPPING INFO
Packaging (WxDxH) Floor standing: 1548 ｘ 850 ｘ 1100 mm, 113Kg
What’s
in the Box Printer, Power Cord, set of 110ml ink cartridges, 1 x

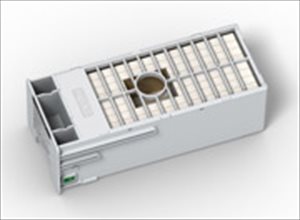

Maintenance Tank, Setup Guide & Warranty Info. Driver, user software
& manuals on CD.
Delivery & Install Some assembly and
configuration may be required. A significant proportion of the included
ink will be required to ‘prime’ the printer and it is recommended that
an additional set be purchased for production work. Delivery, de-boxing
and package removal is not typically included but can be provided at an
additional charge for most locations.
Service & Support Support
and Service is provided via authorised Epson authorised Large Format
Technical Dealers. If you have a problem with a SureColor Technical
printer, a related option or consumable please contact your dealer for
initial problem evaluation. Should a printer require service this will
be provided by on-site free of charge within the period covered by your
Warranty and any optional Service Pack. Note: Provision of service and
support is subject to Large Format Printer Warranty terms and travelling
charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
C11CJ56401 Floor Standing with 1Yr On-Site Warranty
SCT54653YR Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT54655YR Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)**
OPTIONAL ACCESSORIES
C12C933301 Additional Roll Feed Spindle for T5460 (36")
1YWTSCT5465 1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT5465 2 Yrs Epson CoverPlus On-Site Printer Service Pack**
|
Download .pfd brochure for Epson SureColor T5465 36" Large Format Inkjet Printer
Image may differ from actual product
|
