Product Summary:
 Max. Print Speed 170mm/sec.
Up to Res 203 x 203 dpi
102mm Max. Roll Diameter
ePOS Print Language
Automatic Cutting Method
USB & Network Interface
1 Year Return to Base Warranty
Product Description:

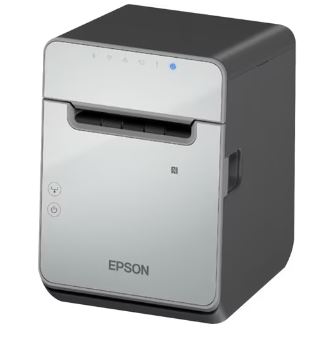

Create high-quality permanent and semi-permanent labels
The TM-L100 supports a range of liner-less media, including thick and highly-adhesive media.
Improve productivity
Reduce time and avoid costly mistakes associated with handwriting labels. The TM-L100 produces clear, legible and highly-adhesive labels, without the need to peel off the backing paper.
Reduce environmental impacts
Print labels without the plastic backing paper, to reduce label waste.
Integrate and connect easily
The TM-L100 can be easily integrated into existing POS systems, thanks to embedded ePOS capacities. The printer also has Bluetooth, Serial and Ethernet connectivity capabilities
Keep downtime to a minimum
High-quality, reliable hardware backed by Epson's history and heritage in the global printer marketplace.
Key Features
Support for liner-free media Improve productivity and reduce environmental impacts
Embedded ePOS capacities Easily integrate with the current POS system
Silicon laminate surface Improved cleanability + anti-sticking surface
Sync and charge functionality Provides power and data over a single cable
Reliable hardware Backed by Epson's proven service and support
Features
Save time and money for your business by using one printer for all your employees
Save your space with the wall-mount option
The printer is capable of printing sharp and detailed monochrome documents quickly
A smart and inexpensive solution to print temporary documents
Delivers high-speed, hassle-free labelling solution for your business needs
Technical Specs
Power Description
Power Source Power Adapter
Interfaces/Ports
USB Yes
USB Host Yes
Miscellaneous
Platform Supported PC
Noise Level 52 dB
Network & Communication
Ethernet Yes
Ethernet Technology Gigabit Ethernet
Cutter
Cutting Method Automatic
Cutter Yes
Cutter Life 1000000 Cuts
Cut Type Partial Cut
Physical Characteristics
Weight (Approximate) 1.60 kg
Form Factor Wall Mount
Height 202 mm
Width 142 mm
Depth 132 mm
Product Color Black
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CJ52101
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-L100 (101)
Product Name TM-L100 (101) Direct Thermal Printer
Product Series TM
Brand Name Epson
Media Types & Handling
Media Thickness 103 µm
Maximum Roll Diameter 102 mm
Media Type Black Mark
Continuous Label
Label
Liner-free Label
Receipt
Media Sensor Paper End Sensor
Cover Open Sensor
Black Mark Sensor
Maximum Label Width 80 mm
Technical Information
Application/Usage Desktop
Recommended Use Label Print
Power Consumption 150 µA
Print Head Life 75KM
Installation Horizontal/Vertical
Print Color Capability Monochrome
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 35000000
Character Sets 37 International
128 x 11 Graphic
95 Alphanumeric
Fonts Included ANK
Maximum Print Resolution (dpi) 203 x 203
|
