Product Description
Providing world-class performance for busy workgroups is the
ultra fast, reliable and robust DS-970 document scanner. Designed for
high-volume environments where speed and dependability are critical, the
DS-970 offers lightning-fast speeds up to 85 ppm/170 ipm1, plus a
100-page ADF and peak daily duty cycle of up to 9,000 sheets2. And, it’s
all backed by a 12 month limited warranty. The included TWAIN and ISIS®
drivers ensure seamless integration with existing software, while a
convenient, colour LCD display and buttons make navigating scan jobs and
selecting modes easy.

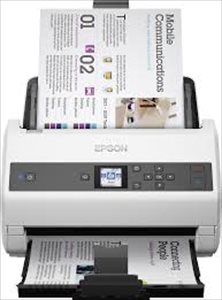

Epson WorkForce DS-970 B11B251501
SCANNER TYPE Sheet Feed, one pass duplex A4 colour scanner
OPTICAL RESOLUTION 600 DPI x 600 DPI (Horizontal x Vertical)
PAPER FORMATS A4, A5, A6, B6, B5, B4, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function
COLOUR DEPTH Input: 30 Bits Colour , Output: 24 Bits Colour
ULTRASONIC DETECTOR Yes
APPLICATION High Capacity, General Office
REC. VOLUME 7,000 pages per day
FILE COMPRESSION TIFF Compression (JPEG(7) , CCITT G4, LZW), PDF Compression, JPEG compression
MAXIMUM EFFECTIVE SCAN AREA
DOCUMENT SIZE A4, A5, A6, B6, B5, B4, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function
INPUT TRAY CAPACITY 100 sheets (Based on 75g/m2 paper)
PAPER WEIGHT 40-210 g/m2
SCANNING SPEED
(A4/Letter Size) Monochrome: 85 pages/min - Colour: 85 pages/min measured with size: A4 , resolution: 200 / 300 dpi
Monochrome: 170 image/min - Colour: 170 image/min measured with size: A4 , resolution: 200 / 300 dpi
FUNCTIONS
OUTPUT FORMATS BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, PDF/A, PNG
BUNDLED SOFTWARE Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2
SUPPORTED PLATFORMS
OPERATING SYSTEMS Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003,
Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3
INTERFACE USB 3.0
DRIVERS TWAIN, ISIS (Web download), Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows)
ENVIRONMENTAL CONDITIONS
TEMPERATURE Operation 5° C - 35° C, Storage 25° C - 60° C
HUMIDITY Operation 15% - 80%, Storage 15% - 85%
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100-240V
FREQUENCY 50 to 60Hz (Rated)
47 to 63Hz (Input)
POWER CONSUMPTION Operating: 30W
Ready mode: 10W
Sleep mode: 1.5W
Power Off: 0.1W
DIMENSIONS
WIDTH x DEPTH x HEIGHT 296 x 169 x 167 mm (Width x Depth x Height)
WEIGHT Approx. 3.6kg
WHAT'S IN THE BOX
AC adapter, Driver and utilities (CD), Main unit, Power cable, Setup guide, USB cable, Warranty card
PRODUCT OPTIONS Item Code Description
B12B808461 Network Adaptor
B12B819051 Carrier Sheet
B12B819291 Cleaning Kit
B12B819031 Roller Assembly Kit
B12B819011 Flatbed Conversion Kit
WARRANTY
Standard 12 Months Warranty RTB (Return to base)
