Product Summary:
 Up to 20ppm in Mono & Colour
Up to Res 4800 x 1200 dpi
2.2" Mono LCD Display
500 Sheet Input Tray
Double Sided Printing
USB, Network & Wireless
One Year Limited Warranty
Product Description:
The Epson WF-R5190 workgroup printer enables offices to benefit from the
increased productivity of a local distributed print fleet that requires
minimal intervention, while providing predictable print costs.
PRINTER TYPE
WorkForce Pro WF-R5190 C11CE28501
PRINTING METHOD PrecisionCore 4S printhead 4 Colour inkjet
PRINTER LANGUAGE Epson ESC/P®- R, PCL 5 emulation3, PCL 6 emulation3, PostScript 3
MINIMUM INK DROPLET SIZE 3 droplet sizes, as small as 2.8 picolitres
DUTY CYCLE2 Up to 45,000 pages (Recommended monthly page volume : up to 2500 pages)
RESOLUTION
PRINTING 4800 x 1200 optimised dpi (with Variable Sized Droplet Technology)
PRINT SPEED
BLACK - SINGLE SIDED PRINTING 20.0 ISO ppm
COLOUR - SINGLE SIDED PRINTING 20.0 ISO ppm
BLACK - 2 - SIDED PRINTING 11.0 ISO ppm
COLOUR - 2 - SIDED PRINTING 11.0 ISO ppm
PAPER HANDLING
PAPER FEED METHOD Friction feed with paper feeder and automatic document feeder
PAPER
SIZES A4, A5, A6, B5, C4 (Envelope), C6 (Envelope), No. 10 (Envelope),
Letter, 10 x 15 cm, 13 x 18cm, 20 x 25 cm, 16:9, Legal
PAPER HOLD
CAPACITY Paper tray input capacity: 500 sheet cassette, (Plus 80 sheet
rear tray) A4 Plain paper (80g/m2) / 10 Envelopes
OUTPUT TRAY CAPACITY 150 pages
DOUBLE-SIDED PRINTING Yes (internal)
COMPATIBLE PAPER WEIGHT 64 g/m2 ~ 256g/m2
DUPLEX Yes (Automatic)
GENERAL
OPERATING SYSTEMS
PRINTER
DRIVERS* Operating Systems Windows® 8.x (32-bit, 64-bit), Windows 7
(32-bit, 64-bit), Windows Vista® (32-bit, 64-bit), Windows XP SP3
(32-bit), Windows XP Professional x64 Edition, Windows Server® 2012 R26,
Windows Server 20126, Windows Server 2008 R26, Windows Server 20086,
Windows Server 2003 R26, Windows Server 20036, Mac OS® X 10.5.8 –
10.10.x7, Mac OS X Server7
* Drivers if available are downloadable from Tech Epson
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100 ~ 240V Universal (Automatic)
RATED FREQUENCY 50 ~ 60Hz
POWER CONSUMPTION
Approx. 17W Standalone copying (ISO/IEC 24712)
Approx 3.8W (Sleep Mode)
NOISE LEVEL
NOISE LEVEL* Power: 5.3 dB(A)
Pressure: 52 dB(A)
CONNECTIVITY
STD CONNECTIVITY High–Speed USB — (compatible with the USB 2.0 Specification)
Wireless LAN IEEE (802.11 b/g/n)4
Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T)
Wi-Fi Direct4
NETWORK PROTOCOLS TCP/IP v4/v6
NETWORK PRINTING PROTOCOLS IPP, LDP, Port 9100, WSD
NETWORK MANAGEMENT PROTOCOLS SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, Ping, SLP, WSD, LLTD
CONTROL PANEL Mono LCD Display panel
WLAN SECURITY WEP 64 Bit, WEP 128 Bit, WPA PSK (AES)
PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY)
SOFTWARE TOOLS Epson Printer Driver
PCL 5 Driver, PCL 6 Driver emulation, PostScript 3
WARRANTY
STANDARD WARRANTY 12 Months (on-site) – Please refer to Epson Warranty Terms and Conditions
DIMENSIONS
PRODUCT DIMENSIONS 664mm x 435mm x 413mm (Width x Depth x Height)
WEIGHT 24.25kg
INK PACKS & YIELDS
INK TYPE DURABrite Ultra pigment ink (smudge, fade and water resistant)
INK PALLETTE Cyan, Magenta, Yellow and Black
INK PACK CONFIGURATION 4 Individual Ink Packs
FADE RESISTANCE / PRINT LONGEVITY Up to 118 years1
REPLACEMENT INK PACKS

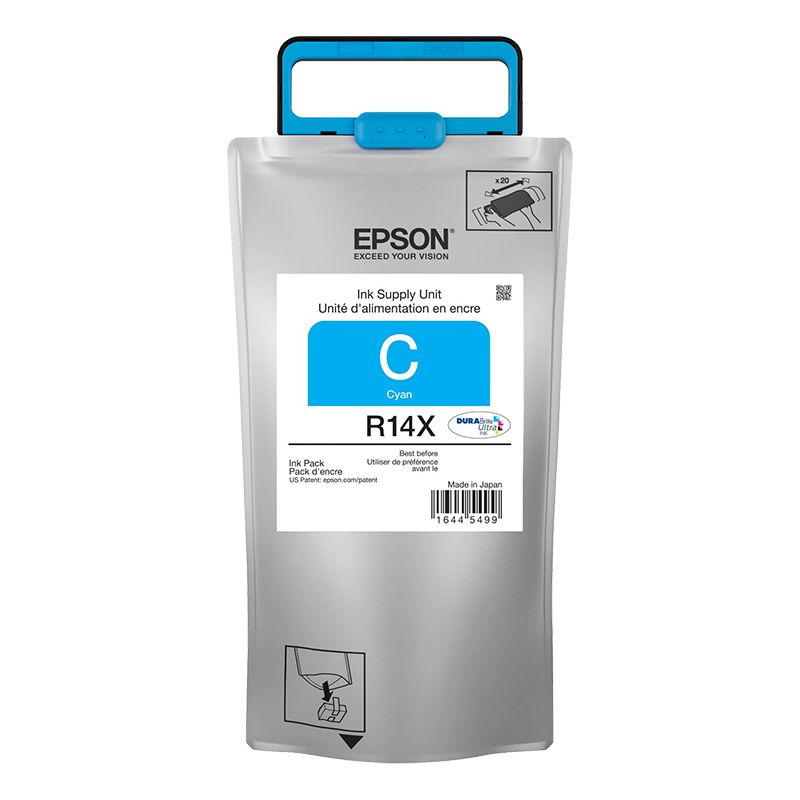

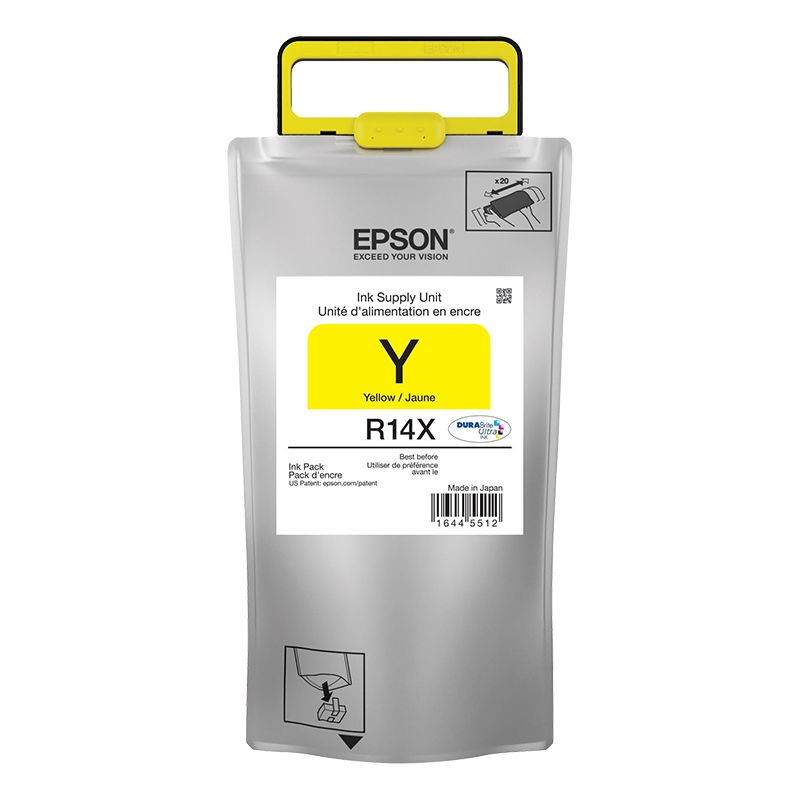

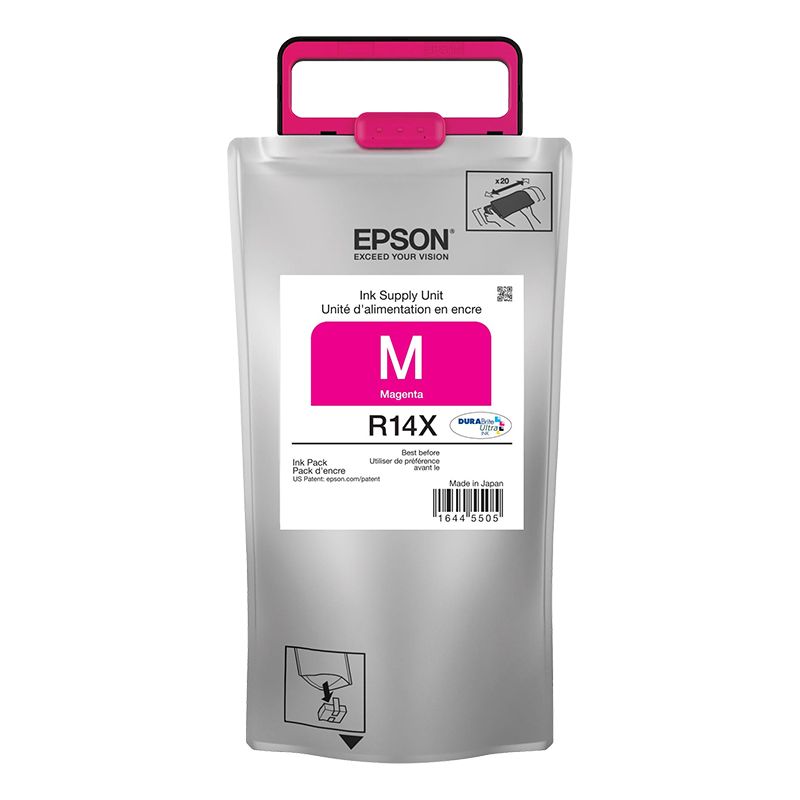

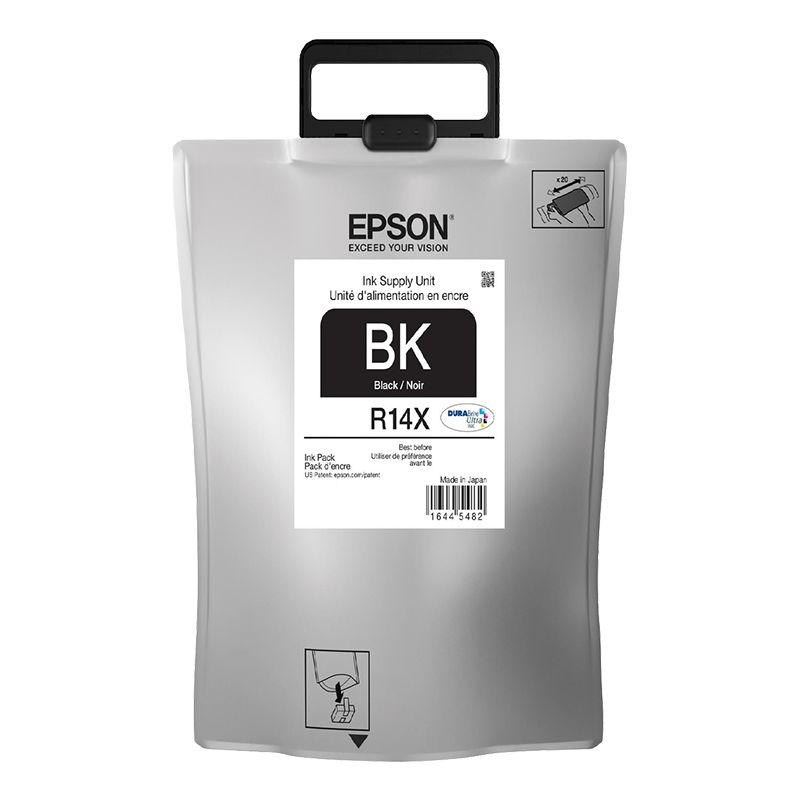

XXL INK PACKS R14X Black, R14X Cyan, R14X Magenta, R14X Yellow
INK YIELD INFORMATION
XXL CAPACITY YIELD^ Approx. Black 50,000 pages, Colour – 50,000 pages
|
Download .pfd brochure for Epson Workforce Pro WF-R5190 A4 Color Inkjet Printer
Image may differ from actual product
|
