Product Summary:
 Up to 48ppm in Mono
Up to Res 1200 x 1200 dpi
550 Sheets Input Tray
50 Pages ADF Capacity
5-inch Colour Touch Panel
USB & Network Interface
One Year on-Site Warranty
Product Description:
The new “Apeos” offers advanced features with high-security levels and easy operability to help businesses diversify with time. “Apeos” devices are able to connect smoothly with a variety of solutions and services to realise an all-new agile remote workstyle of working anytime, anywhere.
Copy/Print (Monochrome): 4830 48 ppm
Scan (Colour/Monochrome): 4830 96 ppm
Fax: Super G3 FAX
Printing Resolution: 1,200 x 1,200 dpi
Control Panel: Tilted Colour Touchscreen 4830 5 inches
Wireless LAN supported
Mobile supported
Cloud Interactive
Security
Basic Specifications / Copy Function
Type Desktop
Memory Capacity 4 GB (Max: 4 GB)
Storage Device Capacity 128 GB
Scan Resolution 600 x 600 dpi
Printing Resolution 1,200 x 1,200 dpi
Warm-up Time 33 seconds or less (23 degrees Celsius room temperature)
Recovery Time
(Recovery Time from Sleep Mode) 20 seconds or less (23 degrees Celsius room temperature)
Original Size Maximum of A4, Letter, Legal*3 for both Sheet and Book
Paper Size
Max A4, Letter, Legal
Min A6 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm
Paper Weight
Paper Tray 60 to 220 gsm
Bypass Tray 60 to 220 gsm
First Copy Output Time 6.0 sec. (A4)
Continuous Copy Speed
4830 48 ppm
Paper Tray Capacity
Standard Standard Tray: 550 sheets Bypass Tray: 150 sheets
Optional 550-Sheet Feeder: 550 sheets
Max 2,350 sheets [Standard + 550-Sheet Feeder x 3]
Output Tray Capacity 250 sheets
Dimensions
4830 W 420 x D 500*8 x H 565 mm
Weight
4830 27 kg
Print Function
Type Built-in type
Paper Size
Max A4, Letter, Legal [215.9 x 520 mm when using
Bypass Tray] Min A6 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm
Continuous Print Speed Same as the Basic Specifications / Copy Function
Printing Resolution
Standard [PCL Driver] Standard: 1,200 x 1,200 dpi, High Quality: 1,200 x 1,200 dpi, High Resolution: 1,200 x 1,200 dpi
Optional [Adobe® PostScript® 3TM Driver] Standard: 1,200 x 1,200 dpi, High Quality: 1,200 x 1,200 dpi, High Resolution: 1,200 x 1,200 dpi Page
Description Language
Standard PCL5 / PCL6
Optional Adobe® PostScript® 3TM
Supported Operating System Standard [PCL Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) [Mac OS X Driver] macOS 12 / 11 / 10.15 / 10.14
Optional [Adobe® PostScript® 3TM Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 12 / 11 / 10.15 / 10.14
Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)
Scan Function
Type Colour Scanner
Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder
Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

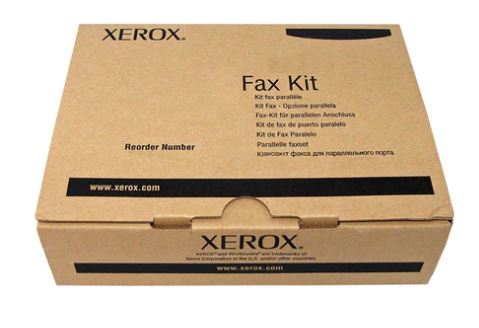

Fax Function (Optional)
Original Size Max: A4, Legal
Recording Paper Size Max: A4, Legal; Min: A5
Transmission Time 2 seconds and more but fewer than 3 seconds
Transmission Mode ITU-T G3
Applicable Lines Telephone subscriber line, PBX, Fax Communication (PSTN), Maximum 1 port*3 (G3-1 port)
Duplex Automatic Document Feeder
4830
Original Size / Paper Weight Max: A4, Letter, Legal; Min: A5 60 to 128 gsm (In Duplex: 60 to 128 gsm)
Capacity
4830 50 sheets
Scan Speed
4830 Copy (A4, Simplex) B/W: 48 ppm
4830 Scan B/W: 48 ppm, Colour: 48 ppm (1 pass, 2-sided scanning; B/W and Colour: 96 ppm) [Standard Document (A4), 200 dpi, to Folder]
|
