Product Summary:
 70ppm Simplex & 140ipm Duplex
Up to Optical Res 600 dpi
100 Sheets ADF Capacity
10K Sheets Daily Voloume
RGB LED x 2 Light Source
USB & Network Interface
One Year Limited Warranty
Product Description:

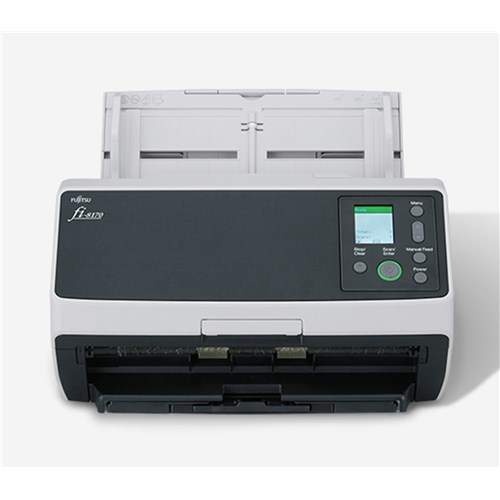

The fi-8170 offers an innovative and superior scanning experience. Compact and reliable, the scanner achieves scan speeds of 70 ppm/140 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with the capability of scanning up to as many as 10,000 sheets a day.
Scans big volumes with “Automatic Separation Control”
"Paper Protection" function using Image Monitoring technology and sound technology
Optimized high-quality image data with "PFU Clear Image Capture"
Scans a variety of documents including passports and booklets
Color LCD Panel for easy operation
PaperStream IP and PaperStream Capture provide advanced image processing functions, with PaperStream Capture Pro software as a premium option
PaperStream ClickScan for ad-hoc use
Specifications
Product Name fi-8170
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Portrait)
(Color/Grayscale/Monochrome) Simplex 70 ppm (200/300 dpi)
Duplex 140 ipm (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution (Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White / Black (selectable)
Document Size Maximum 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum 48 x 50 mm (1.9 x 2 in.)
Long Page Scanning 6,096 mm (240 in.)
Paper Weight (Thickness) Paper 20 to 465 g/m² (5.3 to 124 lb)*8
Booklet Less than 7 mm (0.276 in.)
Plastic Card 1.4 mm (0.055 in.) or less
ADF Capacity 100 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume 10,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Image monitoring, Sound detection (iSOP)
Interface USB USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements AC 100V - 240V 50/60 Hz
Power Consumption Operating Mode 28 W or less / 17 W (Eco mode)
Sleep Mode LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode 0.2 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 15 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (W x D x H) 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight 4 kg (8.8 lb)
Supported Operating System Windows® 11*16, Windows® 10*16, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS*17, Linux (Ubuntu)*17
Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*18, Image Scanner Driver for macOS (ICA)*18*19, Image Scanner Driver for Linux (SANE)*18*19, PaperStream Capture, PaperStream ClickScan*19, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*19, Scanner Central Admin
Image Processing Functions Multi-image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
|
