Product Summary:
 90ppm Simplex & 180ipm Duplex
Up to Optical Res 600 dpi
100 Sheets ADF Capacity
13K Sheets Daily Volume
RGB LED x 2 Light Source
USB & Network Interface
One Year Limited Warranty
Product Description:

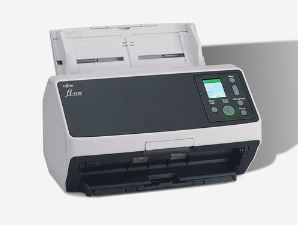

Fujitsu fi-8190 Large Format ADF/Manual Feed Scanner - 600 dpi Optical - 24-bit Color - 8-bit Grayscale - 90 ppm (Mono) - 90 ppm (Color) - Duplex Scanning - USB
The fi-8190 provides unmatched performance and market-leading document imaging capabilities. Compact and reliable, the scanner achieves scan speeds of 90 ppm/180 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 13,000 sheets a day.
Image Quality
Clear Image Capture (CIC) technology resets the benchmark for high-quality image capture, by combining the reliability and flexibility of Contact Imaging Sensor (CIS) hardware, with an industry-leading, image processor. CIC technology delivers precise, crisp images, and industry-leading OCR accuracy rates while also removing unwanted watermarks and artifacts.
Paper Feeding
Evolved paper handling with a large 100-page hopper, an all-wheel drive mechanism, and fast 140 images captured per minute, make the fi-8190 one of the easiest and most efficient scanners to operate. The patented Automatic Separation Control uses state of the art technology to sense paper weights and adjusts to consistently separate documents and provide the perfect feed, ensuring documents are safely captured.
Reliability
The fi-8190 is built to last and powers up every time you need it regardless of job size. Strong urethane rollers, heavy duty motors, a sturdy frame, and durable consumables combine for a long-lasting scanner that will let your organization capture the volumes of paper from seasonal peaks and heavy backlogs, worry free. Backed by Fujitsu's US-based, legendary solutions architects and support teams.
Features
Large format scanner - Helps improve access to and management of all your large files
The color scanner enables scanning the document or photo in its original color
Color accuracy can be managed with 24-bit depth
Technical Specs
Interfaces/Ports
USB Yes
Miscellaneous
Energy Star Yes
Physical Characteristics
Weight (Approximate) 8.80 lb
Height 6.4"
Width 11.8"
Depth 6.7"
Technical Information
Media Size Legal - 8.50" x 14"
Legal - 8.50" x 14"
Scanning Modes Duplex
Color Depth 24-bit
ADF Capacity 100 Sheets
100 Sheets
Media Type Paper Document
Booklet
Plastic Card
Scan Color Grayscale
Monochrome
Color
Grayscale Depth 8-bit
Maximum Mono Scan Speed (ppm) 90
Maximum Color Scan Speed (ppm) 90
Maximum Mono Scan Speed (ipm) 180
Maximum Color Scan Speed (ipm) 180
Large Format Yes
Duplex Scanning Yes
Optical Resolution (dpi) 600
General Information
Product Type ADF/Manual Feed Scanner
Manufacturer Part Number PA03810-B005
Manufacturer Website Address http://us.fujitsu.com
Manufacturer Fujitsu
Product Model fi-8190
Product Name fi-8190 ADF/Manual Feed Scanner
Product Series fi
Brand Name Fujitsu
Software
Operating System Supported Windows Server 2012
Windows Server 2016
Windows Server 2022
Windows 8.1
Windows 7
Windows 2019
Windows 2012 R2
Windows 2008 R2
Windows 11
Windows 10
Ubuntu
Mac OS
Linux
|
