Product Summary:
 30ppm Simplex & 30ppm Duplex
Up to Optical Res 600 dpi
20 Sheets ADF Capacity
RGB Color LED Light Source
CIS x 2 Image Sensor
USB & Wireless Interface
One Year Limited Warranty
Product Description:
ScanSnap iX1300 is a compact, yet powerful solution to all your daily and ad-hoc scanning needs. Being compact and multi-functional, the iX1300 is the perfect model for a hybrid workstyle.
Specifications

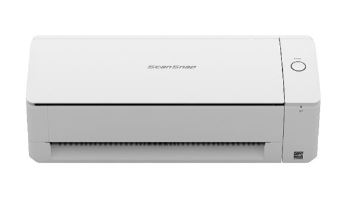

Product Name ScanSnap iX1300 (White / Black)
Scanner Type ADF (Automatic Document Feeder) / Manual Feeder, Duplex
Scanning Speed (A4 portrait) U-turn Scan (ADF) Auto mode Simplex / Duplex: 30 ppm
Normal mode Simplex / Duplex: 30 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode Simplex / Duplex: 30 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode Simplex / Duplex: 30 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode Simplex / Duplex: 9 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Return Scan (Manual Feeder)
Auto mode 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Normal mode 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode 5 seconds (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode 5 seconds (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode 14 seconds (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Scanning Color Mode Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection)
Image Sensor CIS x 2 (Front x 1, Back x 1)
Light Source 3 color LED (Red / Green / Blue)
Optical Resolution 600 dpi
Document Size
U-turn Scan (ADF) Minimum: 50.8 x 50.8 mm (2 x 2 in.)
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
Return Scan (Manual Feeder) Minimum: 50.8 x 50.8 mm (2 x 2 in.)*6
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
With Photo Carrier Sheet (Option)Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 127 x 178 mm (5.0 x 7.0 in.)
With Carrier Sheet (Option) Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 297 x 431.8 mm (11.69 x 17 in.)
With Booklet Carrier Sheet (Option) Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 150 x 195 mm (5.9 x 7.67 in.)
Long Paper Scanning
PC 3,000 mm (863 mm in 32-bit)*8
Smart Device / Cloud Duplex: 863 mm
Simplex: 1,117 mm
Paper Weight (Thickness)
U-turn Scan (ADF) 40 to 128 g/m² (11 to 34 lb)
A8 size or less: 128 to 209 g/m² (34 to 56 lb)
A6 size or less: 40 to 209 g/m² (11 to 56 lb)
Return Scan (Manual Feeder) Paper: 20 to 413 g/m² (5.4 to 110 lb)
Booklets: 2 mm (0.08 in.) or less*3
Cards: 1.4 mm (0.06 in.) or less*9
(Includes embossed cards)
ADF Capacity 20 sheets (A4, 80 g/m² or 20 lb)
Multifeed Detection Length detection
Interface
USB USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 (Connector Type: Type-B)*11
Wi-Fi IEEE802.11a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz*12
Wi-Fi Interface
Connection Mode Access Point Connect Mode (Infrastructure mode)*13
Direct Connect Mode (Ad-hoc mode)*14
Security WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES)
Easy Installation WPS2.0
Rated Power (EIRP) (North America) 2.4 GHz: 11b: +23.5dBm / 11g: +22.0dBm / 11n/ac: +22.0dBm (20 / 40MHz)
5 GHz*12: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz)
Rated Power (EIRP) (Others) 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz)
5 GHz*12: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz)
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption
Operating Mode 17 W or less
Sleep Mode USB connected: 1.7 W or less
Wi-Fi connected: 2.0 W or less
Standby Mode 0.3 W or less
Operating Environment
Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR® / RoHS
Dimensions (W x D x H) 296 x 114 x 87 mm (11.7 x 4.5 x 3.3 in.)
Weight 2.0 kg (4.4 lb)
Driver ScanSnap specific driver
Windows®: Does not support TWAIN / ISIS®
macOS: Does not support TWAIN
Software ScanSnap Home (All-in-one document management software/driver)
ScanSnap Manager (Conventional driver)
ABBYY FineReader for ScanSnap™
Included Items Safety Precautions, AC Cable, AC Adapter, USB Cable
|
