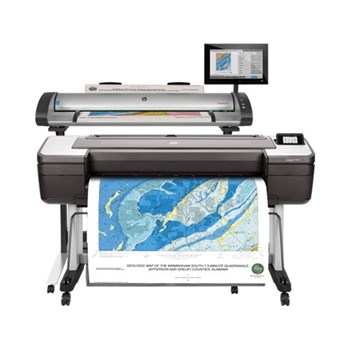

Quickly print and scan documents, maps, and drawings with the HP DesignJet SD Pro MFP. See high-quality results at fast speeds. Accelerate workflows and handle even the most complex files with this reliable, secure printer.
MODEL SIZE 1118 mm
FUNCTIONS Print, copy, scan
PRINT SPEED LINE DRAWING (ECONOMODE, A1 PLAIN PAPER) 116 pages per hour[1]
LINEAR SCAN SPEED Up to 15 cm/sec (color, 200 dpi); up to 33 cm/sec (black-and-white, 200 dpi)
MEMORY Printer: 128 GB (virtual)[4]; Scanner: 4 GB
INTERNAL STORAGE Printer: 500 GB self-encrypting; Scanner: 500 GB
PRINT QUALITY COLOR (BEST) Up to 2400 x 1200 optimized dpi
PRINT TECHNOLOGY HP Thermal Inkjet
NUMBER OF PRINT CARTRIDGES 6 (cyan, magenta, yellow, photo black, matte black, gray)
REPLACEMENT CARTRIDGES This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at: http://www.hp.com/learn/ds
INK TYPES Dye-based (C, M, Y, PK, G); pigment-based (MK)
NON-PRINTABLE AREA (CUT-SHEET) 3 x 17 x 3 x 3 mm
GUARANTEED MINIMUM LINE WIDTH 0.06 mm (ISO/IEC 13660:2001(E))[3]
LINE ACCURACY ±0.1%
MAXIMUM OPTICAL DENSITY (BLACK) 2.15 maximum black optical density (6 L*min) With HP Premium Instant Dry Photo Gloss media with Original HP inks
ENHANCED SCANNING RESOLUTION 9600 dpi
SCANNER TYPE Sheetfed
SCAN SIZE, MAXIMUM 1118 mm
SCAN SIZE, MINIMUM 152 x 114 mm
COPY REDUCE / ENLARGE SETTINGS 1 to 10000%
COPIES, MAXIMUM 1000
BIT DEPTH 48-bit/16-bit
FINISHED OUTPUT HANDLING Printer: Sheet feed; two automatic roll feeds; automatic roll-switching; automatic cutter; Scanner: Straight-through scan paper path for sheet and cardboard originals
MEDIA TYPES Printer: Bond and coated paper, technical paper, film, photographic paper, backlit, self-adhesive; Scanner: Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
MEDIA WEIGHT, RECOMMENDED 60 to 328 g/m²
MEDIA SIZES STANDARD (METRIC ROLLS) 279 to 1118 mm
MEDIA SIZES, CUSTOM 210 x 279 to 1118 x 1676 mm
ROLL EXTERNAL DIAMETER 135 mm
MEDIA THICKNESS Up to 31.5 mil
HP EPRINT CAPABILITY Yes
CONNECTIVITY, STANDARD Printer: Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port; Scanner: Gigabit Ethernet (1000Base-T); Hi-Speed USB 3.0 certified
PRINT LANGUAGES Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4
POWER CONSUMPTION Printer: < 100 W (printing); < 24 W (ready); < 1 W (< 6.5 W with embedded Digital Front End) (sleep); 0.35 W (off); Scanner: 47 W (scanning); 32 W (ready); 1.8 W (sleep)
OPERATING TEMPERATURE RANGE 5 to 40ºC
OPERATING HUMIDITY RANGE 20 to 80% RH
DIMENSIONS (W X D X H) Printer: 1802 x 695 x 998 mm; Scanner: 1530 x 930 x 1660 mm
MANUFACTURER WARRANTY 1 Year Limited Warranty (Next Business Day On-Site)
WHAT'S IN THE BOX Printer: HP DesignJet T1700dr 44-in PostScript Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits; Scanner: HP SD Pro Scanner, stand, touchscreen (panel PC), quick reference guide, setup poster, copy/scan software, documentation software, Ethernet cables (x2), power cords
SOFTWARE INCLUDED
HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, integrated software with scan and copy enhancement features
