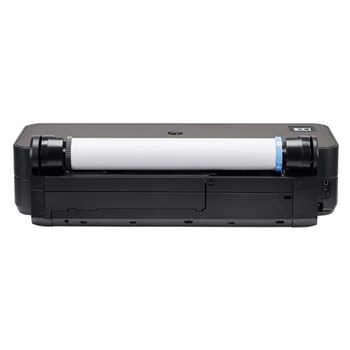

HP Designjet T250 A1 24" Large Format Inkjet Printer

The HP 5HB06A Large Format Compact Wireless Plotter Printer is designed to fit your office, budget, and the way you work, the world's smallest plotters provide outstanding simplicity. Send multiple files in just one click. Print your A1/D plot as fast as 30 seconds. 500 MB memory. AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text Print easily and affordably with the world's smallest wide-format printer.



Impressive simplicity helps you save time and reduces waste. Use up to 95% less ink for routine maintenance.[4] Be efficient and productive from job prep to final print. This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked.



Functions

Print

Print speed, maximum  30 sec/page on D, 76 D prints per hour

Resolution (color) Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges 4 (C, M, Y, K)

Product disclaimer

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

http://www.hp.com/go/learnaboutsupplies

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

512 MB

Hard disk

None

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.7 in (5 x 5 x 5 x 17 mm)

Line accuracy

±0.1%

[3]

Maximum optical density (black)

8 L* min/2.10 D

[4]

Finished output handling

Sheet feed, roll feed, automatic horizontal cutter

Media sizes supported

A4, A3, A2, A1

Media sizes, custom

8.3 x 11 to 24 x 74.7 in (210 x 279 to 610 x 1897 mm)

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes, standard

11 to 24 in (279 to 610 mm)

Roll external diameter

3.9 in (100 mm)

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Operating temperature range

41 to 104ºF (5 to 40ºC)

Warranty

One-year limited hardware warranty

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Dimensions (W X D X H)

39.9 x 17.3 x 11.2 in (1013 x 440 x 285 mm)

Weight

47.4 lb (21.5 kg)

Package weight

61.7 lb (28 kg)

What's in the box

HP DesignJet T250 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
