Product Summary:
 Up to 40ppm Mono & Colour
Up to Print Res 1200 x 1200 dpi
250 + 1 Sheet Standard Input
125K Pages Monthly Duty Cycle
Integrated Double Sided Printing
USB, Ethernet & Wireless
One-Year Limited Warranty
Product Description:

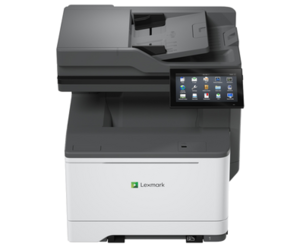

With exceptional performance and secure design, the CX635adwe Multifunction printer (copy/scan/print/fax) delivers enhanced productivity of up to 40 pages per minute* and toner yields of up to 20,000 pages mono, and up to 11,700 pages colour**. Engineered for long life with environmental certifications and advanced power management, this efficient model has high sustainability. Fast time to first print, superior print quality, and easy-to-use touch screen. Our sophisticated, IoT-ready printers are loaded with sensors that continuously monitor hundreds of data points that provide added benefits, like predictive service and automatic supplies replenishment when they are connected to Lexmark Cloud Services. With the large, buttonless touch screen, the user can intuitively perform tasks. Workflow solutions, like Scan Centre for simple document routing, are standard.
General Specs
Part no. 50M7087
Print Technology Colour Laser Printer
Function Analogue Fax
Colour Copying
Colour Printing
Colour Scanning
Trusted Platform Module (TPM)1
Workgroup Size Medium Workgroup
Display Lexmark e-Task 7-inch (17.8 cm) colour touchscreen
Media Sizes Supported A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope
Included Paper Handling 200-sheet Output Bin, Integrated Duplex, Single sheet multipurpose feeder, 250-sheet Tray
Standard Ports Gigabit Ethernet (10/100/1000), MarkNet N8370 802.11 a/b/g/n/ac, Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B)
Size (mm - H x W x D) 491.4 x 479 x 475.1 mm
Weight 27.05 kg
Packaged Size (mm - H x W x D) 600 x 636 x 575 mm
Packaged Weight, kg 32.3 kg
Copying
Copy Speed Up to:Black: 39.5 cpm2 (A4) Colour: 39.5 cpm2 (A4)
Copy Speed Duplex Up to: Black: 20 spm2 (A4) Colour: 20 spm2 (A4)
Time to First Copy as fast as: Black: 6.674 seconds Colour: 6.579 seconds
Reduce / Enlarge Range 25 - 400 %
Faxing
Modem Speed ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Fax Transmission Speed < 3 seconds per page
Printing
Print Speed Up to: Black: 40 ppm (A4) Colour: 40 ppm (A4)
Print Speed Duplex Up to: Black: 20 spm2 (A4) Colour: 20 spm2 (A4)
Time to First Page as fast as: Black: 6.3 seconds Colour: 6.3 seconds
Print Resolution
Black: 1200 x 1200 dpi, 4800 Colour Quality
Colour: 4800 Colour Quality, 1200 x 1200 dpi
Duplex 2-sided: Integrated Duplex
Printable Area metric: 4.2 mm of the top, bottom, right and left edges (within)
Scanning
ADF Scan DADF (single pass Duplex)
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr Up to:
Black: 49 / 52 sides per minute
Colour): 40 / 42 sides per minute
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr Up to:
Black: 98 / 104 sides per minute
Colour): 80 / 84 sides per minute
Scan Technology CIS
Optical Scanning Resolution 600 X 600 dpi
Scan File Formats Send as: TIFF, Searchable PDF (optional OCR and ISD or hard drive required), BMP, JPEG, JPG
Scan Destinations e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP
ADF 100-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity
Up to: 100 pages 75 gsm bond
Up to: 100 pages 75 gsm bond
Paper Handling
Media Types Supported Vinyl Labels, Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide
Number of Paper Inputs Standard: 2 Maximum: 6
Paper Input Capacity
Standard: 251 pages 75 gsm bond
Maximum: 2001 pages 75 gsm bond
251 pages 75 gsm bond
Paper Output Capacity Up to:
Standard: 200 pages 75 gsm bond
Maximum: 200 pages 75 gsm bond
Paper Weight Range Supported gsm:
60 - 216 gsm (Standard Tray)
60 - 176 gsm (Multipurpose Feeder)
Optional Paper Handling 650-Sheet Duo Tray, 550-Sheet Tray
Recommended Monthly Page Volume 1,500 - 10,000 pages
Maximum Monthly Duty Cycle Up to: 125,000 pages per month
Cartridges & Imaging
Laser Cartridge Yields up to:
20,000-page Black Cartridge
11,700-page Colour (CMY) Cartridges
Cartridge(s) Shipping with Product 3,000-page Black Return Program Toner Cartridge5, 2,0005-page Colour (CMY) Return Program Toner Cartridges5
Replacement Cartridges: The product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.
Hardware
Processor Speed Quad Core, 1.2 GHz
Memory
Standard: 2048 MB
Maximum: 2048 MB
Hard Disk Intelligent Storage Drive available; Magnetic Hard Disk available
Printer Languages
Standard: PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets OCR-A, OCR-B scalable PCL 5e fonts, 2 PCL 6 bitmap fonts, 163 scalable PostScript fonts, 94 scalable PCL 6 fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display Yes
Connectivity
Network Protocol Support IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP
Network Security SSL Cipher Configuration, Certificate Management, TCP Restricted Server List, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown
Supported Operating Systems
Microsoft Windows Operating Systems Supported Windows Server 2008 x64 running Terminal Services, Windows 11, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows Server 2022, Windows Server 2008, Windows 8 x64, Windows Server 2012, Windows Server 2003 x64, Windows Server 2003, Windows Server 2012 R2, Windows Server 2003 x64 running Terminal Services, Windows Server 2003 running Terminal Services, Windows 10, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows 2000 Server running Terminal Services, Windows Server 2008 R2, Windows 7 x64, Windows Server 2016, Windows XP x64, Windows Me, Windows XP, Windows Vista x64, Windows 2000, Windows Server 2019, Windows NT (4.00/4.00 Server), Windows Vista, Windows 98 2nd Edition, Windows 7
Apple Operating Systems Supported Support is provided through AirPrint and AirScan only
Android Operating System Support Support is provided through Mopria® Print Service and Mopria Scan.
Linux Operating Systems Supported OpenSUSE 15.1, Red Hat Linux 8.3, Debian 9.4, Red Hat Linux 7.9, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 12 SP5, Fedora 33, Fedora 32, Debian 10, Ubuntu 20.04, Ubuntu 18.04 LTS, OpenSUSE 15.2
Citrix MetaFrame Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64, Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0, Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5, Microsoft Windows Server 2008 R2 Standard Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2008 R2 Enterprise Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows 2000 Server running Terminal Services with Citrix MetaFrame Presentation Server 4.0, Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5
Novell Operating Systems Supported Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64)
Other Operating Systems Supported Virtually any platform supporting TCP/IP
Electrical & Operation
ENERGY STAR Yes
ENERGY STAR Typical Electricity Consumption TEC: 0.57 kilowatt-hours per week
Noise Level
Operating:
14 dBA (Idle)
53 dBA (Print)
52 dBA (Copy)
44 dBA (Scan)
Duplex Print Noise Level Operating: 54 dBA
Average Power
0.2 watts (Hibernate Mode)
1.3 watts (Sleep Mode)
29 watts (Ready Mode)
587 watts (Printing)
Specified Operating Environment Altitude: 0 - 2900 metres
Humidity: 15 to 80% Relative Humidity
Temperature: 10 to 32.2°C (50 to 90°F)
Product Certifications ENERGY STAR, Blue Angel RAL-UZ 219, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, UL 60950-1, FCC Class A, cUL CAN/CSA-C22.2 60950-1, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62368-1, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class A, EN 55035, UL), EFTA (CE), KCC, CCC, CECP, CEL, UL-AR, KC mark, UL GS mark, UCRF, EC 1275, Mopria Certified
UNSPSC Code 43212110
Country of Origin China (PRC), Mexico
License/Agreement Terms Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.
Warranties
Product Warranty 1-Year Onsite Service
|
