Product Summary:
 Up to 47ppm Mono Print
Up to Res 1200 x 1200 dpi
650 Sheet Input Tray
10.9cm Touch Screen + eSF
175K Pages Monthly Duty Cycle
USB, Network & Wireless
One Year Limited Warranty
Product Description:
With exceptional performance and secure design, the MS632dwe delivers enhanced productivity of up to 47 pages per minute* and a toner yield of up to 31,000 pages**. Engineered for long life with environmental certifications and advanced power management, this efficient model offers many sustainability benefits. Fast time to first print, superior print quality and easy-to-use touch screen. Our sophisticated, IoT-ready printers are loaded with sensors that continuously monitor hundreds of data points that provide added benefits, like predictive support and automatic supplies replenishment, when they are connected to Lexmark Cloud Services. With the large, buttonless touch screen, the user can perform tasks intuitively.
General Specs
Part no. 38S0541
Print Technology Black & White Laser Printer
Function Printing
Trusted Platform Module (TPM)1
Workgroup Size Medium Workgroup
Display Lexmark e-Task 10.9 cm colour touch screen with audible feedback
Media Sizes Supported A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope
Included Paper Handling 100-Sheet Multipurpose Feeder, 250-Sheet Output Bin, Integrated Duplex, 550-Sheet Input
Standard Ports Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), 802.11b/g/n/ac + BLE
Size (mm - H x W x D) 307.7 x 399 x 389.4 mm
Weight 15.2 kg
Packaged Size (mm - H x W x D) 422 x 470 x 430 mm
Packaged Weight, kg 17.2 kg
Printing
Print Speed Up to: Black: 47 ppm2 (A4)
Print Speed Duplex Up to: Black: 24 spm2 (A4)
Time to First Page As fast as: Black: 6 seconds
Print Resolution Black: 1200 x 1200 dpi, 1200 IQ (1200 x 600 dpi)
Duplex 2-sided: Integrated Duplex
Printable Area metric: 4.2 mm of the top, bottom, right, and left edges (within)
Paper Handling
Media Types Supported Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide
Number of Paper Inputs Standard: 2 Maximum: 5
Paper Input Capacity
Standard: 650 pages 75 gsm bond
Maximum: 2300 pages 75 gsm bond
650 pages 75 gsm bond
Paper Output Capacity Up to: Standard: 250 pages 75 gsm bond Maximum: 250 pages 75 gsm bond
Paper Weight Range Supported gsm:
60 - 120 gsm (Standard Tray)
60 - 216 gsm (Multipurpose Feeder)

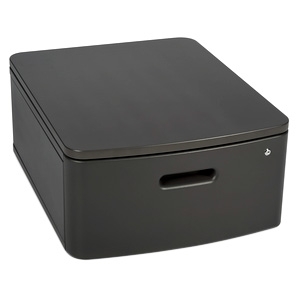

Optional Paper Handling 550-Sheet Lockable Tray, 250-Sheet Tray, 550-Sheet Tray
Recommended Monthly Page Volume 2,000 - 20,000 pages
Maximum Monthly Duty Cycle Up to 175,000 pages per month
Cartridges & Imaging

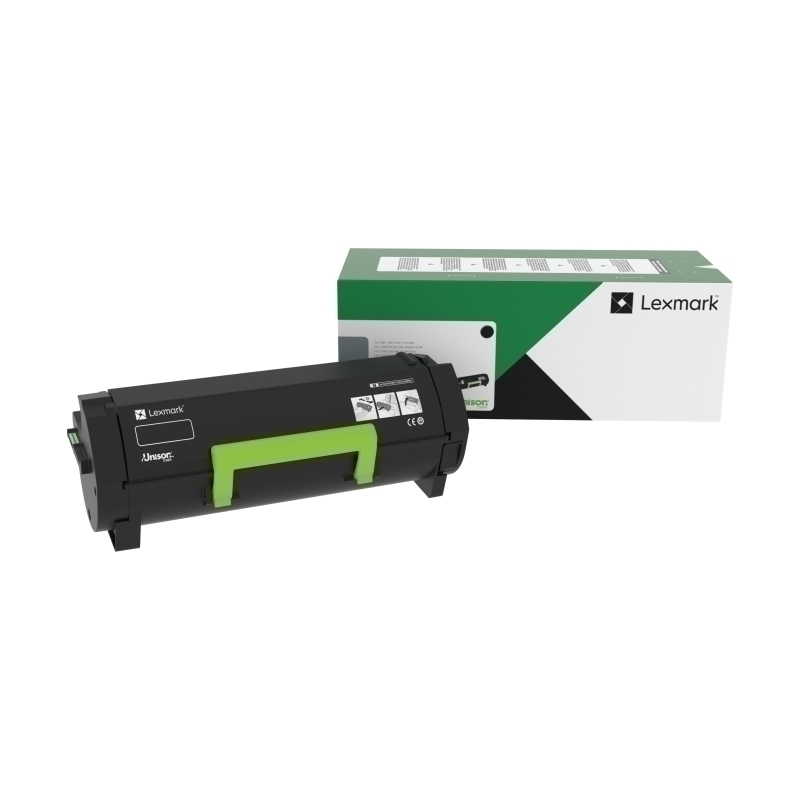

Laser Cartridge Yields up to: 31,0005-page Black Cartridge

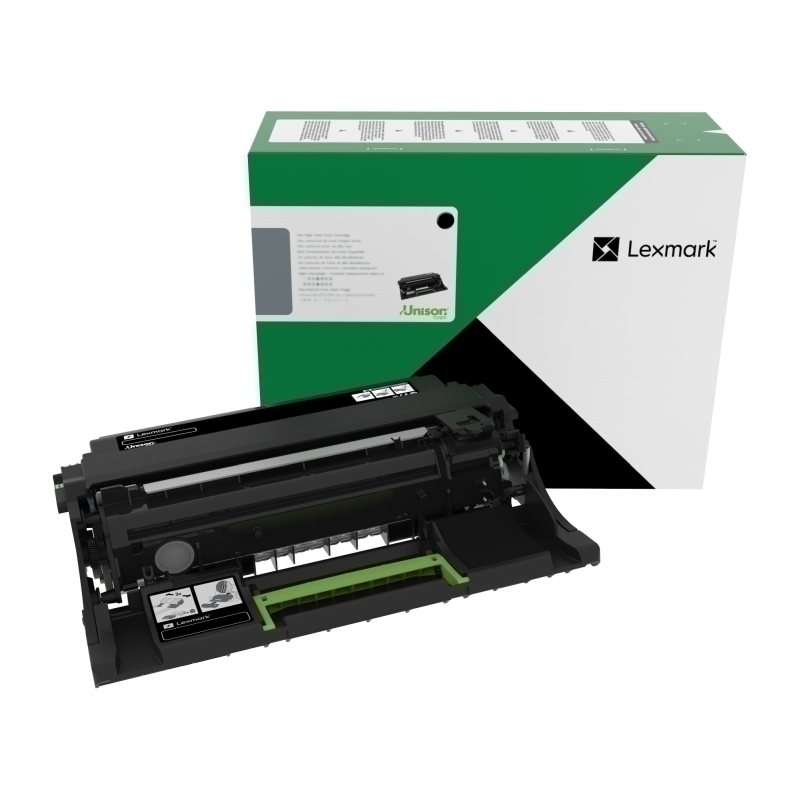

Imaging Unit Estimated Yield Up to: 75,000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
Cartridge(s) Shipping with Product 5,0005-page Return Program Toner Cartridge
Replacement Cartridges: Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.
In the Box

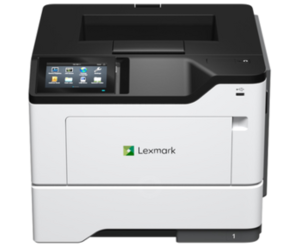

Lexmark MS632dwe mono laser printer.
Software and Documentation CD
Worldwide Printer Setup Sheet (wordless)
Up to 75,000 pages** return program imaging unit.
QR Code Setup Sheet
Power Cable (Country Dependent)
Worldwide Safety Stability Sheet
Worldwide Safety Information Sheet
Warranty Information (region/country dependent)
Up to 5,000 pages* starter return program toner cartridge.
Hardware
Processor Speed Dual Core, 1 GHz
Memory Standard: 1024 MB Maximum: 1024 MB
Hard Disk Intelligent Storage Drive available; Magnetic Hard Disk available
Printer Languages Standard:
PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets 2 PCL 5/6 bitmap fonts, 94 scalable PCL 5/6 fonts, 163 scalable PostScript fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display Yes
Connectivity
Ethernet Network Yes
Wireless Yes
Network Protocol Support IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP
Network Printing Methods FTP, Pull Printing, Thin Print, Microsoft Web Services WSD, Telnet, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP
Network Security SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown
Optional Local Ports Internal 1284-B Bidirectional Parallel, Internal RS-232C serial
Optional Network Ports MarkNet N8230 Fiber Ethernet Print Server
Wireless Network WEP Encryption (64- and 128-bit key), 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, WPA2™ - Personal
Supported Operating Systems
Microsoft Windows Operating Systems Supported Windows Server 2008 x64 running Terminal Services, Windows 11, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows Server 2022, Windows Server 2008, Windows 8 x64, Windows Server 2012, Windows Server 2003 x64, Windows Server 2003, Windows Server 2012 R2, Windows Server 2003 x64 running Terminal Services, Windows Server 2003 running Terminal Services, Windows 10, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows 2000 Server running Terminal Services, Windows Server 2008 R2, Windows 7 x64, Windows Server 2016, Windows XP x64, Windows Me, Windows XP, Windows Vista x64, Windows 2000, Windows Server 2019, Windows NT (4.00/4.00 Server), Windows Vista, Windows 98 2nd Edition, Windows 7
Apple Operating Systems Supported Support is provided through AirPrint and AirScan only
Android Operating System Support Support is provided through Mopria® Print Service and Mopria Scan.
Linux Operating Systems Supported OpenSUSE 15.1, Red Hat Linux 8.3, Debian 9.4, Red Hat Linux 7.9, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 12 SP5, Fedora 33, Fedora 32, Debian 10, Ubuntu 20.04, Ubuntu 18.04 LTS, OpenSUSE 15.2
Citrix MetaFrame Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64, Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0, Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5, Microsoft Windows Server 2008 R2 Standard Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2008 R2 Enterprise Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows 2000 Server running Terminal Services with Citrix MetaFrame Presentation Server 4.0, Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5
Novell Operating Systems Supported Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64)
Other Operating Systems Supported Virtually any platform supporting TCP/IP
Electrical & Operation
ENERGY STAR Yes
ENERGY STAR Typical Electricity Consumption TEC: 0.61 kilowatt-hours per week
Noise Level Operating:
14 dBA (Idle)
56 dBA (Print)
Duplex Print Noise Level Operating: 55 dBA
Average Power 0.1 watts (Hibernate Mode)
1 watts (Sleep Mode)
7.7 watts (Ready Mode)
669 watts (Printing)
Specified Operating Environment Temperature: 10 to 32°C (50 to 90°F)
Altitude: 0 - 2896 metres
Humidity: 15 to 80% Relative Humidity
Product Certifications ENERGY STAR, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62368-1 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55032 Class B, UL), EFTA (CE), KCC, CCC, CECP, CEL, A-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, ISO 532B, ECMA-370, TED, SII, TER, Mopria Certified
UNSPSC Code 43212105
Country of Origin Rest of World - PRC, North America & TAA Compliant - Mexico
License/Agreement Terms Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.
Warranties
Product Warranty 1-Year Advanced Exchange
|
Download .pfd brochure for Lexmark MS632dwe A4 Mono Laser Printer
